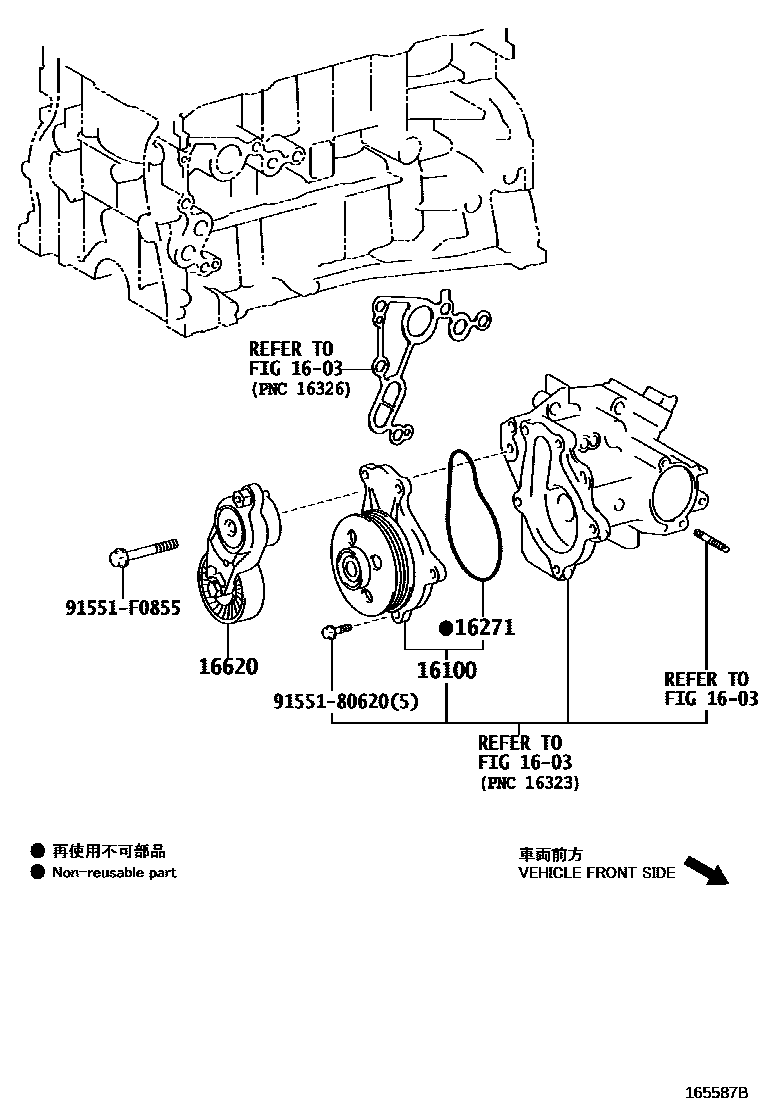

WATER PUMP

0001 1 0002 1 0003 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-39565i3ZRFAE..ZSU6#201312-201705

main16100-39575i2ARFXE..AVU65201401-201705

main16100-39595i8ARFTS..ASU6#201705

16271GASKET, WATER PUMP

main16271-36030i2ARFXE..AVU65201705

main16271-36040i8ARFTS..ASU6#201705

main16271-37030i3ZRFAE..ZSU6#201705

16620TENSIONER ASSY, V-RIBBED BELT

main16620-36010i2ARFXE..AVU65201401-201402

main16620-36011i2ARFXE..AVU65201402-201509

main16620-36012i2ARFXE..AVU65201510-201705

main16620-36013i2ARFXE..AVU65201801

main16620-37011i3ZRFAE..ZSU6#201312-201506

main16620-37030i3ZRFAE..ZSU6#201705

9155180620

main91551-80620

91551F0855

main91551-F0855

6 parts on this diagram · 3 diagrams in section
