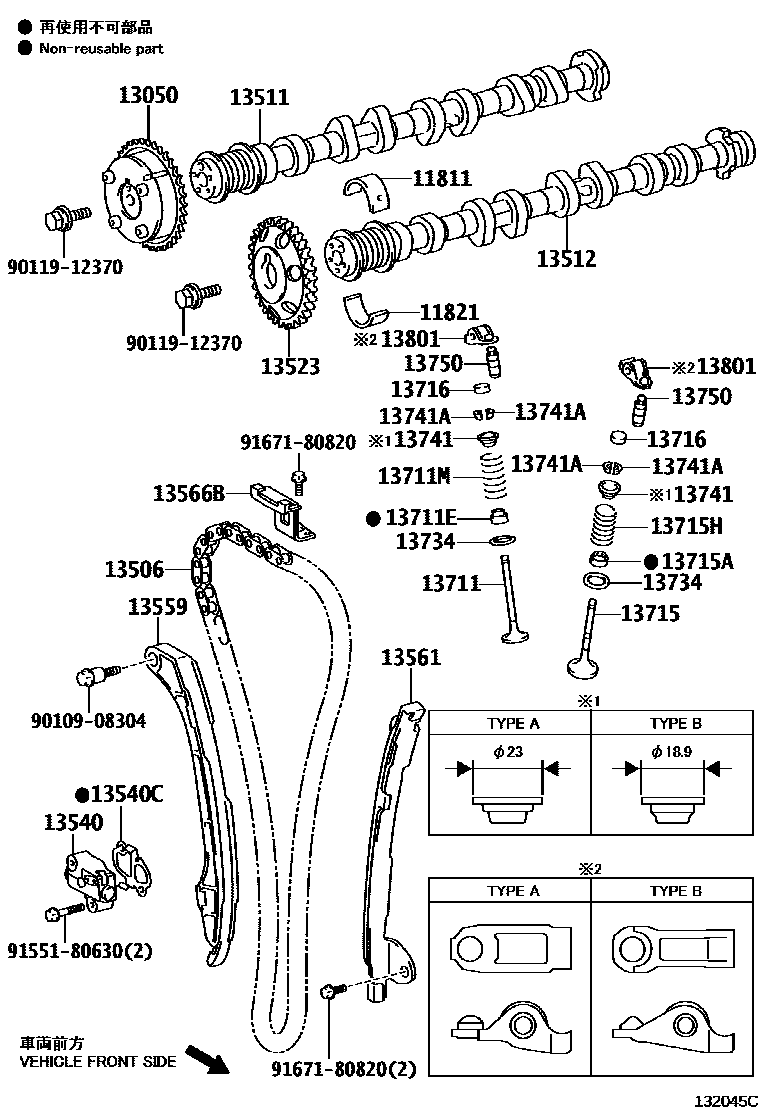

CAMSHAFT & VALVE

0001 1 0002 1 0003 1

11811BEARING, CAMSHAFT, NO.1

main11811-36010i2ARFXE..AVU65201401-201705

11821BEARING, CAMSHAFT, NO.2

main11821-36010i2ARFXE..AVU65201401-201705

13050GEAR ASSY, CAMSHAFT TIMING

main13050-36020i2ARFXE..AVU65201401-201705

main13050-36040i8ARFTS..ASU6#201705

main13050-37050i3ZRFAE..ZSU6#201312-201705

13506CHAIN SUB-ASSY

main13506-36010i2ARFXE..AVU65201401-201407

main13506-36030i2ARFXE..AVU65201408-201705

main13506-37060i3ZRFAE..ZSU6#201312-201705

13511CAMSHAFT

main13501-36030i2ARFXE..AVU65201401-201705

main13501-36060i8ARFTS..ASU6#201705

13512CAMSHAFT, NO.2

main13502-36020i2ARFXE..AVU65201401-201705

main13502-36050i8ARFTS..ASU6#201705

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-36020i2ARFXE..AVU65201401-201705

13540TENSIONER ASSY, CHAIN, NO.1

main13540-36031i8ARFTS..ASU6#201705-201812

sub13540-36032

main13540-36032i8ARFTS..ASU6#201901

main13540-36040i2ARFXE..AVU65201401-201806

sub13540-36041

main13540-36041i2ARFXE..AVU65201807

main13540-37030i3ZRFAE..ZSU6#201312-201705

13540CGASKET(FOR CHAIN TENSIONER)

main13552-36010i2ARFXE..AVU65201401-201705

main13552-36020i8ARFTS..ASU6#201705

main13552-37010i3ZRFAE..ZSU6#201312-201705

13559SLIPPER, CHAIN TENSIONER

main13559-36010i2ARFXE..AVU65201401-201409

main13559-36030i8ARFTS..ASU6#201705

main13559-36040i2ARFXE..AVU65201409-201705

main13559-37030i3ZRFAE..ZSU6#201312-201705

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-36010i2ARFXE..AVU65201401-201409

main13561-36021i8ARFTS..ASU6#201705

main13561-36030i2ARFXE..AVU65201409-201705

main13561-37040i3ZRFAE..ZSU6#201312-201807

sub13561-37060

main13561-37060i3ZRFAE..ZSU6#201808

13566BGUIDE, TIMING CHAIN

main13566-36011i2ARFXE,8ARFTS..ASU6#,AVU65201401-201705

13711VALVE, INTAKE

main13711-36060i2ARFXE..AVU65201401-201705

main13711-36080i8ARFTS..ASU6#201705

main13711-37020i3ZRFAE..ZSU6#201312-201705

13711ESEAL, INTAKE VALVE STEM OIL

main90913-02101i2ARFXE..AVU65201401-201705

main90913-02126i8ARFTS..ASU6#201705

13711MSPRING, COMPRESSION(FOR INTAKE VALVE)

main90501-31032i8ARFTS..ASU6#201705

main90501-34016i2ARFXE..AVU65201401-201505

main90501-34022i2ARFXE..AVU65201505-201705

13715VALVE, EXHAUST

main13715-36020i2ARFXE..AVU65201401-201705

main13715-36040i8ARFTS..ASU6#201705-201708

main13715-36041i8ARFTS..ASU6#201708

main13715-37030i3ZRFAE..ZSU6#201312-201705

13715ASEAL, EXHAUST VALVE STEM OIL

main90913-02112i2ARFXE..AVU65201401-201705

main90913-02127i8ARFTS..ASU6#201705-201709

main90913-02131i8ARFTS..ASU6#201710-202004

13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)

main90501-32070i8ARFTS..ASU6#201705-201908

sub90501-33031

main90501-33031i8ARFTS..ASU6#201909

main90501-34016i2ARFXE..AVU65201401-201505

main90501-34022i2ARFXE..AVU65201505-201705

13716CAP, VALVE STEM

main13716-75020i3ZRFAE..ZSU6#201312-201705

13734SEAT, VALVE SPRING

main13734-62020i3ZRFAE..ZSU6#201312-201705

13741RETAINER, VALVE SPRING

main13741-20021i3ZRFAE..ZSU6#201312-201405

main13741-20021i3ZRFAE..ZSU6#201401-201505

main13741-36010i8ARFTS..ASU6#201405-201705

main13741-36010i3ZRFAE..ZSU6#201408-201705

13741ALOCK, VALVE SPRING RETAINER

main90913-03028i2ARFXE..AVU65201312-201705

13750ADJUSTER ASSY, VALVE LASH

main13750-21010i3ZRFAE..ZSU6#201408-201705

main13750-31030i2ARFXE..AVU65201401-201505

main13750-36020i2ARFXE..AVU65201505-201705

main13750-36030i8ARFTS..ASU6#201705

main13750-75020i3ZRFAE..ZSU6#201312-201408

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-23011i2ARFXE..AVU65201401-201505

main13801-23011i3ZRFAE..ZSU6#201312-201404

main13801-36020i3ZRFAE..ZSU6#201405-201705

main13801-36020i2ARFXE..AVU65201505-201705

9010908304

main90109-08304

9011912370

main90119-12370

9155180630

main91551-80630

9167180820

main91671-80820
