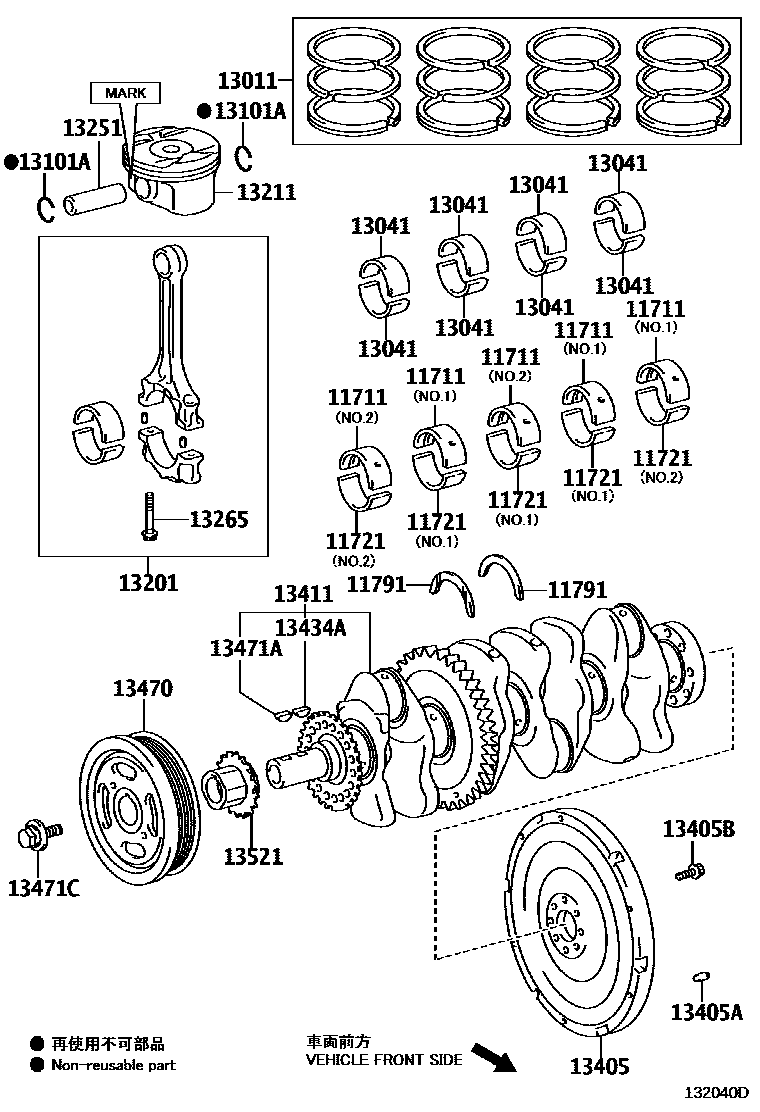

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
11721BEARING, CRANKSHAFT, NO.2
11791WASHER, CRANKSHAFT THRUST, UPPER
13041BEARING, CONNECTING ROD
13101PISTON SUB-ASSY, W/PIN
13101ARING, HOLE SNAP(FOR PISTON PIN)
13211PISTON
13251PIN, PISTON
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
13405BBOLT, FLYWHEEL SETTING
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
13470PULLEY ASSY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
21 parts on this diagram · 3 diagrams in section
