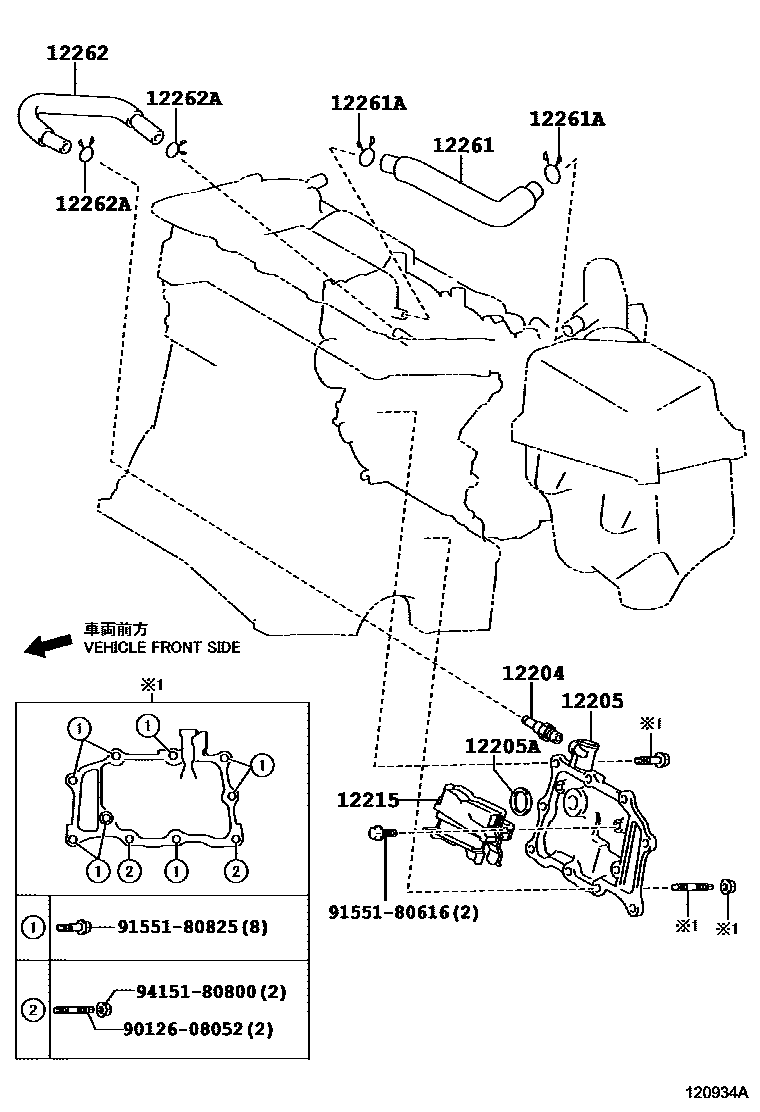

VENTILATION HOSE

0001 1 0002 1 0003 1

12204VALVE SUB-ASSY, VENTILATION

main12204-36020i2ARFXE..AVU65201401-201705

main12204-36050i8ARFTS..ASU6#201705

main12204-37010i3ZRFAE..ZSU6#201705

12205CASE SUB-ASSY, VENTILATION

main12205-36010i2ARFXE..AVU65201401-201705

12205ARING, O(FOR VENTILATION CASE)

main12273-36010i2ARFXE..AVU65201401-201705

12215SEPARATOR, CASE

main12215-36010i2ARFXE..AVU65201401-201705

12261HOSE, VENTILATION

main12261-36060i2ARFXE..AVU65201401-201705

main12261-36090i8ARFTS..ASU6#201705

main12261-37040i3ZRFAE..ZSU6#201705

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-22005i3ZRFAE..ZSU6#201705

main90467-15120i3ZRFAE..ZSU6#201312-201705

main90467-21004×2i2ARFXE..AVU65201401-201705

main96137-52501i8ARFTS..ASU6#201705

12262HOSE, VENTILATION, NO.2

main12262-36070i8ARFTS..ASU6#201705

main12262-36080i2ARFXE..AVU65201401-201705

main12262-37020i3ZRFAE..ZSU6#201312-201705

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-16004i8ARFTS..ASU6#201705

main90467-16035×2i2ARFXE..AVU65201401-201705

main90467-21004×2i3ZRFAE..ZSU6#201312-201705

9012608052

main90126-08052

9155180616

main91551-80616

9155180825

main91551-80825

9415180800

main94151-80800

12 parts on this diagram · 3 diagrams in section
