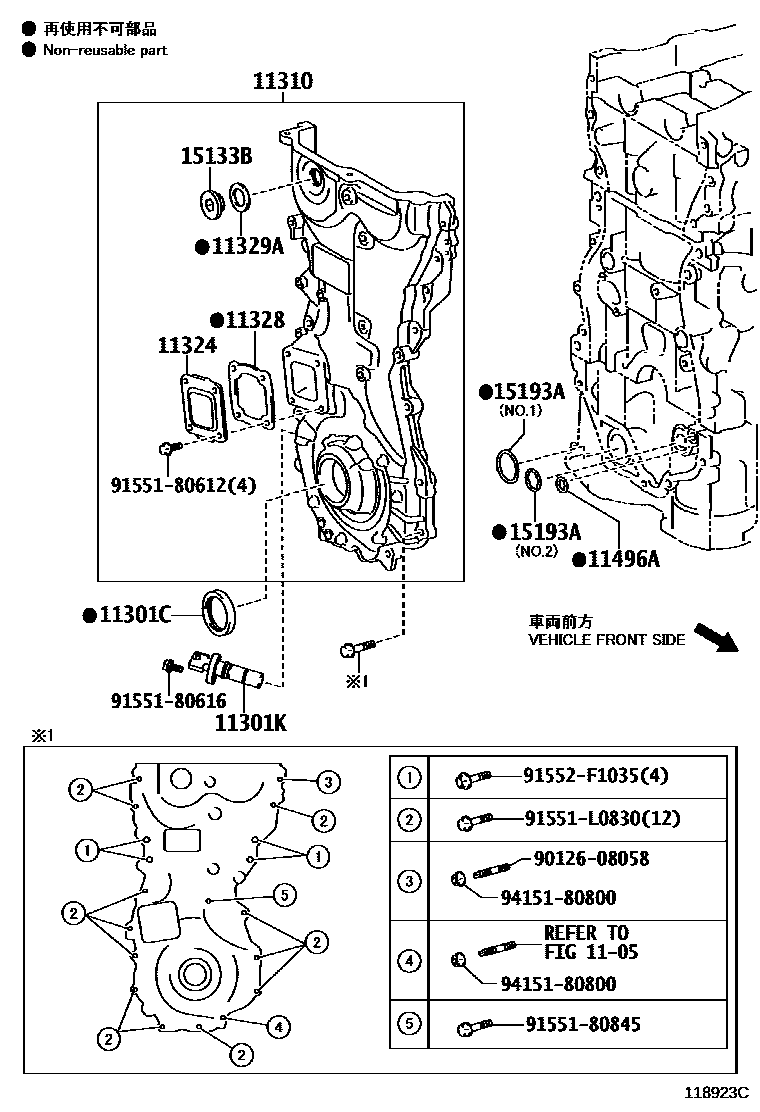

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

1105

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-40042i2ARFXE..AVU65201408-201705

main90311-42051i2ARFXE..AVU65201401-201408

main90311-42061i2ARFXE..AVU65201903

11301KSENSOR, CRANK POSITION

main90919-05070i2ARFXE..AVU65201401-201705

main90919-05088i8ARFTS..ASU6#201705

11310COVER ASSY, TIMING CHAIN

main11310-36020i2ARFXE..AVU65201401-201705

main11310-36060i8ARFTS..ASU6#201705

11324PLATE, TIMING CHAIN COVER

main11324-36010i2ARFXE..AVU65201401-201705

main11324-36020i8ARFTS..ASU6#201705

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-36020i2ARFXE..AVU65201705

main11328-36030i8ARFTS..ASU6#201705

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-36010i2ARFXE..AVU65201401-201502

main11329-36020i2ARFXE..AVU65201503-201705

11496AGASKET, OIL HOLE COVER

main11496-36010i2ARFXE..AVU65201401-201705

main11496-36020i8ARFTS..ASU6#201705

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-36020i2ARFXE..AVU65201401-201705

15193AGASKET, OIL PUMP

main15193-36010i2ARFXE..AVU65201401-201705

main15197-36010i2ARFXE..AVU65201401-201705

main15197-36020i8ARFTS..ASU6#201705

9012608058

main90126-08058

9155180612

main91551-80612

9155180616

main91551-80616

9155180845

main91551-80845

91551L0830

main91551-L0830

91552F1035

main91552-F1035

9415180800

main94151-80800

17 parts on this diagram · 3 diagrams in section
