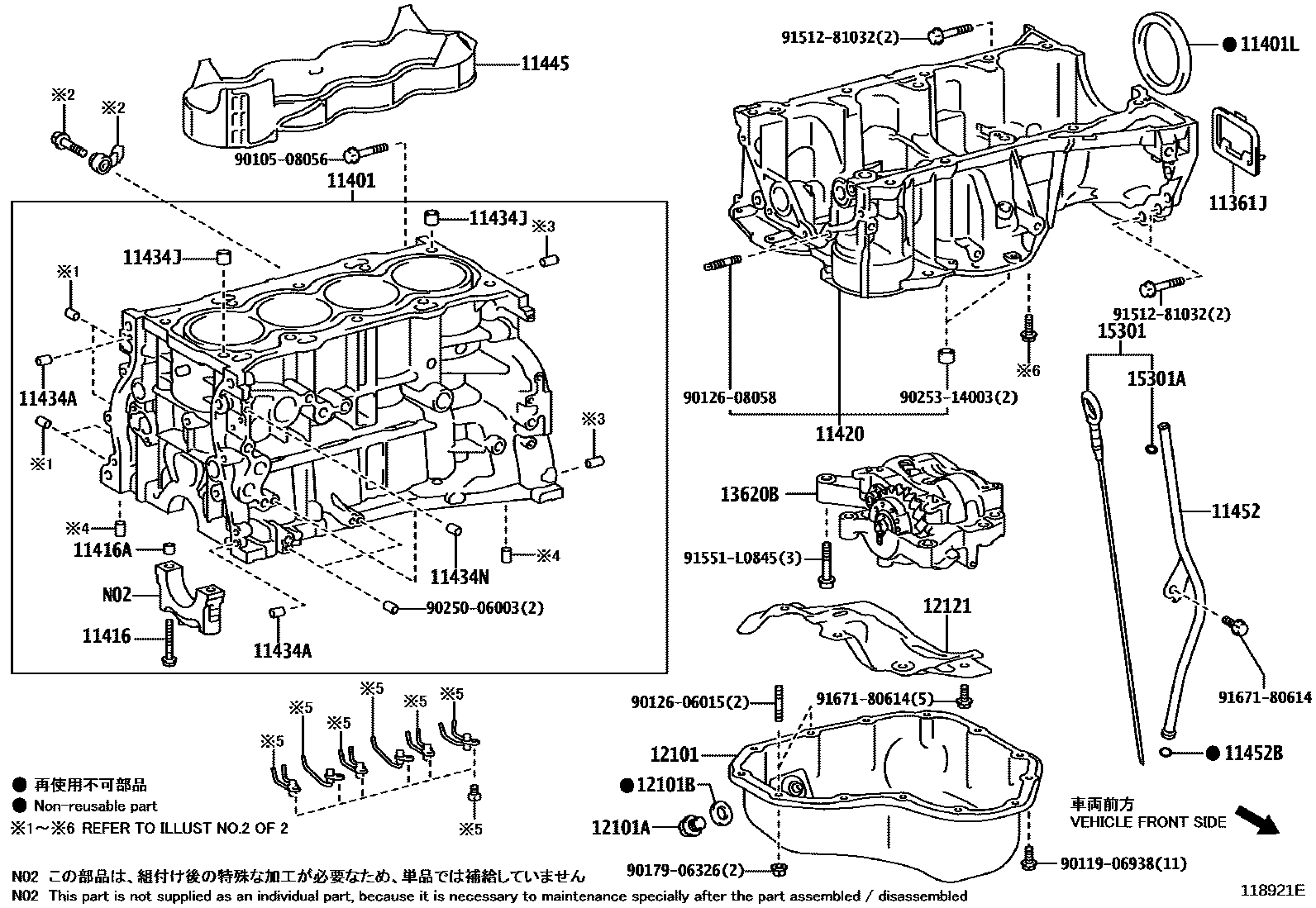

CYLINDER BLOCK

0001 1���������� 0002 1������������ 0003 1���������� 0004 1������������(1/2) 0005 1������������(2/2) 0006 1 0007 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21011i3ZRFAE..ZSU6#201312-201705

main11361-28010i2ARFXE..AVU65201401-201705

11401BLOCK SUB-ASSY, CYLINDER

main11410-39035i3ZRFAE..ZSU6#201312-201506

sub11410-39036

main11410-39036i3ZRFAE..ZSU6#201506-201612

sub11410-39037

main11410-39037i3ZRFAE..ZSU6#201612-201705

sub11410-39038

main11410-39125i2ARFXE..AVU65201401-201405

sub11410-39126

sub90250-06003

main11410-39126i2ARFXE..AVU65201405-201705

main11410-39195i8ARFTS..ASU6#201705

sub11410-39255

11401LSEAL, ENGINE REAR OIL

main90311-78002i3ZRFAE..ZSU6#201312-201705

main90311-89013i2ARFXE..AVU65201401-201408

sub90311-89015

main90311-89014i8ARFTS..ASU6#201705

main90311-89015i2ARFXE..AVU65201408-201705

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02154i8ARFTS..ASU6#201705-201708

main90910-02163i3ZRFAE..ZSU6#201312-201705

main90910-02173i2ARFXE..AVU65201401-201705

main90910-02197i8ARFTS..ASU6#201709

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017i2ARFXE..AVU65201401-201705

main90253-14003i8ARFTS..ASU6#201705

11420CRANKCASE ASSY, STIFFENING

main11420-36020i2ARFXE..AVU65201401-201705

main11420-36051i8ARFTS..ASU6#201705

main11420-37020i3ZRFAE..ZSU6#201312-201705

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i3ZRFAE..ZSU6#201312-201705

main90250-06003i2ARFXE..AVU65201401-201705

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13001i3ZRFAE..ZSU6#201312-201705

main90253-15001i2ARFXE..AVU65201401-201705

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003i2ARFXE..AVU65201401-201705

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-36010i2ARFXE..AVU65201401-201705

main11445-36020i8ARFTS..ASU6#201705

11452GUIDE, OIL LEVEL GAGE

main11452-36040i8ARFTS..ASU6#201705

main11452-36050i2ARFXE..AVU65201401-201705

main11452-37020i3ZRFAE..ZSU6#201312-201705

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i3ZRFAE..ZSU6#201312-201705

main96723-19010i8ARFTS..ASU6#201705

main96741-19010i2ARFXE..AVU65201401-201705

12101PAN SUB-ASSY, OIL

main12101-36050i2ARFXE..AVU65201401-201705

main12101-36080i8ARFTS..ASU6#201705

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i3ZRFAE..ZSU6#201312-201705

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i3ZRFAE..ZSU6#201312-201705

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-36030i2ARFXE..AVU65201401-201705

main12121-36060i8ARFTS..ASU6#201705-201811

main12121-36061i8ARFTS..ASU6#201811

13620BBALANCER ASSY, ENGINE

main13620-36020i2ARFXE..AVU65201401-201501

main13620-36040i8ARFTS..ASU6#201705-201706

sub13620-36041

main13620-36041i8ARFTS..ASU6#201706

main13620-36060i2ARFXE..AVU65201501-201705

15301GAGE SUB-ASSY, OIL LEVEL

main15301-36031i2ARFXE..AVU65201401-201912

sub15301-36032

main15301-36032i2ARFXE..AVU65202001

main15301-36060i8ARFTS..ASU6#201705

main15301-37020i3ZRFAE..ZSU6#202003

main15301-37040i3ZRFAE..ZSU6#201312-202002

sub15301-37020

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i2ARFXE..AVU65201401-201705

9010508056

main90105-08056

9011906938

main90119-06938

9012606015

main90126-06015

9012608058

main90126-08058

9017906326

main90179-06326

9025006003

main90250-06003

9025314003

main90253-14003

9151281032

main91512-81032

91551L0845

main91551-L0845

9167180614

main91671-80614

29 parts on this diagram · 7 diagrams in section
