STANDARD TOOL

09110JACK ASSY

main09111-0E011iAVU65201401-201602

main09111-0R030iZSU6#201605-201705

main09111-0W140iZSU6#201312-201604

sub09111-0R030

main09111-0W150iAVU65201603-201705

sub09111-0W151

09113HANDLE, JACK

main09113-42030iAVU65,ZSU6#201312-201705

09120BAG, TOOL

main09120-10040iAVU65,ZSU6#201312-201705

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-42010iAVU65,ZSU6#201312-201705

09184STOPPER, WHEEL

main09184-00010

42606BREPAIR KIT, TUBELESS TIRE

main42606-50040iAVU65,ZSU6#201312-202005

44890DCOMPRESSOR ASSY, AIR

main44890-48030iAVU65,ZSU6#201312-201705

sub44890-42030

main44890-48030iASU6#,AVU65,ZSU6#201705

sub44890-42030

main44890-48030iASU6#,AVU65,ZSU6#201705

sub44890-42030

51960HOOK ASSY, FRONT

main51961-48060iAVU65,ZSU6#201312-201705

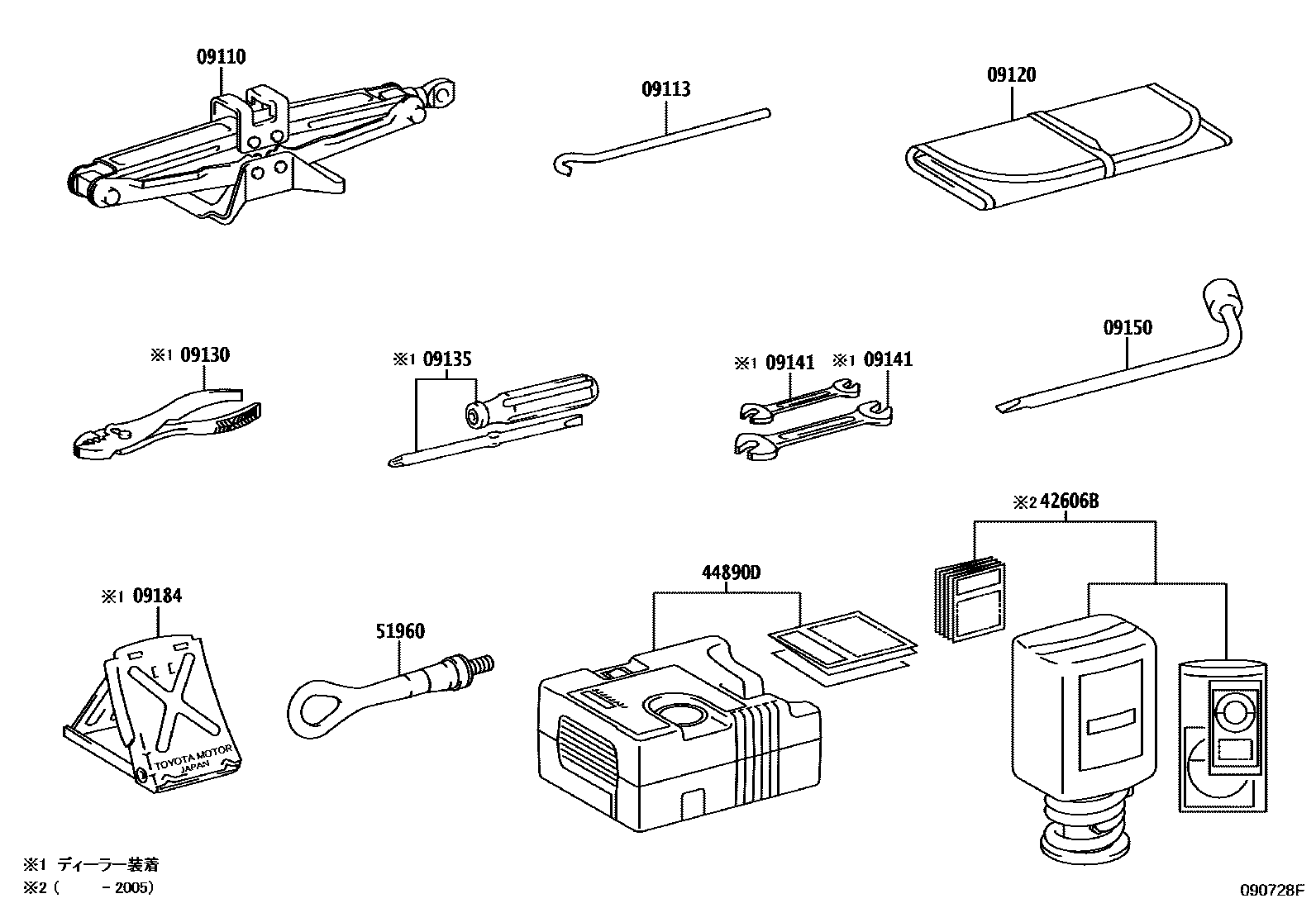

11 parts on this diagram · 1 diagram in section
