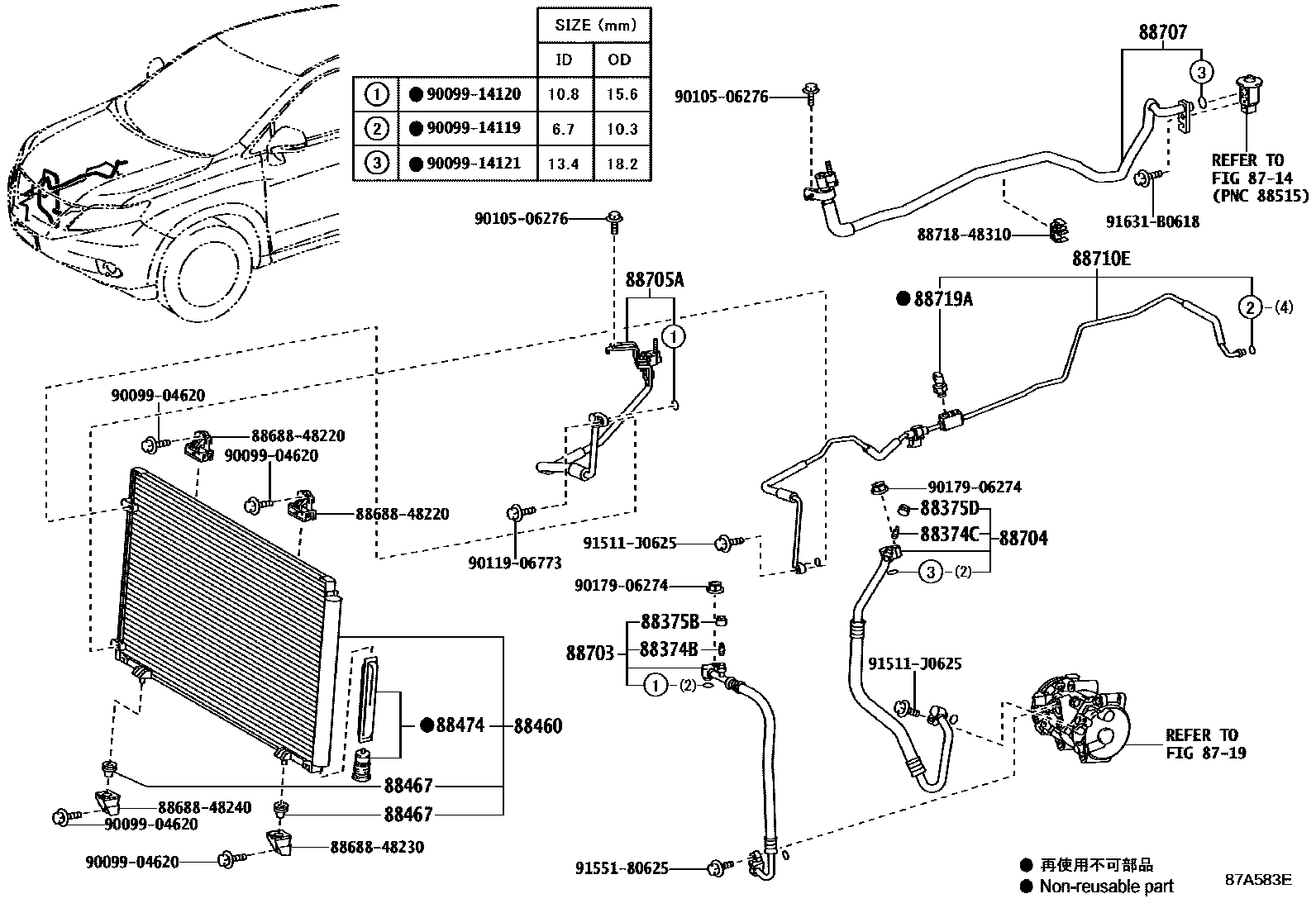

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88460CONDENSER ASSY, COOLER
88467CUSHION, COOLER CONDENSER, NO.1
88474DRYER, COOLER
88703HOSE SUB-ASSY, DISCHARGE
88705ATUBE SUB-ASSY, DISCHARGE
88707PIPE SUB-ASSY, SUCTION
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88719ASENSOR, AIR CONDITIONER PRESSURE
8868848220BRACKET, COOLER DIAPHRAGM
main88688-48220
8868848230BRACKET, COOLER DIAPHRAGM
main88688-48230
8868848240BRACKET, COOLER DIAPHRAGM
main88688-48240
8871848310PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-48310
9009904620
main90099-04620
9009914119
main90099-14119
9009914120
main90099-14120
9009914121
main90099-14121
9010506276
main90105-06276
9011906773
main90119-06773
9017906274
main90179-06274
91511J0625
main91511-J0625
9155180625
main91551-80625
91631B0618
main91631-B0618
29 parts on this diagram · 3 diagrams in section
