HEATING & AIR CONDITIONING - WATER PIPING

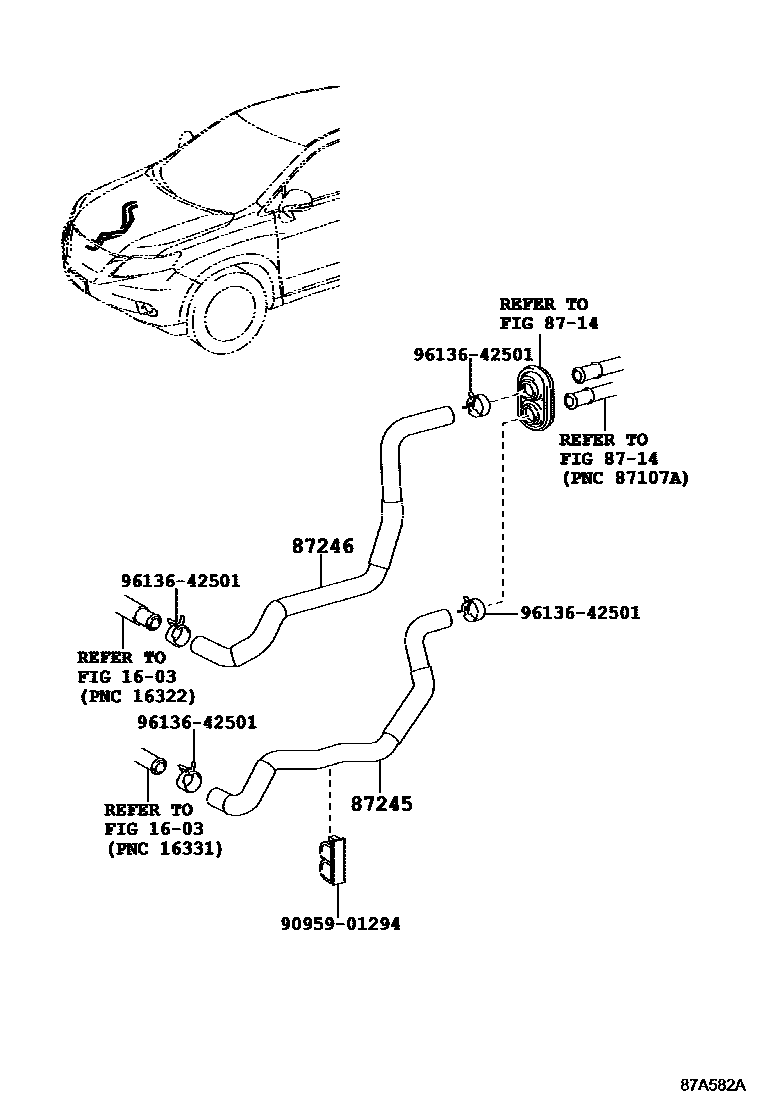

Parts diagram

1603

8714

87245HOSE, HEATER WATER, INLET

main87245-48C20i¥2,470200812-201203

main87245-48D10i¥2,840201008-201203

87246HOSE, HEATER WATER, OUTLET

main87245-48C30i¥2,700200812-201203

main87245-48D20i¥3,700201008-201203

9095901294

main90959-01294¥0

9613642501

main96136-42501¥200

6 parts on this diagram · 3 diagrams in section
