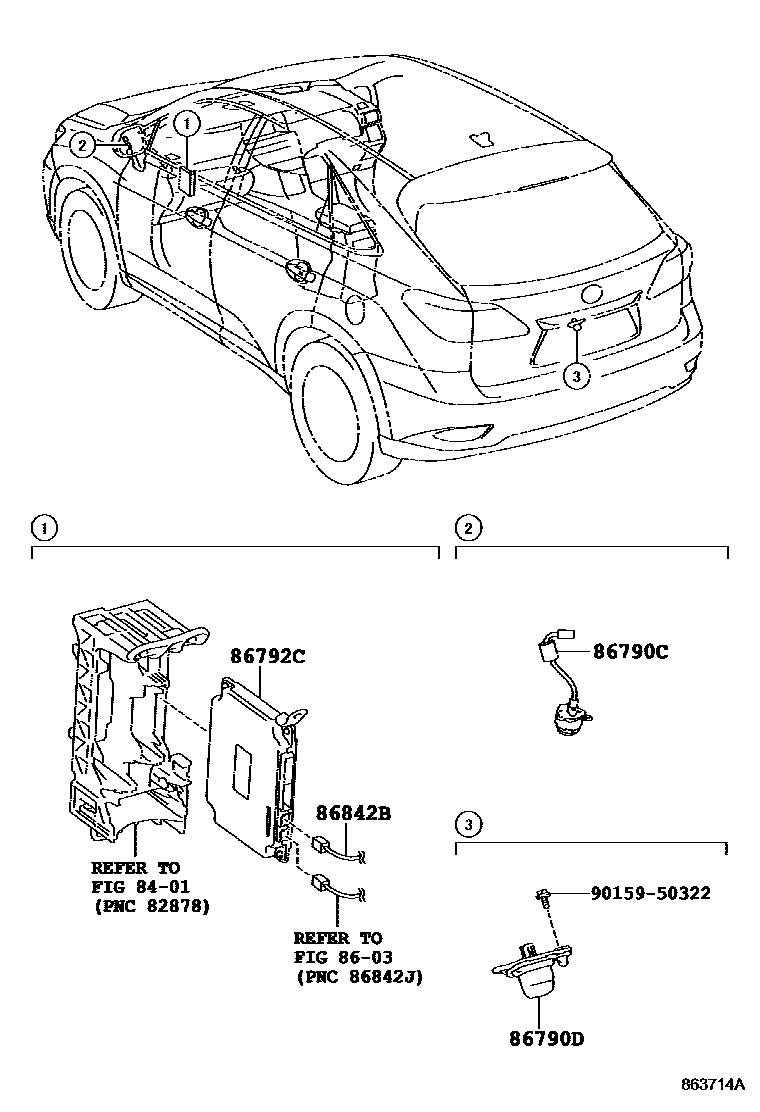

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1 0003 1 0004 1

8401

8603

86790CCAMERA ASSY, TELEVISION, SIDE

main86790-48100iAGL10,GGL1#,GYL1#200812-201203

86790DCAMERA ASSY, TELEVISION, RR

main86790-48090iGGL1#,GYL1#200812-200907

main86790-48091iAGL10,GGL1#,GYL1#200908-201203

sub86790-48092

main86790-48140iAGL10,GGL1#,GYL1#201203-201206

main86790-48141iAGL10,GGL1#,GYL1#201207-201308

main86790-48142iAGL10,GGL1#,GYL1#201308-201509

86792CCOMPUTER, PARKING ASSIST

main86792-48110supersedes 86792-48210iAGL10,GGL1#,GYL1#200812-201203

main86792-48310supersedes 86792-48320iAGL10,GGL1#,GYL1#201203-201509

86842BWIRE, NAVIGATION, NO.2

main86797-48060iAGL10,GGL1#,GYL1#200812-201203

9015950322

main90159-50322

7 parts on this diagram · 4 diagrams in section
