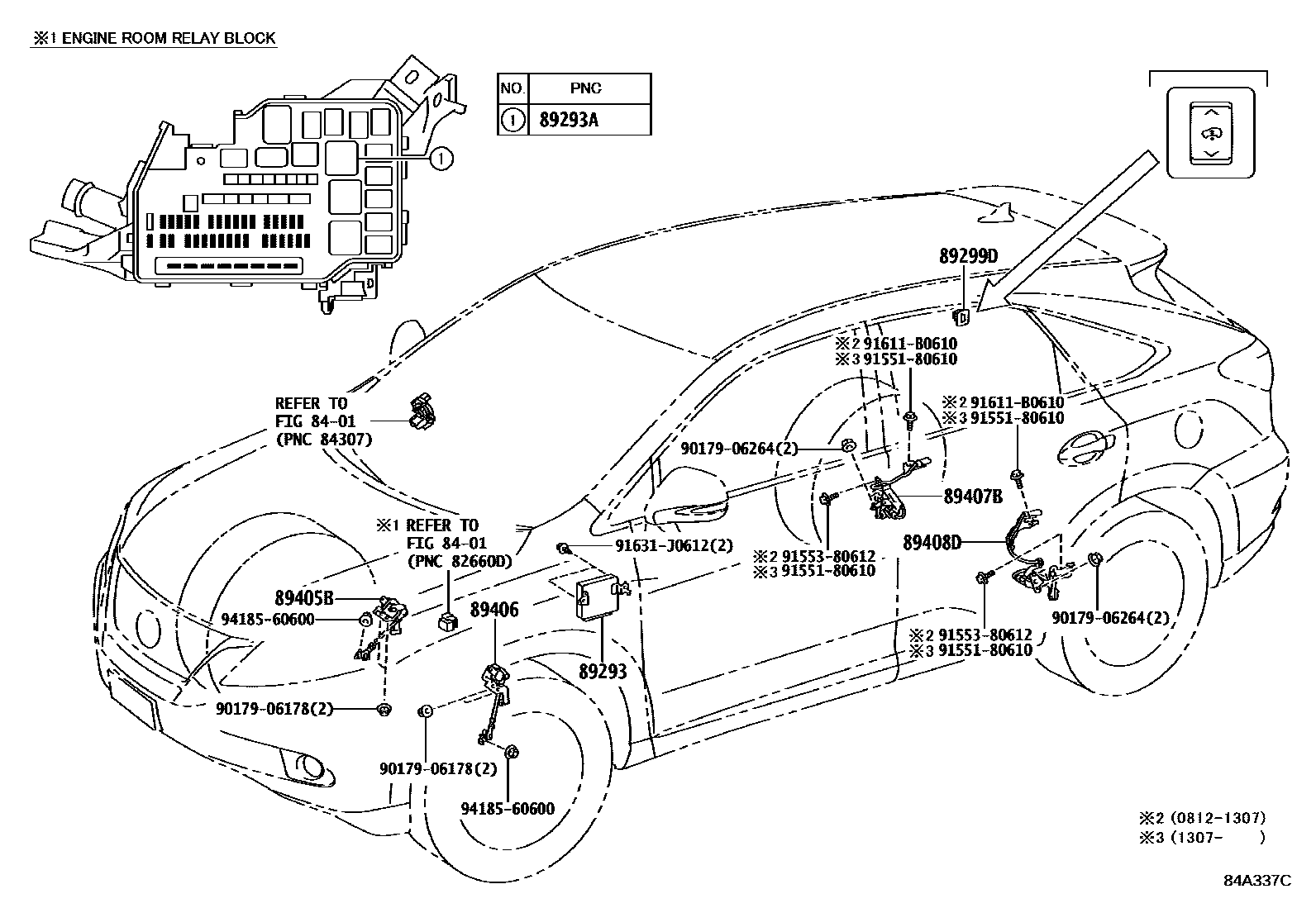

ELECTRONIC MODULATED SUSPENSION

0001 1 0002 1

8401

89293COMPUTER, SUSPENSION CONTROL

main89293-48030iGGL16200812-201203

main89293-48050iGYL16200903-201203

main89293-48051iGYL16201203

89293ARELAY, SUSPENSION CONTROL

main90987-02025iGGL16,GYL16200812-201509

89299SWITCH, SUSPENSION CONTROL

main89276-48020iGGL16,GYL16200812-201509

89299DSWITCH, SUSPENSION CONTROL, NO.2

main89276-48030-A0iGGL16,GYL16200812-201203

IVORY,TRIM0#

main89276-48030-B0iGYL16200903-201203

LT.GRAY,TRIM10,12

main89276-48030-B0iGGL16200812-201203

LT.GRAY,TRIM1#

main89276-48030-C0iGYL16200903-201203

BLACK,TRIM12,13,2#

main89276-48030-C0iGGL16200812-201203

BLACK,TRIM2#

main89276-48030-C0iGYL16201203

BLACK,TRIM1#,2#,3#,4#

89405BSENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH

main89405-48010iGGL16,GYL16200812-201203

89406SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH

main89406-48010iGGL16,GYL16200812-201203

89407BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-48060iGGL16,GYL16200812-201203

sub89407-48061

89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-48030iGGL16,GYL16200812-201203

9017906178

main90179-06178

9017906264

main90179-06264

9155180610

main91551-80610

9155380612

main91553-80612

91611B0610

main91611-B0610

91631J0612

main91631-J0612

9418560600

main94185-60600

16 parts on this diagram · 2 diagrams in section
