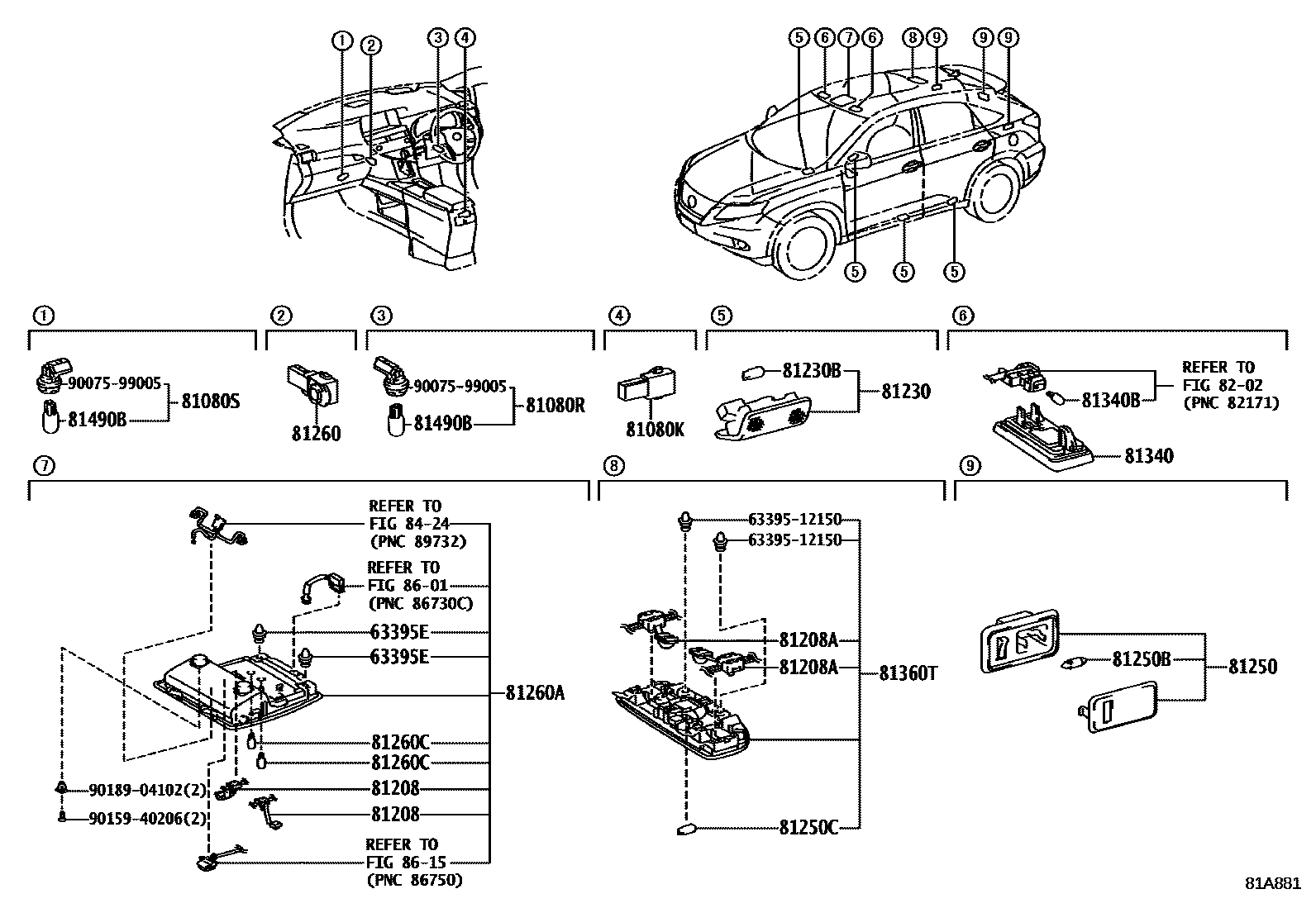

INTERIOR LAMP

63395ECLIP(FOR MAP LAMP)

main63395-12150iAGL10,GGL1#,GYL1#200812-201203

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-30010iAGL10,GGL1#,GYL1#200812-201509

81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-48080iAGL10,GGL1#,GYL1#200812-201509

81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-48080iAGL10,GGL1#,GYL1#200812-201509

81208LAMP SUB-ASSY, MAP

main81208-48080iAGL10,GGL1#,GYL1#200812-201203

81208ALAMP SUB-ASSY, MAP, NO.2

main81208-48070iAGL10,GGL1#,GYL1#200812-201203

81230LAMP ASSY, COURTESY

main81230-30200iAGL10,GGL1#,GYL1#201304-201509

main81230-47010iAGL10,GGL1#,GYL1#200812-201303

sub81230-30200

81230BBULB(FOR COURTESY LAMP)

main90981-12010iAGL10,GGL1#,GYL1#200812-201509

81250LAMP ASSY, ROOM, NO.2

main81250-48010iAGL10,GGL1#,GYL1#200812-201203

81250BBULB, ROOM LAMP, NO.2

main99132-13050iAGL10,GGL1#,GYL1#200812-201509

81250CBULB, SPOT LAMP

main90981-11062iAGL10,GGL1#,GYL1#200812-201509

81260LAMP ASSY, GLOVE BOX

main81080-22040iAGL10,GGL1#,GYL1#200812-201509

81260ALAMP ASSY, MAP

main81260-48330-A0iAGL10,GGL1#,GYL1#201203-201308

sub81260-48331

main81260-48330-B0iGGL15,GYL15201203-201308

sub81260-48331

main81260-48330-B0iGGL15,GYL15201203-201308

sub81260-48331

main81260-48330-C0iGGL15,GYL15201203-201308

sub81260-48331

main81260-48331-A0iAGL10,GGL1#,GYL1#201308-201509

main81260-48331-B0iAGL10,GGL10,GYL10201308-201509

main81260-48331-B0iAGL10,GGL10,GYL10201308-201509

main81260-48331-B0iAGL10,GGL10,GYL10201308-201509

main81260-48331-C0iAGL10,GGL10,GYL10201308-201509

main81260-48331-C0iGGL15,GYL15201308-201509

main81260-48340-A0iAGL10,GGL1#,GYL15201203-201308

sub81260-48341

main81260-48340-B0iAGL10,GGL10201203-201308

sub81260-48341

main81260-48340-B0iGGL15201203-201308

sub81260-48341

main81260-48340-B0iGGL15201203-201308

sub81260-48341

main81260-48340-C0iGGL15201203-201308

sub81260-48341

main81260-48340-C0iGYL15201203-201308

sub81260-48341

main81260-48341-A0iAGL10,GGL1#,GYL15201308-201509

main81260-48341-B0iAGL10,GGL10,GYL15201308-201509

main81260-48341-B0iAGL10,GGL10,GYL15201308-201509

main81260-48341-C0iAGL10,GGL10,GYL15201308-201509

main81260-48341-C0iAGL10,GGL10,GYL15201308-201509

main81260-48350-A0iAGL10,GGL1#,GYL1#201203-201308

IVORY,TRIM0#,40

sub81260-48351

main81260-48350-B0iGGL15,GYL15201203-201308

LT.GRAY,TRIM1#,2#,3#,40

sub81260-48351

main81260-48350-B0iAGL10,GGL10,GYL10,16201203-201308

LT.GRAY,TRIM10,20,30,40

sub81260-48351

main81260-48350-C0iGGL15,GYL15201203-201308

BLACK,TRIM11,21,22,31,41

sub81260-48351

main81260-48351-A0iAGL10,GGL1#,GYL1#201308-201509

IVORY,TRIM0#

main81260-48351-B0iGYL16201308-201509

LT.GRAY,TRIM1#,2#,3#,4#

main81260-48351-B0iGYL16201308-201509

LT.GRAY,TRIM10,20,30,40

main81260-48351-B0iGYL16201308-201509

LT.GRAY,TRIM1#,2#,30,4#

main81260-48351-C0iAGL10,GGL10,GYL10201308-201509

BLACK,TRIM32

main81260-48351-C0iAGL10,GGL10,GYL10201308-201509

BLACK,TRIM11,21,22,31,32,41

main81260-48450-A0iAGL10,GGL1#,GYL1#200812-201203

IVORY,TRIM0#

main81260-48450-B0iAGL10,GGL1#,GYL1#200812-201203

LT.GRAY,TRIM1#,2#

main81260-48510-A0iAGL10,GGL1#,GYL1#200812-201203

main81260-48510-B0iAGL10,GGL1#,GYL1#200812-201203

main81260-48560-A0iAGL10,GGL1#,GYL15200812-201203

main81260-48560-B0iAGL10,GGL1#,GYL15200812-201203

81260CBULB(FOR MAP LAMP)

main99132-12050iAGL10,GGL1#,GYL1#200812-201509

81340LAMP ASSY, VANITY

main81340-30100-A4iAGL10,GGL1#,GYL1#200812-201203

IVORY,TRIM0#

main81340-30100-A4iAGL10,GGL1#,GYL1#201203-201212

IVORY,TRIM0#,40

main81340-30100-B0iAGL10,GGL1#,GYL1#200812-201203

LT.GRAY,TRIM1#,2#

main81340-30100-B0iGGL15,GYL15201203-201212

LT.GRAY,TRIM1#,20,3#,40

main81340-30100-B0iGGL15,GYL15201203-201212

LT.GRAY,TRIM1#,2#,3#,40

main81340-30100-C0iGGL15,GYL15201203-201212

BLACK,TRIM21,22

main81340-30110iAGL10,GGL1#,GYL1#201212

81340BBULB (FOR VANITY LAMP)

main90981-11062iAGL10,GGL1#,GYL1#200812-201509

81360TLAMP ASSY, SPOT

main81360-48070-A0iAGL10,GGL1#,GYL1#200812-201203

IVORY,TRIM0#

main81360-48070-A0iAGL10,GGL1#,GYL1#201203-201509

IVORY,TRIM0#,40

main81360-48070-B0iAGL10,GGL10,GYL10201203-201509

LT.GRAY,TRIM1#,2#,3#,40

main81360-48070-B0iAGL10,GGL1#,GYL1#200812-201203

LT.GRAY,TRIM1#,2#

main81360-48070-B0iGYL16201203-201509

LT.GRAY,TRIM10,20,30,40

main81360-48070-B0iGYL16201203-201509

LT.GRAY,TRIM1#,2#,30,40

main81360-48070-C0iGGL15,GYL15201203-201509

BLACK,TRIM32

main81360-48070-C0iGGL15,GYL15201203-201509

BLACK,TRIM11,21,22,31,32,41

81490BBULB (FOR FOOT LAMP)

main90981-11020iAGL10,GGL1#,GYL1#200812-201509

8202

8424

8601

8615

6339512150CLIP, ROOF HEADLINING TRIM

main63395-12150

9007599005

main90075-99005

9015940206

main90159-40206

9018904102

main90189-04102

26 parts on this diagram · 1 diagram in section
