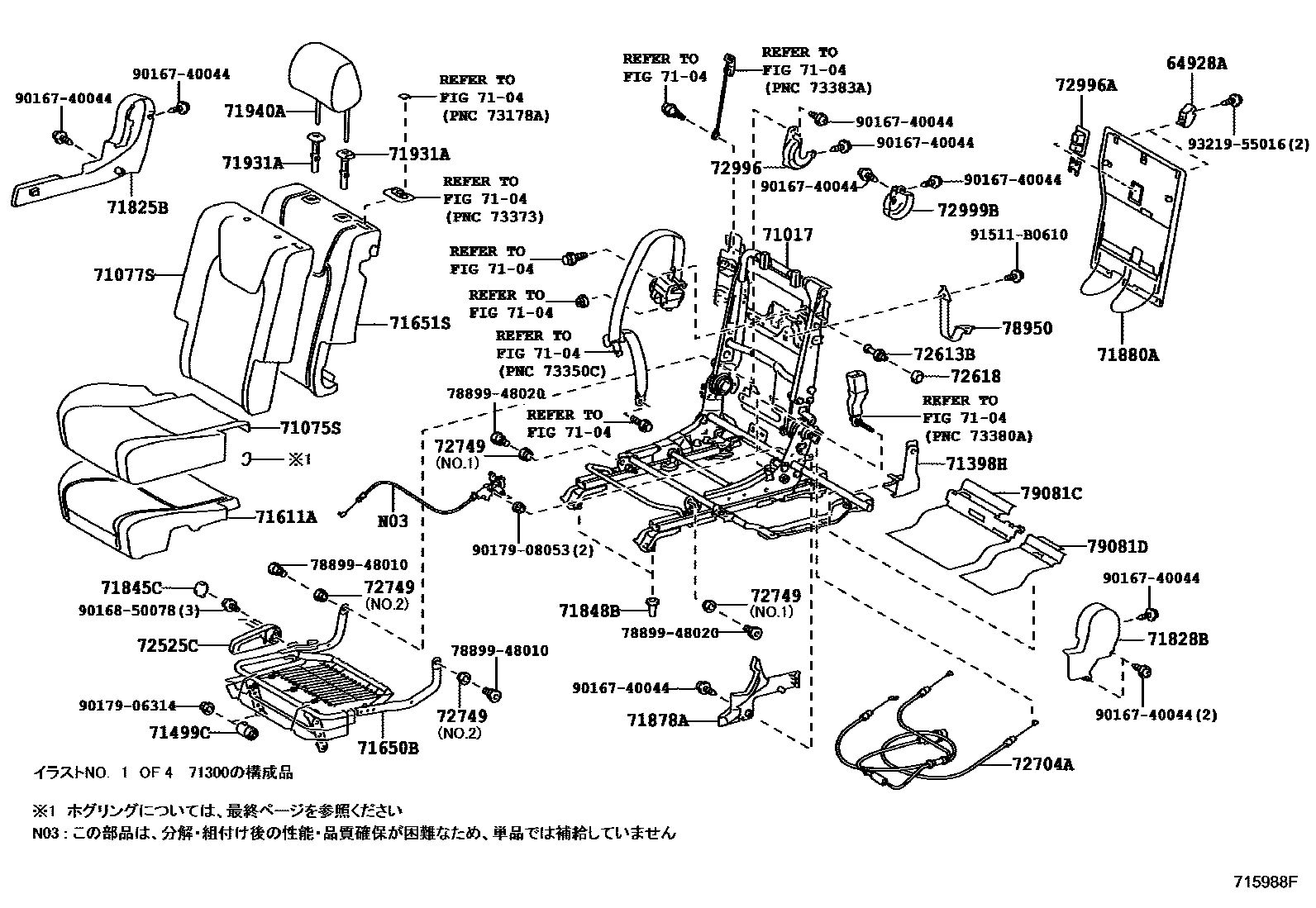

REAR SEAT & SEAT TRACK
64928AHOLDER, TONNEAU COVER HOOK
IVORY,TRIM0#
LT.GRAY,TRIM12
LT.GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM12,2#
BLACK,TRIM1#,2#
IVORY,TRIM0#
BLACK,TRIM1#,2#,3#,4#
71017FRAME SUB-ASSY, REAR SEATBACK, RH
7104
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
IVORY,TRIM0#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
SADDLE TAN,TRIM4#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
71398HCOVER, CENTER SEAT HINGE, UPPER LH
71499CDAMPER, REAR SEAT CUSHION SPRING
71611APAD, REAR SEAT CUSHION, RH
71650BSPRING ASSY, REAR SEAT CUSHION, RH
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71825BMOULDING, REAR SEAT CUSHION, RH
71828BMOULDING, REAR SEAT CUSHION, REAR RH
71845CCAP, REAR SEAT COVER
71848BCAP, SEAT ADJUSTER COVER, RH
71878ACOVER, REAR SEAT RECLINING, INNER RH
71880ACARPET ASSY, REAR SEATBACK BOARD, RH
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM12,13,2#
71931ASUPPORT, REAR SEAT HEADREST
71940AHEADREST ASSY, REAR SEAT
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
GARNET,TRIM3#
SADDLE TAN,TRIM4#
72525CHANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH
72613BSTRIKER, REAR SEAT LOCK
72618PROTECTOR, REAR SEATBACK LOCK STRIKER
72704ACABLE, REAR SEAT RECLINING CONTROL
72749SPACER, REAR SEAT RECLINING
72996COVER, REAR SEATBACK, RH
72996ACOVER, REAR SEATBACK
72999BCOVER, REAR SEAT CUSHION SIDE, LH
78950BAND ASSY, FOLD SEAT STOPPER, NO.1
79081CCOVER, REAR SEAT, NO.1
79081DCOVER, REAR SEAT, NO.2
7889948010BOLT, FRONT SEAT
7889948020BOLT, FRONT SEAT
9016740044
9016850078
9017906314
9017908053
91511B0610
9321955016
37 parts on this diagram · 9 diagrams in section
