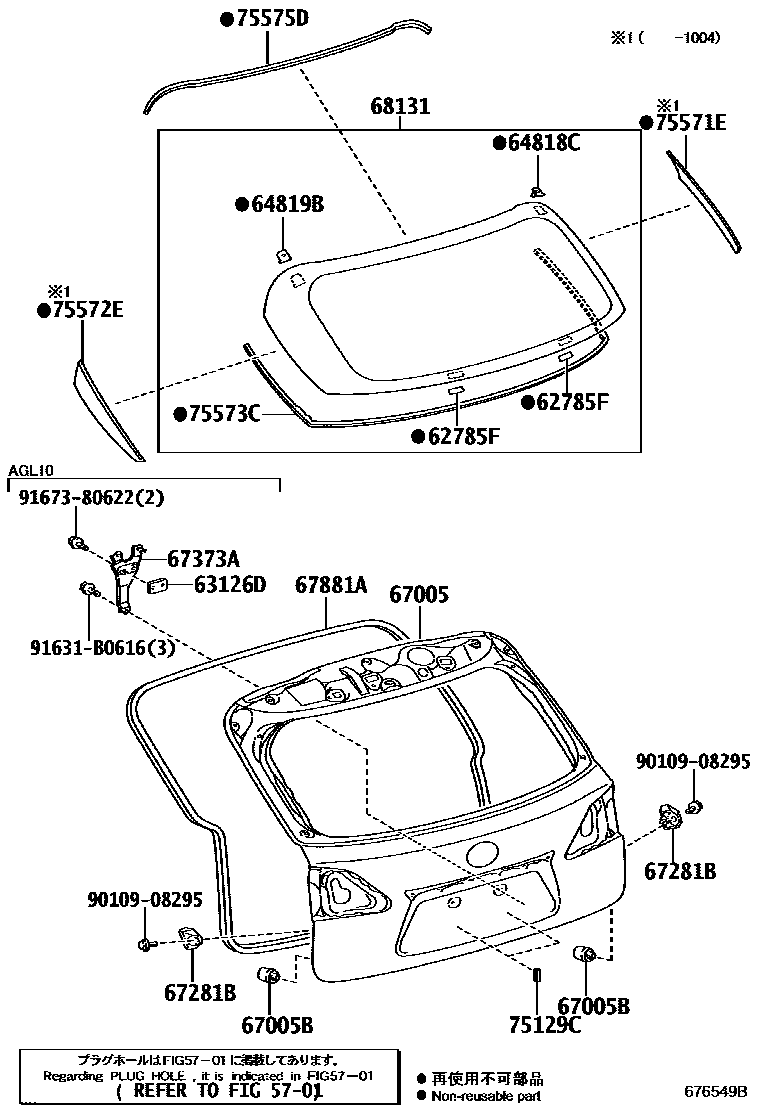

BACK DOOR PANEL & GLASS

0001 1������� 0002 1������

5701

62785FSPACER, BACK DOOR GLASS

main62785-60030iAGL10,GGL1#,GYL1#200812-201203

63126DDAMPER, WINDSHIELD HEADER PANEL

main63126-47020iAGL10201008-201203

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-48070iAGL10,GGL1#,GYL1#200812-201203

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-48040iAGL10,GGL1#,GYL1#200812-201203

67005PANEL SUB-ASSY, BACK DOOR

main67005-48600iGGL1#,GYL1#200812-201007

sub67005-48601

main67005-48601iAGL10,GGL10,15,GYL10,15201008-201509

main67005-48610iGGL1#,GYL1#200812-201007

sub67005-48611

main67005-48611iAGL10,GGL1#,GYL16201008-201509

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09128iAGL10,GGL1#,GYL1#200812-201203

67281BSTOPPER, BACK DOOR, LOWER

main67281-48010iAGL10,GGL1#,GYL1#200812-201203

67373ARETAINER, BACK DOOR WEIGHT, RH

main67373-48010iAGL10201008-201203

67881AWEATHERSTRIP, BACK DOOR

main67881-48050iAGL10,GGL1#,GYL1#200812-201203

68131GLASS, BACK DOOR

main68105-48340iAGL10,GGL1#,GYL1#200812-201203

main68105-48350iAGL10,GGL1#,GYL1#200812-201203

75129CCUSHION, REAR LICENCE PLATE

main75129-13020iAGL10,GGL1#,GYL1#200812-201204

main75129-30010iAGL10,GGL1#,GYL1#201204

75571EMOULDING, BACK WINDOW, OUTSIDE UPPER RH

main75571-48010iGGL1#,GYL1#200812-201004

75572EMOULDING, BACK WINDOW, OUTSIDE UPPER LH

main75572-48010iGGL1#,GYL1#200812-201004

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-48040iAGL10,GGL1#,GYL1#200812-201203

75575DMOULDING, BACK WINDOW, LOWER

main75575-48030iAGL10,GGL1#,GYL1#200812-201203

9010908295

main90109-08295

91631B0616

main91631-B0616

9167380622

main91673-80622

19 parts on this diagram · 2 diagrams in section
