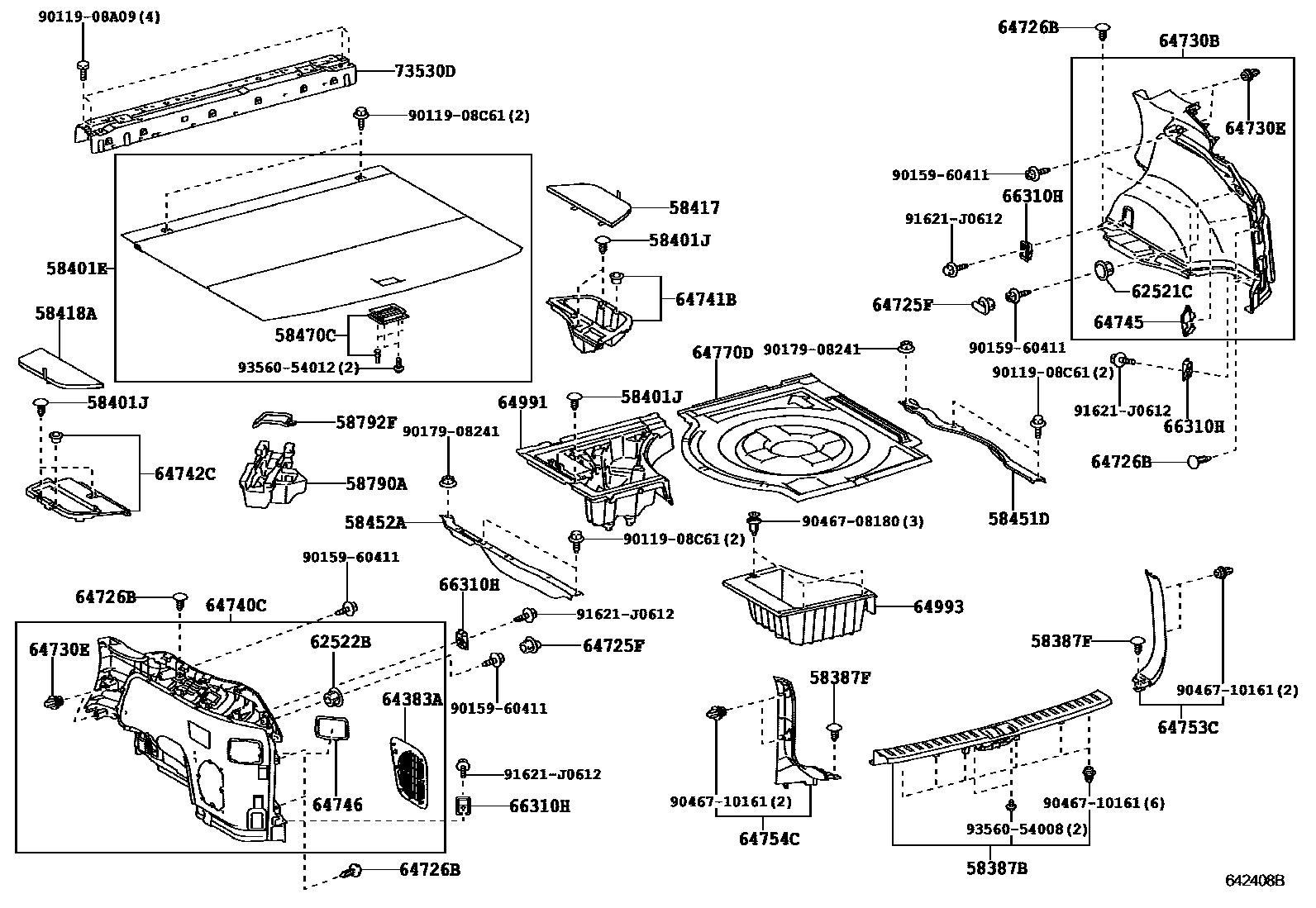

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
58387FCLIP, REAR FLOOR FINISH PLATE
58401EBOARD SUB-ASSY, DECK
IVORY,TRIM0#
LT.GRAY,TRIM12
LT.GRAY,TRIM10,12
LT.GRAY,TRIM1#
BLACK,TRIM1#,2#
BLACK,TRIM12,13,2#
BLACK,TRIM12,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#,3#,4#
58401JCLIP(FOR DECK BOAD)
58417BOARD, REAR FLOOR, NO.3
IVORY,TRIM0#
BLACK,TRIM1#,2#,3#,4#
58418ABOARD, REAR FLOOR, NO.4
IVORY,TRIM0#
BLACK,TRIM1#,2#,3#,4#
58451DREINFORCEMENT, DECK BOARD, NO.1
58452AREINFORCEMENT, DECK BOARD, NO.2
58470CHANDLE ASSY, DECK BOARD
58790ACARRIER ASSY, JACK
58792FSUPPORT, JACK CARRIER
62521CCOVER, QUARTER TRIM RH
IVORY,TRIM0#
LT.GRAY,TRIM12
LT.GRAY,TRIM1#
LT.GRAY,TRIM10,12
BLACK,TRIM2#
BLACK,TRIM12,2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,3#,4#
62522BCOVER, QUARTER TRIM LH
IVORY,TRIM0#
LT.GRAY,TRIM12
LT.GRAY,TRIM1#
BLACK,TRIM1#,2#
BLACK,TRIM12,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#,3#,4#
64383AGRILLE, SPEAKER, REAR(FOR DECK TRIM)
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM10,12
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM12,13,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM12
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM12,2#
64726BCLIP, DECK REAR TRIM
64730BPANEL ASSY, DECK TRIM SIDE, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM12
BLACK,TRIM1#,2#
BLACK,TRIM12,2#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM12
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM12,2#
BLACK,TRIM1#,2#,3#,4#
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64740CPANEL ASSY, DECK TRIM SIDE, LH
IVORY,TRIM0#
LT.GRAY,TRIM12
LT.GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM12,2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM12
BLACK,TRIM12,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,3#,4#
64741BBOX, DECK SIDE TRIM, RH
64742CBOX, DECK SIDE TRIM, LH
64745COVER, REAR COMBINATION LAMP SERVICE, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM10,12
LT.GRAY,TRIM12
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM12,13,2#
BLACK,TRIM12,2#
BLACK,TRIM2#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM1#,2#
BLACK,TRIM2#
64753CPLATE, REAR FLOOR FINISH SIDE, RH
IVORY,TRIM0#
BLACK,TRIM1#,2#,3#,4#
64754CPLATE, REAR FLOOR FINISH SIDE, LH
IVORY,TRIM0#
BLACK,TRIM1#,2#,3#,4#
64770DCOVER ASSY, SPARE WHEEL
64991BOX, DECK FLOOR, FRONT
64993BOX, DECK FLOOR, REAR
66310HHOOK ASSY, ROPE
73530DPANEL ASSY, REAR SEAT SUB FLOOR
9011908A09
9011908C61
9015960411
9017908241
9046708180
9046710161
91621J0612
9356054008
9356054012
39 parts on this diagram · 4 diagrams in section
