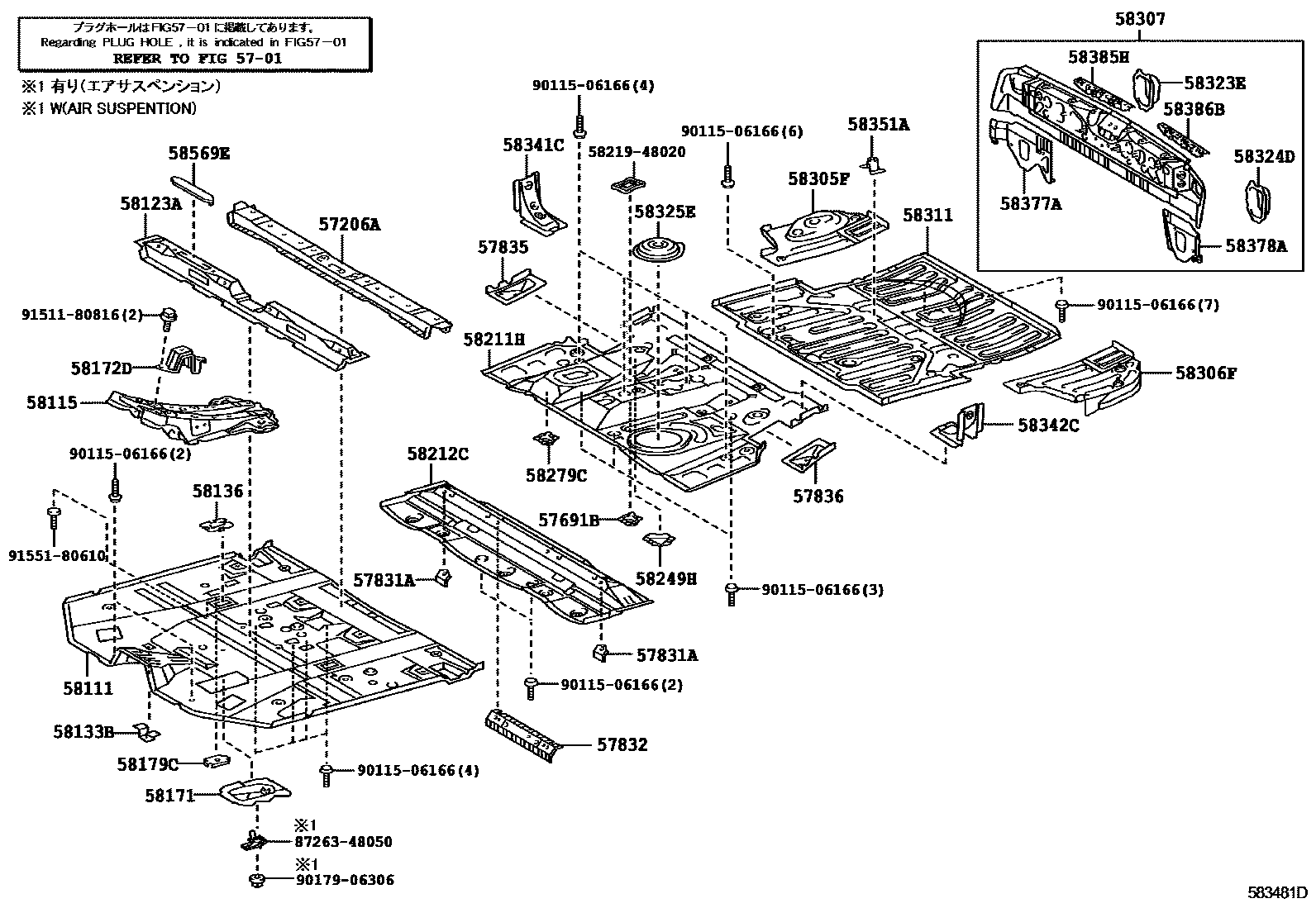

FLOOR PAN & LOWER BACK PANEL
5701
57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
57691BBRACKET, FUEL TANK MOUNTING, FRONT CENTER
57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
58111PAN, FRONT FLOOR
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58123ASUPPORT, SHIFT & SELECT LEVER
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58172DBRACKET, COMPUTER MOUNTING, NO.4
58179CBRACKET, CLAMP FLOOR
58211HPAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58249HBRACKET, CENTER FLOOR BOARD SUPPORT
58279CPROTECTOR, FUEL TANK, UPPER NO.2
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58351ABRACKET, SPARE WHEEL CARRIER
58377APANEL, BODY LOWER BACK, RH
58378APANEL, BODY LOWER BACK, LH
58385HBRACKET, REAR BUMPER COVER, NO.1
58386BBRACKET, REAR BUMPER COVER, NO.2
58569ECOVER, FRONT FLOOR CAUTION PLATE
5821948020PROTECTOR, FRONT FLOOR
8726348050BRACKET, HEATER WATER PIPE, NO.1
main87263-48050
9011506166
9017906306
9151180816
9155180610
40 parts on this diagram · 5 diagrams in section
