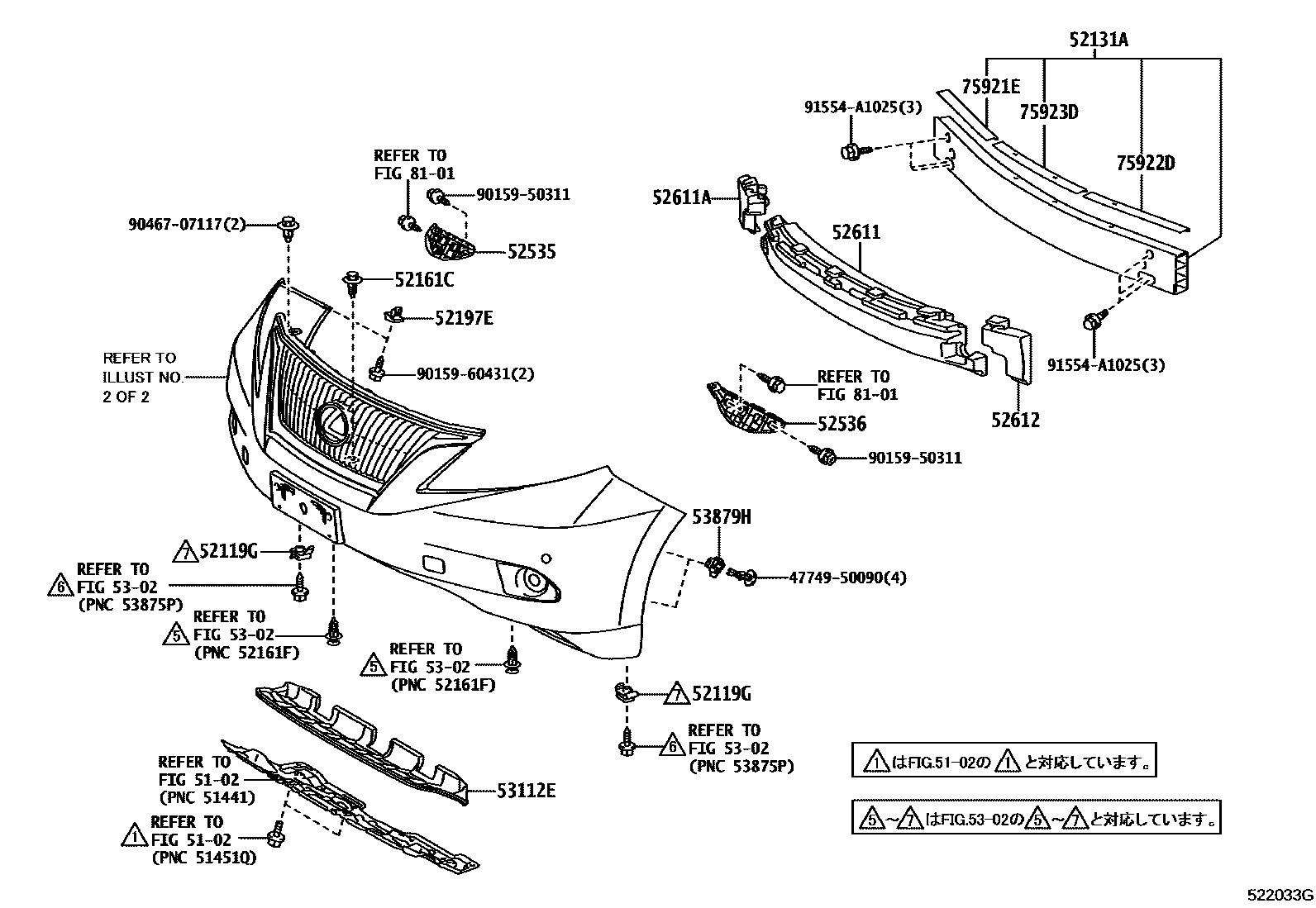

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1F SPORT OR ��������(����) 0010 1F SPORT OR ��������(����) 0011 1 0012 1

5102

52119GCLIP, NO.1

main90467-05114iAGL10,GGL1#,GYL1#200812-201509

52131AREINFORCEMENT, FRONT BUMPER

main52131-48110iAGL10,GGL1#,GYL1#200812-201203

main52131-48111iAGL10,GGL1#,GYL1#201203-201509

52161CPIECE, FRONT BUMPER

main52161-16010iAGL10,GGL1#,GYL1#200812-201203

52197EBRACKET, FRONT BUMPER SEAL

main52197-30040iAGL10,GGL1#,GYL1#200812-201203

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-48010iGGL1#,GYL1#200812-200908

sub52535-48011

main52535-48011iGGL1#,GYL1#200909-200911

sub52535-48012

main52535-48012iAGL10,GGL1#,GYL1#200911-201112

sub52535-48013

main52535-48013iAGL10,GGL1#,GYL1#201201-201203

main52535-48030iAGL10,GGL1#,GYL1#201203

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-48010iGGL1#,GYL1#200812-200908

sub52536-48011

main52536-48011iGGL1#,GYL1#200909-200911

sub52536-48012

main52536-48012iAGL10,GGL1#,GYL1#200911-201112

sub52536-48013

main52536-48013iAGL10,GGL1#,GYL1#201201-201203

main52536-48020iAGL10,GGL1#,GYL1#201203

52611ABSORBER, FRONT BUMPER ENERGY

main52611-48080iAGL10,GGL1#,GYL1#200812-201203

main52611-48160iAGL10,GGL1#,GYL1#201203

52611AABSORBER, FRONT BUMPER ENERGY, RH

main52613-48010iAGL10,GGL1#,GYL1#200812-201203

main52613-48020iAGL10,GGL1#,GYL1#201203

52612ABSORBER, FRONT BUMPER ENERGY, LH

main52612-48010iAGL10,GGL1#,GYL1#200812-201203

main52612-48020iAGL10,GGL1#,GYL1#201203

5302

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-48100iAGL10,GGL1#,GYL1#200812-201203

main53112-48120iAGL10,GGL1#,GYL1#201203

53879HRETAINER, FRONT FENDER LINER

main53879-30040iAGL10,GGL1#,GYL1#201203-201509

main53879-50020iAGL10,GGL1#,GYL1#200812-201203

75921ETAPE, BLACK OUT, NO.1 RH

main75921-48040iGGL1#,GYL1#200812-200904

sub75921-48041

main75921-48041iAGL10,GGL1#,GYL1#200905-201203

75922DTAPE, BLACK OUT, NO.1 LH

main75922-48040iGGL1#,GYL1#200812-200904

sub75922-48041

main75922-48041iAGL10,GGL1#,GYL1#200905-201203

75923DTAPE, BLACK OUT, NO.2 RH

main75923-48040iGGL1#,GYL1#200812-200905

sub75921-48041

sub75922-48041

8101

4774950090CLIP, PIN HOLD

main47749-50090

9015950311

main90159-50311

9015960431

main90159-60431

9046707117

main90467-07117

91554A1025

main91554-A1025

22 parts on this diagram · 12 diagrams in section
