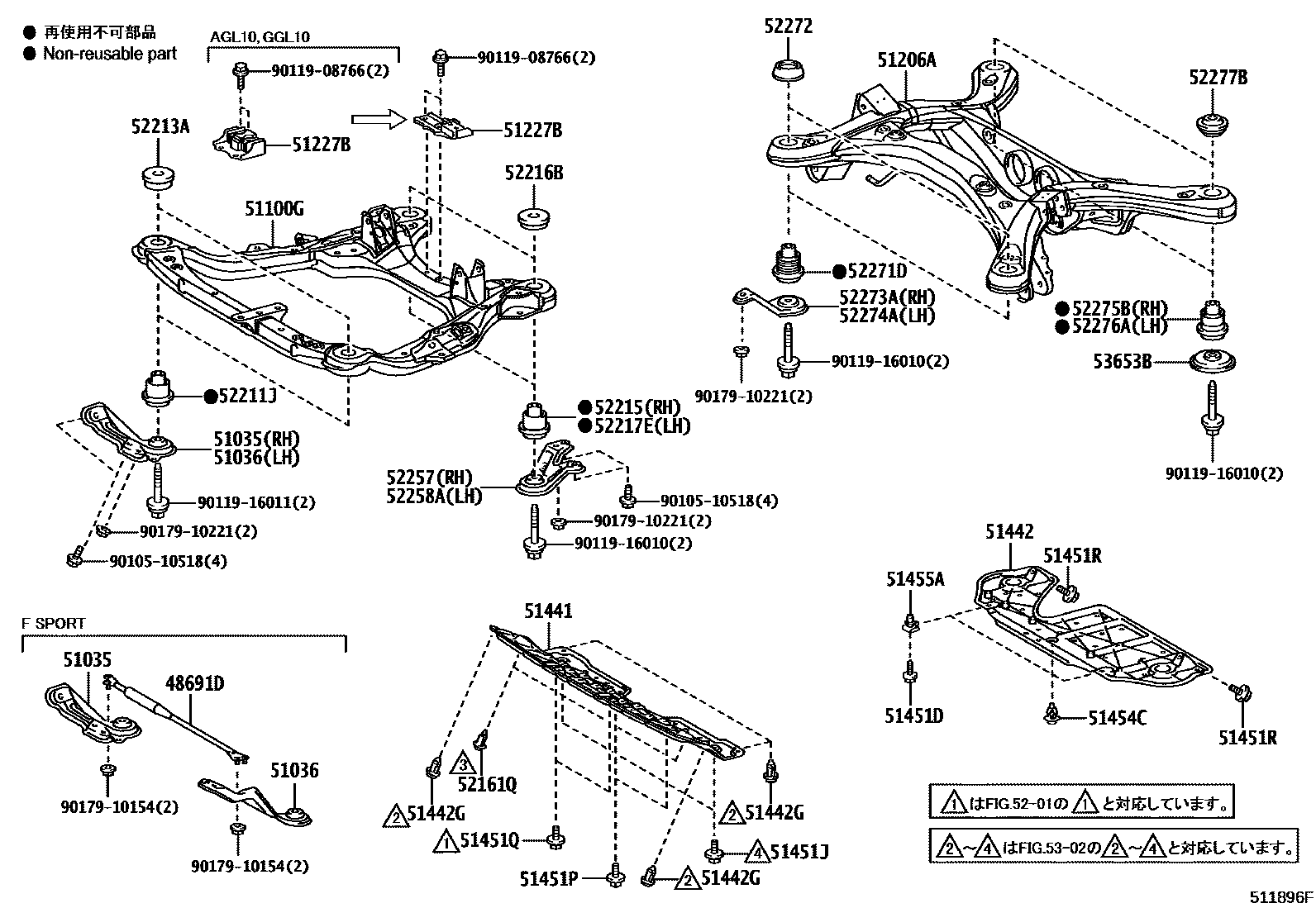

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

48691DDAMPER, SUSPENSION TOWER

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-48020iAGL10,GGL1#,GYL1#¥6,700200812-201107

sub51035-48021¥6,700

main51035-48021iAGL10,GGL1#,GYL1#¥6,700201108-201203

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-48020iAGL10,GGL1#,GYL1#¥6,700200812-201107

sub51036-48021¥6,700

main51036-48021iAGL10,GGL1#,GYL1#¥6,700201108-201203

51100GFRAME ASSY, FRONT

main51100-48071iAGL10,GGL1#,GYL1#¥86,900200812-201303

sub51100-48072¥86,900

main51100-48072iAGL10,GGL1#,GYL1#¥86,900201304-201308

sub51100-48073¥86,900

main51100-48073iAGL10,GGL1#,GYL1#¥86,900201309-201405

sub51100-48074¥86,900

main51100-48074iAGL10,GGL1#,GYL1#¥86,900201406

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-48080iAGL10,GGL1#¥115,000200812-201309

sub51206-48081¥115,000

sub90950-01776¥160

main51206-48081iAGL10,GGL1#¥115,000201309-201311

sub51206-48082¥79,000

sub90950-01776¥160

main51206-48082iAGL10,GGL1#¥79,000201312

main51206-48090iGYL1#¥116,000200903-201311

sub51206-48091¥80,300

main51206-48091iGYL1#¥80,300201312

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-48100iGYL1#¥7,200200903-201203

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-48120iGGL15,16¥9,300200812-201203

main51227-48120iGGL15¥9,300201203

main51227-48130iAGL10,GGL10,GYL1#¥6,500200812-201203

51441COVER, ENGINE UNDER, NO.1

main51441-48070iGGL1#,GYL1#¥9,600200812-201007

sub51441-48071¥9,600

main51441-48071iAGL10,GGL1#,GYL1#¥9,600201008-201509

51442COVER, ENGINE UNDER, NO.2

main51442-48040iAGL10,GGL1#,GYL1#¥14,400200812-201203

51442GCLIP, ENGINE UNDER COVER, NO.1

main90467-07201iAGL10,GGL1#,GYL1#¥100200812-201509

51451DSCREW, NO.1

main90159-60590iAGL10,GGL1#,GYL1#¥60200812-201509

51451JBOLT, NO.1

main90119-06699iAGL10,GGL1#,GYL1#¥70200812-201509

51451PBOLT, NO.2

main90119-06699iAGL10,GGL1#,GYL1#¥70200812-201509

51451QBOLT, NO.3

main90119-06699iAGL10,GGL1#,GYL1#¥70200812-201509

51451RBOLT, NO.4

main90119-06699iAGL10,GGL1#,GYL1#¥70200812-201509

51454CSILENCER, ENGINE UNDER COVER, REAR

main51454-48010iAGL10,GGL1#,GYL1#¥240200812-201408

main90467-10216iAGL10,GGL1#,GYL1#¥100201409

51455ASEAL, ENGINE UNDER COVER, NO.1

main51455-48010iAGL10,GGL1#,GYL1#¥320200812-201203

52161QPIECE, FRONT BUMPER

main52161-16010iAGL10,GGL1#,GYL1#¥120200812-201509

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-28020iAGL10,GGL1#,GYL1#¥4,930200812-201203

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-28020iAGL10,GGL1#,GYL1#¥2,330200812-201203

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-28010iAGL10,GGL1#,GYL1#¥6,200200812-201203

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-28010iAGL10,GGL1#,GYL1#¥1,860200812-201203

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-28010iAGL10,GGL1#,GYL1#¥5,900200812-201203

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-48030iAGL10,GGL1#,GYL1#¥3,690200812-201203

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-48040iAGL10,GGL1#,GYL1#¥4,430200812-201203

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-48030iAGL10,GGL1#,GYL1#¥2,570200812-201203

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-48020iAGL10,GGL1#,GYL1#¥700200812-201203

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-48010iAGL10,GGL1#,GYL1#¥1,900200812-201203

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52273-48010iGYL1#¥1,900200903-201203

main52274-48010iAGL10,GGL1#¥1,940200812-201203

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-48021iAGL10,GGL1#,GYL1#¥3,860200812-201203

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-48011iAGL10,GGL1#,GYL1#¥3,730200812-201203

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-48020iAGL10,GGL1#,GYL1#¥1,610200812-201203

53653BBRACE, REAR SUSPENSION, LOWER

main53653-48010iAGL10,GGL1#,GYL1#¥1,320200812-201203

9010510518

main90105-10518¥140

9011908766

main90119-08766¥160

9011916010

main90119-16010¥780

9011916011

main90119-16011¥780

9017910154

main90179-10154¥110

9017910221

main90179-10221¥90

39 parts on this diagram · 2 diagrams in section
