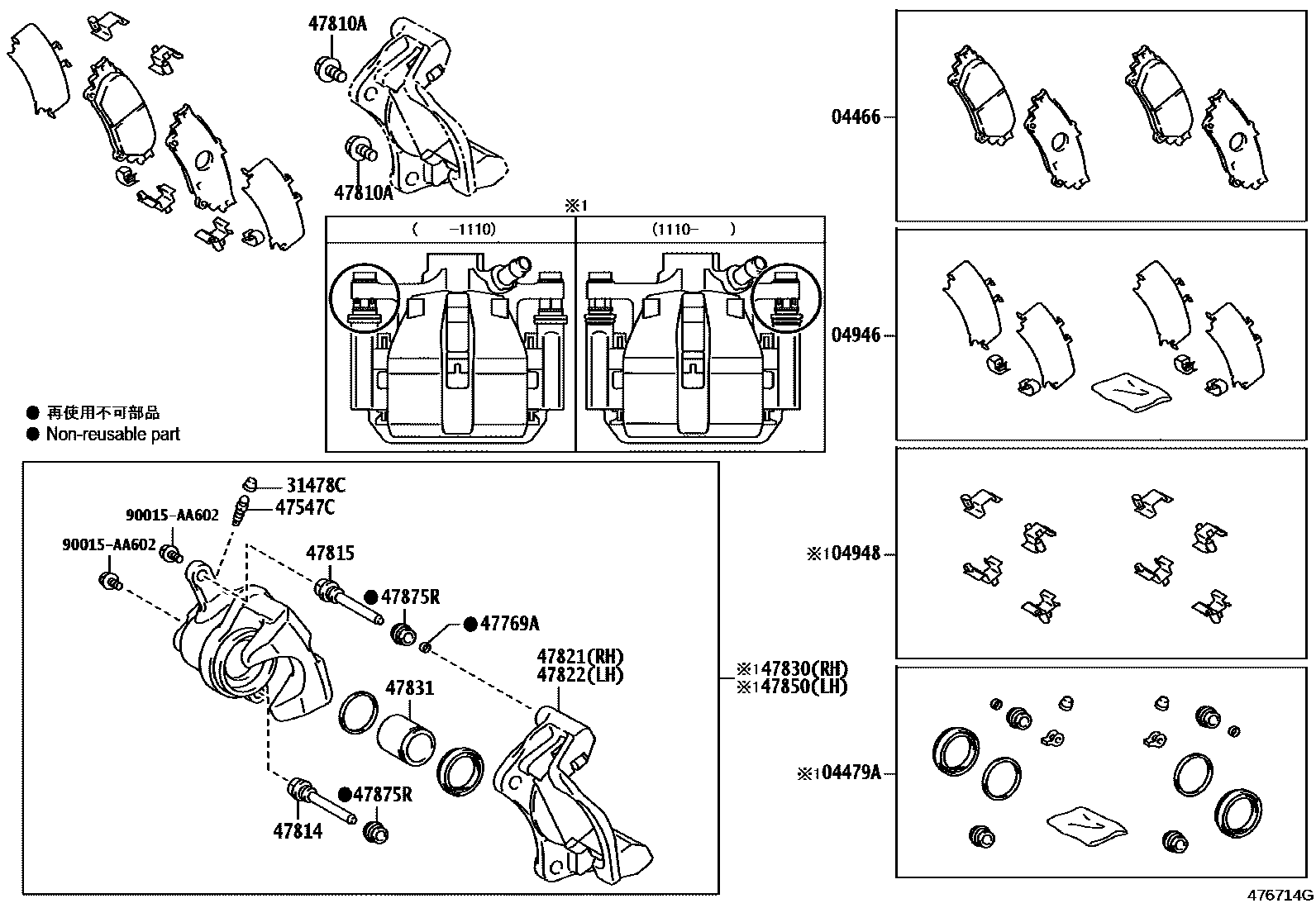

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-48130iAGL10,GGL1#,GYL1#200812-201509

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-48130iAGL10,GGL1#,GYL1#200812-201110

main04479-48150iAGL10,GGL1#,GYL1#201110-201203

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-48110iAGL10,GGL1#,GYL1#200812-201203

04948FITTING KIT, DISC BRAKE, REAR

main04948-30230iAGL10,GGL1#,GYL1#201110-201203

main04948-48050iAGL10,GGL1#,GYL1#200812-201109

sub04948-30230

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-48020iAGL10,GGL1#,GYL1#200812-201203

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-48100iAGL10,GGL1#,GYL1#200812-201203

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-48100iAGL10,GGL1#,GYL1#200812-201110

main47879-48101iAGL10,GGL1#,GYL1#201110-201509

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iAGL10,GGL1#,GYL1#200812-201203

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-33240iAGL10,GGL1#,GYL1#201110-201303

main47814-48100iAGL10,GGL1#,GYL1#200812-201110

main47814-48101iAGL10,GGL1#,GYL1#201303

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-33240iAGL10,GGL1#,GYL1#201110-201303

main47815-48100iAGL10,GGL1#,GYL1#200812-201110

main47815-48101iAGL10,GGL1#,GYL1#201303

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-48100iAGL10,GGL1#,GYL1#200812-201110

main47821-48101iAGL10,GGL1#,GYL1#201110-201203

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-48100iAGL10,GGL1#,GYL1#200812-201110

main47822-48101iAGL10,GGL1#,GYL1#201110-201203

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-48100iAGL10,GGL1#,GYL1#200812-201110

main47830-48101iAGL10,GGL1#,GYL1#201110-201203

47831PISTON, REAR DISC BRAKE

main47831-48100iAGL10,GGL1#,GYL1#200812-201203

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-48100iAGL10,GGL1#,GYL1#200812-201110

main47850-48101iAGL10,GGL1#,GYL1#201110-201203

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-48100iAGL10,GGL1#,GYL1#200812-201110

main47875-48101iAGL10,GGL1#,GYL1#201110-201509

90015AA602

main90015-AA602

17 parts on this diagram · 1 diagram in section
