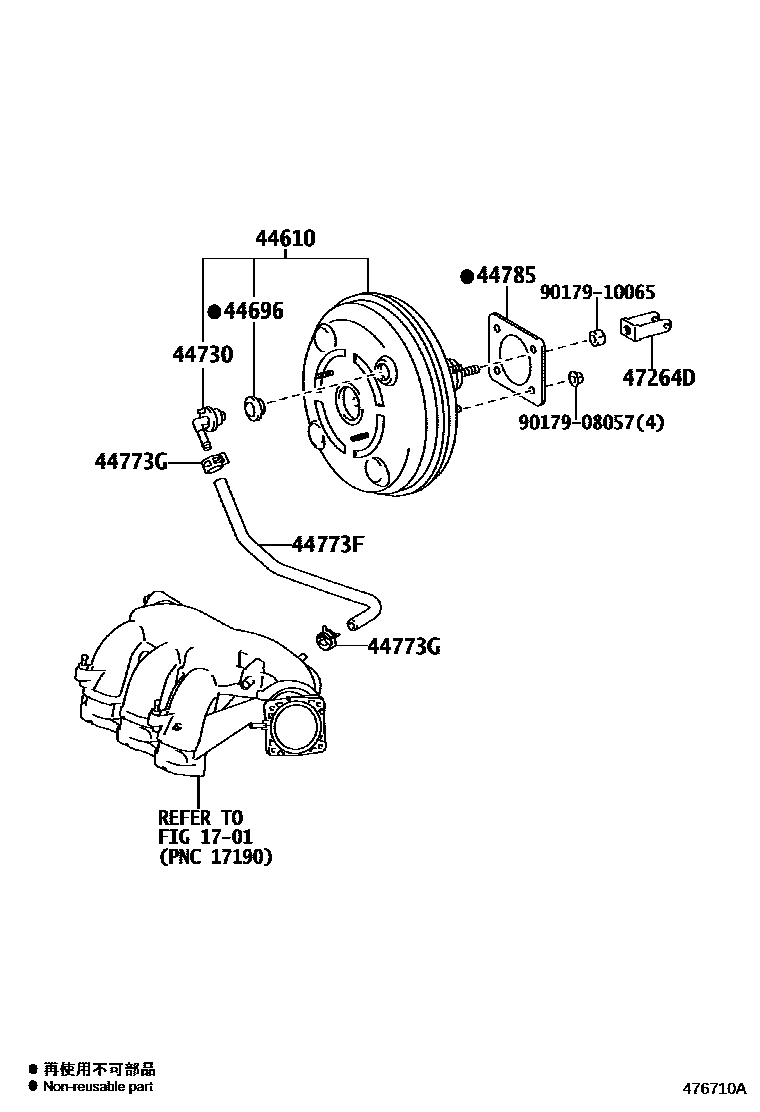

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

44610BOOSTER ASSY, BRAKE

main44610-48311iAGL10,GGL1#200812-201403

main44610-48312iAGL10,GGL1#201403-201509

44696GROMMET, CHECK VALVE

main90480-24439iAGL10,GGL1#200812-201203

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iGGL1#200812-201006

main44730-20170iAGL10,GGL1#201006-201203

44773FHOSE, UNION TO CHECK VALVE

main44773-48180iGGL1#200812-201203

main44773-48200iAGL10201008-201203

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iGGL1#200812-201203

main90467-16014iAGL10201008-201203

main96136-41801iAGL10201008-201203

44785GASKET, BRAKE BOOSTER

main44785-12040iAGL10,GGL1#200812-201203

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iAGL10200812-201203

9017908057

main90179-08057

9017910065

main90179-10065

10 parts on this diagram · 2 diagrams in section
