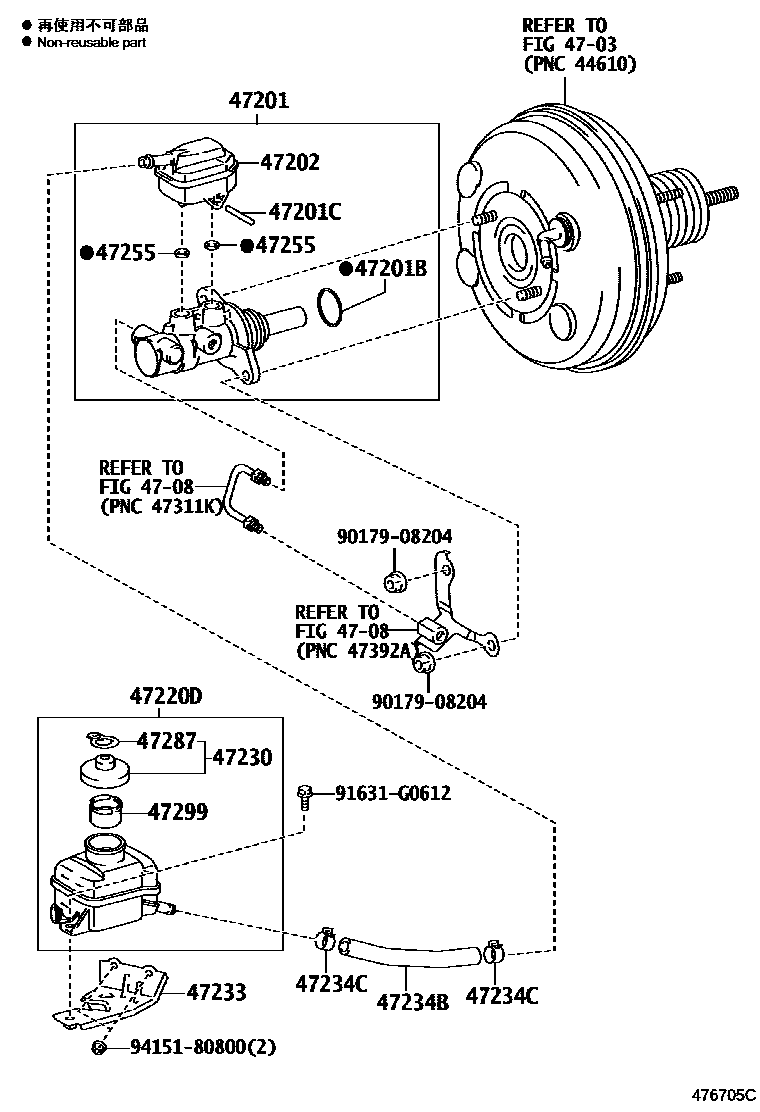

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-48200iAGL10200812-201204

sub47201-48201

main47201-48201iAGL10,GGL1#201204-201205

sub47201-48202

main47201-48202iAGL10,GGL1#201205-201509

main47201-48230iGYL1#200903-201509

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iAGL10,GGL1#200812-201203

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iAGL10,GGL1#200812-201203

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-48200iAGL10,GGL1#200812-201509

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-48190iAGL10,GGL1#200812-201509

main47220-48220iGYL1#200903-201509

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iAGL10,GGL1#200812-201203

main47230-58010iGYL1#200903-201203

sub47230-11010

47233BRACKET, RESERVOIR

main47233-48130iAGL10,GGL1#200812-201202

main47233-48131iAGL10,GGL1#201202-201203

main47233-48140iGYL1#200903-201203

47234BTUBE, RESERVOIR, NO.1

main47234-48170iAGL10,GGL1#200812-201202

main47234-48171iAGL10,GGL1#201202-201203

main47234-48180iGYL1#200903-201203

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main96133-41500iAGL10,GGL1#200812-201203

main96135-51300iGYL1#200903-201203

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iGYL1#200903-201203

main90029-48001iAGL10200812-201203

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iAGL10,GGL1#200812-201203

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iAGL10,GGL1#200812-201203

main47299-48180iGYL1#200903-201203

9017908204

main90179-08204

91631G0612

main91631-G0612

9415180800

main94151-80800

17 parts on this diagram · 2 diagrams in section
