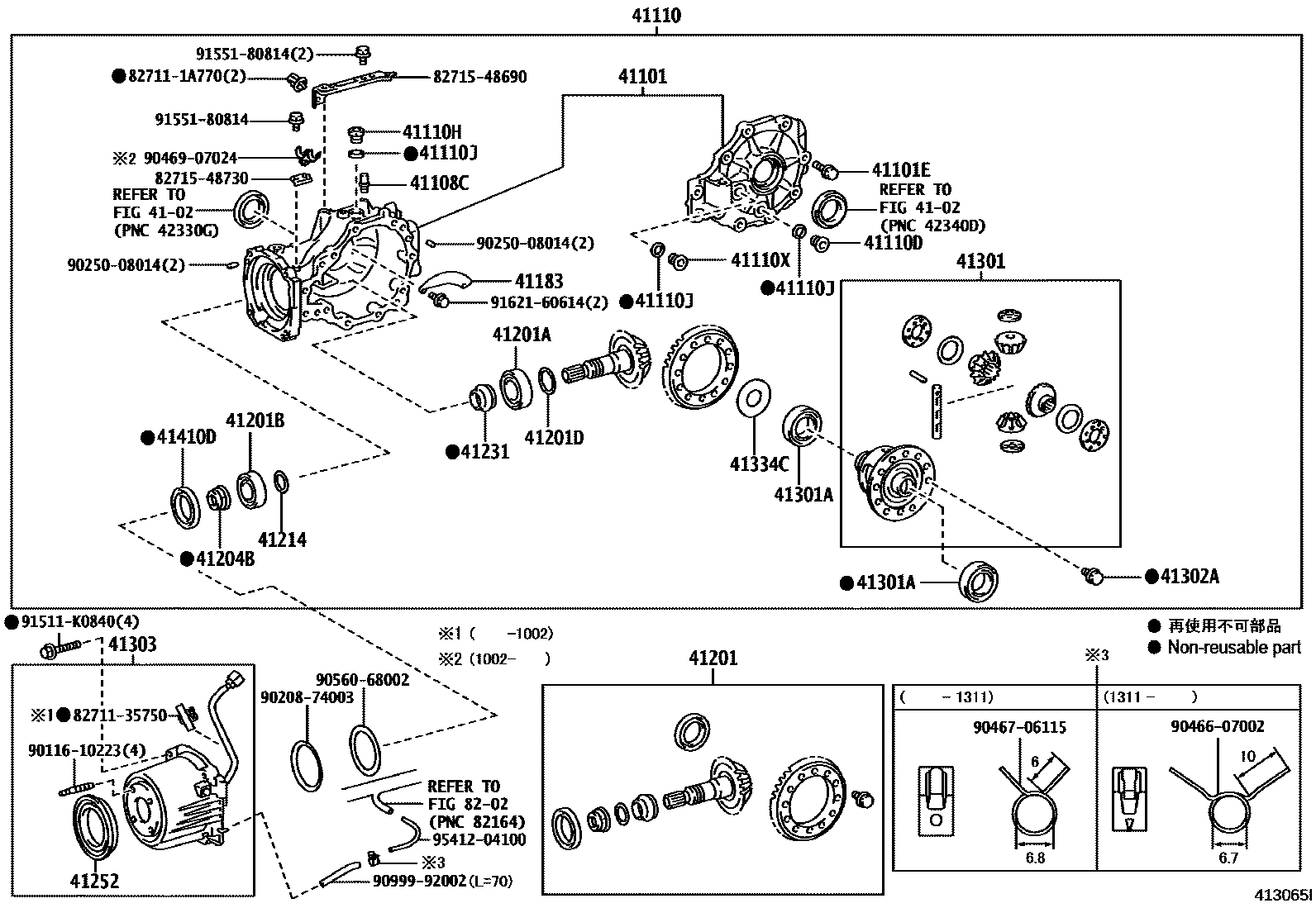

REAR AXLE HOUSING & DIFFERENTIAL
4102
41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)
41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
sub41201-49166
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301CASE SUB-ASSY, REAR DIFFERENTIAL
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41410DSEAL, OIL DIAPHRAGM
8202
827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A770
8271135750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-35750
8271548690BRACKET,WIRING HARNESS CLAMP
main82715-48690
8271548730BRACKET,WIRING HARNESS CLAMP
main82715-48730
9011610223
main90116-10223
9020874003
main90208-74003
9025008014
main90250-08014
9046607002
main90466-07002
9046706115
main90467-06115
9046907024
main90469-07024
9056068002
main90560-68002
9099992002
main90999-92002
91511K0840
main91511-K0840
9155180814
main91551-80814
9162160614
main91621-60614
9541204100
main95412-04100
41 parts on this diagram · 2 diagrams in section
