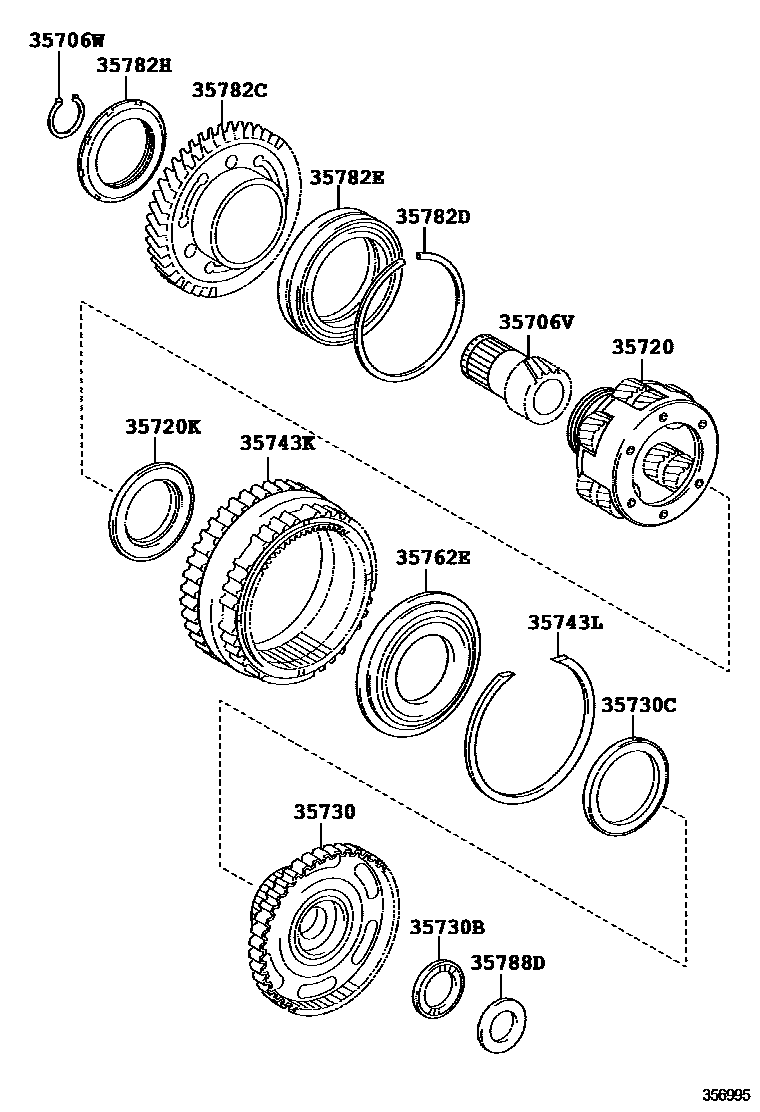

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1U660E,U660F 0002 1U760E

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-33020iGGL1#200812-201203

main35706-73010iAGL10201008-201203

35706WRING, SNAP (FOR PLANETARY SUN GEAR)

main90520-34032iAGL10,GGL1#200812-201203

35720GEAR ASSY, FRONT PLANETARY

main35720-33050iAGL10201008-201404

sub35720-33070

main35720-33061iGGL1#200812-200909

sub35720-33062

main35720-33062iGGL1#200909-201203

main35720-33070iAGL10201404

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-62002iGGL1#200812-201310

sub90374-62007

main90374-62004iAGL10201008-201408

sub90374-62011

main90374-62007iGGL1#201310

main90374-62011iAGL10201408

35730GEAR ASSY, REAR PLANETARY SUN

main35730-33021iGGL1#200812-201203

main35730-33030iAGL10201008-201203

35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)

main90374-28015iGGL1#200812-201203

35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)

main90374-61001iAGL10,GGL1#200812-201203

35743KGEAR, PLANETARY RING

main35743-33030iGGL1#200812-201203

main35743-33040iAGL10201008-201203

35743LRING, SNAP (FOR PLANETARY RING GEAR)

main90520-99108iAGL10,GGL1#200812-201203

35762EFLANGE, PLANETARY RING GEAR

main35762-33020iGGL1#200812-201203

main35762-73010iAGL10201008-201203

35782CGEAR, COUNTER DRIVE

main35782-33030iGGL1#200812-200908

sub35782-33031

main35782-33031iGGL1#200908-201203

main35782-33040iAGL10201008-201203

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-99110iAGL10,GGL1#200812-201402

main90520-99154iAGL10,GGL1#201402

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90369-72001iAGL10,GGL1#200812-201402

sub90369-72002

main90369-72002iAGL10,GGL1#201402

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-60001iAGL10,GGL1#200812-201203

35788DRACE, THRUST BEARING, NO.3

main35788-33020iGGL1#200812-201203

15 parts on this diagram · 2 diagrams in section
