TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

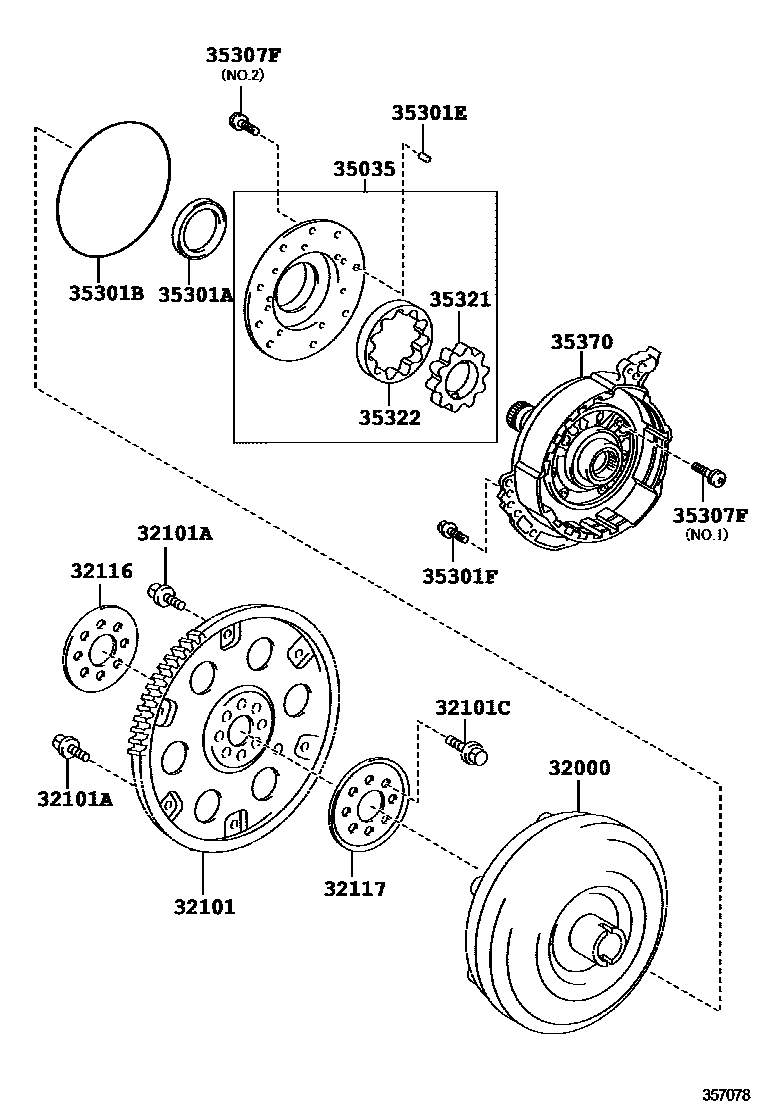

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-33132i201203-201509
sub32000-33160
main32000-33133i200905-201103
main32000-33140i201008-201106
main32000-33141i201106-201203
main32000-33142i201403-201505
main32000-33143i201506-201509
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-48010i200812-201203
main32101-73010i201008-201203
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-09001i201203
main90119-09025×5i200812-201203
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10048×8i200812-201203
main90105-12384×8i201008-201203
main90105-A0022×8i200812-201003
32116SPACER, DRIVE PLATE, FRONT
main32116-20050i201203
main32116-32020i201203
32117SPACER, DRIVE PLATE, REAR
main32117-20060i201008-201203
main32117-32020i200812-201203
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
main35035-33030i200812-201108
main35035-33031i201203
main35035-33041i201008-201107
main35035-33042i201203-201312
main35035-33043i201312
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-43010i200812-201203
35301BRING, O (FOR FRONT OIL PUMP BODY)
main35697-33010i201105-201203
main90301-99158i200812-201105
35301EPIN, STRAIGHT (FOR FRONT OIL PUMP)
main90250-08040×2i201203
main90250-08052×2i201008-201203
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main91551-80835×7i200812-201203
35307FBOLT (FOR STATOR SHAFT)
main90148-60064×7i200812-201203
main90148-60065×9i201203
main90148-60067×7i201008-201203
main90148-60068×9i201008-201203
35321GEAR, FRONT OIL PUMP DRIVE
main35321-33110i200812-201010
main35321-33111i201203-201312
main35321-33120i200812-201010
main35321-33121i201203-201312
main35321-33130i200812-201010
main35321-33131i201203-201312
main35321-33140i200812-201010
main35321-33141i201203-201312
main35321-33150i200812-201010
main35321-33151i201010-201203
main35321-73010i201312-201509
main35321-73020i201312-201509
main35321-73030i201312-201509
main35321-73040i201312-201509
main35321-73050i201312-201509
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-33110i200812-201203
main35322-33120i201203-201509
main35322-33130i201203-201509
main35322-33140i200812-201203
main35322-33150i201203-201312
main35322-73010i201312-201509
main35322-73020i201312-201509
main35322-73030i201312-201509
main35322-73040i201312-201509
main35322-73050i201312-201509
35370SHAFT ASSY, STATOR
main35370-33031i200812-201203
main35370-33041i201008-201107
main35370-33042i201107-201203
main35370-33043i201312

15 parts on this diagram · 2 diagrams in section
