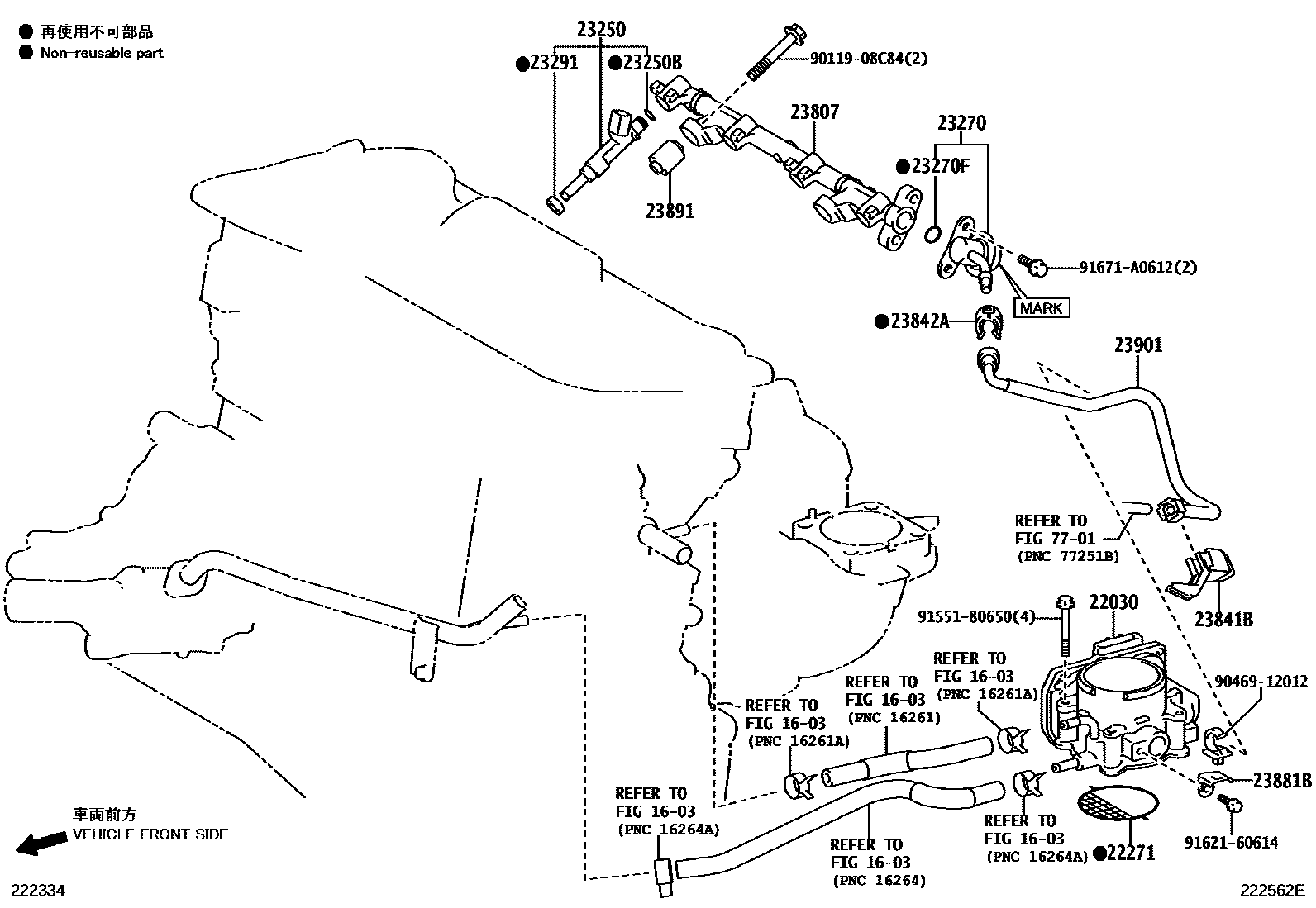

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0P050i2GR#..GGL1#,GYL1#201203

�i�k�j

main22030-31030i2GR#..GGL1#,GYL1#¥58,000200812-201203

main22030-31030i2GR#..GGL1#,GYL1#¥58,000201203

�i�i�j

main22030-36010i1ARFE..AGL10¥52,700201008-201203

22271GASKET, THROTTLE BODY

main22271-31040i2GR#..GGL1#,GYL1#¥340200812-201203

main22271-36010i1ARFE..AGL10¥0201008-201203

23250INJECTOR ASSY, FUEL

main23209-31090i2GR#..GGL1#,GYL1#¥16,700200812-201203

main23209-39175i1ARFE..AGL10¥12,600201008-201203

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033i2GR#..GGL1#,GYL1#¥140200812-201203

main90301-07037i1ARFE..AGL10¥140201008-201203

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-36010i1ARFE..AGL10¥9,100201008-201109

�}�[�N�@�Q�R�Q�V�O�|�R�U�O�P�O

sub23270-36031

main23270-36031i1ARFE..AGL10201109-201203

�}�[�N�@�Q�R�Q�V�O�|�R�U�O�R�P

main23270-36031i1ARFE..AGL10201203

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i1ARFE..AGL10¥140201008-201203

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i2GRFE..GGL1#¥240200812-201203

main23291-28020i2GRFXE..GYL1#¥310200903-201203

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-36010i1ARFE..AGL10¥9,400201008-201412

sub23814-36040¥7,100

main23814-36040i1ARFE..AGL10¥7,100201412

main23870-31010i2GR#..GGL1#,GYL1#¥18,000200812-201203

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i2GR#..GGL1#,GYL1#¥220200812-201203

main23841-31070i1ARFE..AGL10¥400201008-201203

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i1ARFE..AGL10¥500201008-201203

main23842-31040i2GR#..GGL1#,GYL1#¥630200812-201203

23881BBRACKET, FUEL HOSE

main23881-36010i1ARFE..AGL10¥260201008-201203

23891SPACER, FUEL DELIVERY

main23891-36010i1ARFE..AGL10¥300201412

main23891-37010i1ARFE..AGL10¥240201008-201412

23901TUBE SUB-ASSY, FUEL

main23901-31200i2GRFE..GGL1#¥6,300200812-201203

main23901-31210i2GRFXE..GYL1#¥6,300200903-201203

main23901-31240i1ARFE..AGL10¥5,900201008-201203

7701

9011908C84

main90119-08C84¥110

9046912012

main90469-12012¥210

9155180650

main91551-80650¥80

9162160614

main91621-60614¥120

91671A0612

main91671-A0612¥60

20 parts on this diagram · 3 diagrams in section
