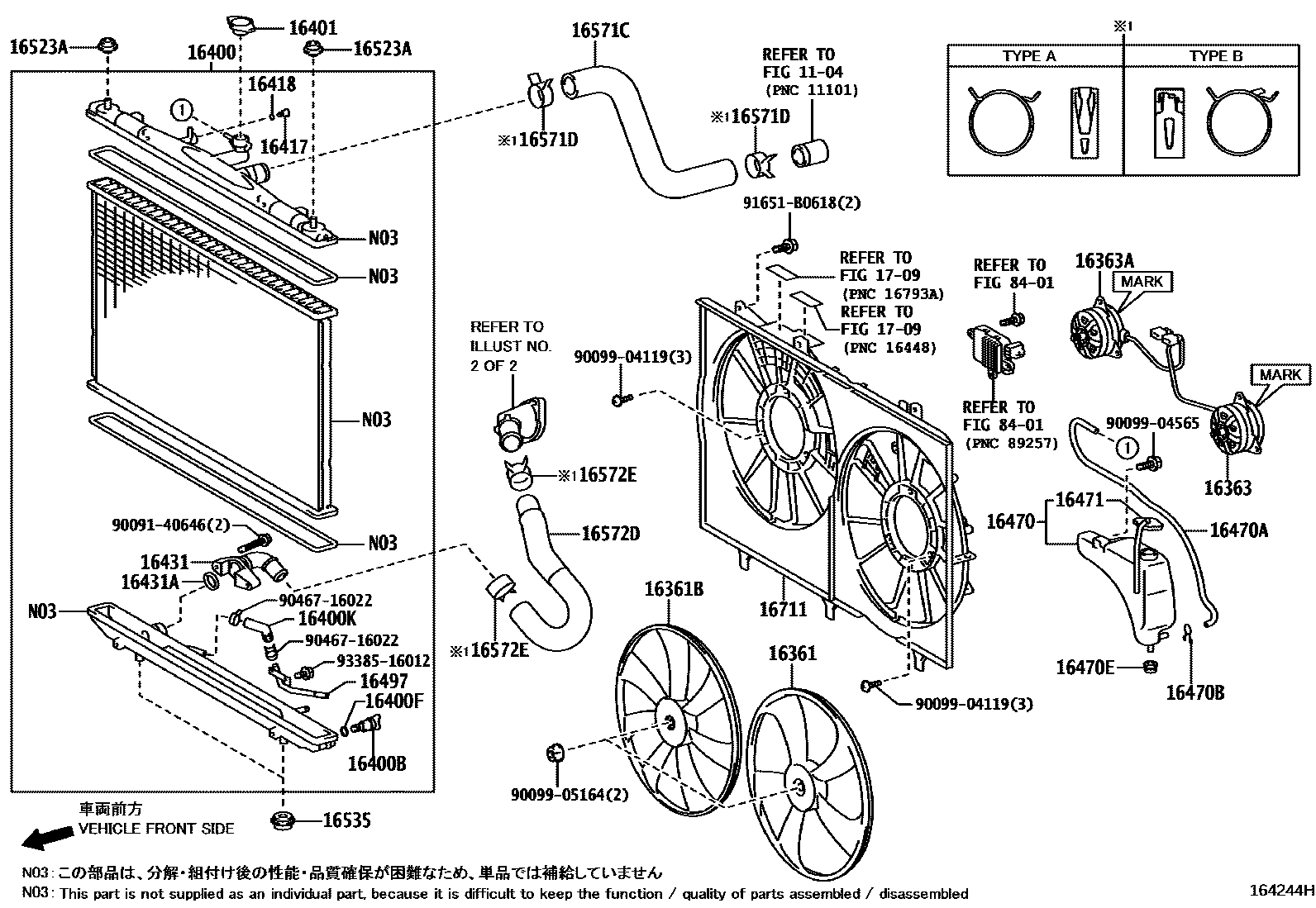

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1104

16361FAN

main16361-20260i2GRFXE..GYL1#200903-201203

main16361-31310i1ARFE..AGL10200812-201203

16361BFAN, NO.2

main16361-20250i2GRFXE..GYL1#200903-201203

main16361-31320i1ARFE..AGL10200812-201203

16363MOTOR, COOLING FAN

main16363-20370i2GRFE..GGL1#200812-200905

sub16363-31330

main16363-31260i2GRFXE..GYL1#201203-201211

main16363-31260i2GRFXE..GYL1#200903-201203

main16363-31261i2GRFXE..GYL1#201211-201509

main16363-31330i2GRFE..GGL1#201203-201211

main16363-31330i2GRFE..GGL1#200906-201203

main16363-31331i2GRFE..GGL1#201211-201509

main16363-70060i1ARFE..AGL10201203-201309

main16363-70060i1ARFE..AGL10201008-201203

16363AMOTOR, COOLING FAN, NO.2

main16363-20390i2GRFXE..GYL1#201203-201211

sub16363-75020

main16363-20390i2GRFXE..GYL1#200903-201203

sub16363-75020

main16363-23050i2GRFE..GGL1#201211-201509

main16363-31160i2GRFE..GGL1#201203-201309

main16363-31160i1ARFE..AGL10200812-201203

main16363-31390i2GRFXE..GYL1#201211-201509

16400RADIATOR ASSY

main16041-36220i1ARFE..AGL10201008-201409

sub16041-36221

main16041-36221i1ARFE..AGL10201410

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i1ARFE..AGL10201008-201203

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1ARFE..AGL10200812-201203

16400KHOSE, WATER, NO.1

main16492-36220i1ARFE..AGL10201008-201203

16401CAP SUB-ASSY, RADIATOR

main16401-31480i2GR#..GGL1#,GYL1#200812-201101

main16401-31520i2GR#..GGL1#,GYL1#201102-201203

sub16401-36020

16417COCK

main16417-28530i1ARFE..AGL10201008-201203

16418PACKING

main16418-20290i1ARFE..AGL10201008-201410

main16418-20291i1ARFE..AGL10201410

16431INLET, RADIATOR WATER

main16431-36050i1ARFE..AGL10201008-201203

16431ARING, O(FOR RADIATOR WATER INLET)

main16492-36050i1ARFE..AGL10201008-201203

16470TANK ASSY, RADIATOR RESERVE

main16470-31110i2GR#..GGL1#,GYL1#200812-201203

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-31260i2GR#..GGL1#,GYL1#200812-201203

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2GR#..GGL1#,GYL1#200812-201203

16470EGROMMET, RADIATOR RESERVE TANK HOSE

main90480-17028i2GR#..GGL1#,GYL1#200812-201203

16471CAP SUB-ASSY, RESERVE TANK

main16405-31070i2GR#..GGL1#,GYL1#200812-201203

16497INLET SUB-ASSY

main16495-36220i1ARFE..AGL10201008-201203

16523ACUSHION, RADIATOR SUPPORT

main16523-20020i1ARFE..AGL10200812-201203

16535SUPPORT, RADIATOR, LOWER

main16535-20030i2GR#..GGL1#,GYL1#200812-201203

main16535-28030i1ARFE..AGL10201008-201203

16571CHOSE, RADIATOR, NO.1

main16571-31260i2GR#..GGL1#,GYL1#200812-201203

main16571-36090i1ARFE..AGL10201008-201203

16571DCLIP, RADIATOR HOSE, NO.1

main90466-35001i1ARFE..AGL10201103-201203

main90466-35001i1ARFE..AGL10201008-201103

main96136-44301i1ARFE..AGL10201103-201203

16572DHOSE, RADIATOR, NO.2

main16572-31320i2GR#..GGL1#,GYL1#200812-201203

main16572-36100i1ARFE..AGL10201008-201203

16572ECLIP, RADIATOR HOSE, NO.2

main90466-35001i1ARFE..AGL10201008-201103

main90466-35001i1ARFE..AGL10201103-201203

main96136-44301i1ARFE..AGL10201103-201203

16711SHROUD, FAN

main16711-31440i2GRFE..GGL1#200812-201210

sub16711-31441

main16711-31441i2GRFE..GGL1#201211

main16711-31460i2GRFXE..GYL1#200903-201210

sub16711-31461

main16711-31461i2GRFXE..GYL1#201211

main16711-36110i1ARFE..AGL10201008-201210

sub16711-36111

main16711-36111i1ARFE..AGL10201211

1709

8401

9009140646

main90091-40646

9009904119

main90099-04119

9009904565

main90099-04565

9009905164

main90099-05164

9046716022

main90467-16022

91651B0618

main91651-B0618

9338516012

main93385-16012

36 parts on this diagram · 6 diagrams in section
