CRANKSHAFT & PISTON

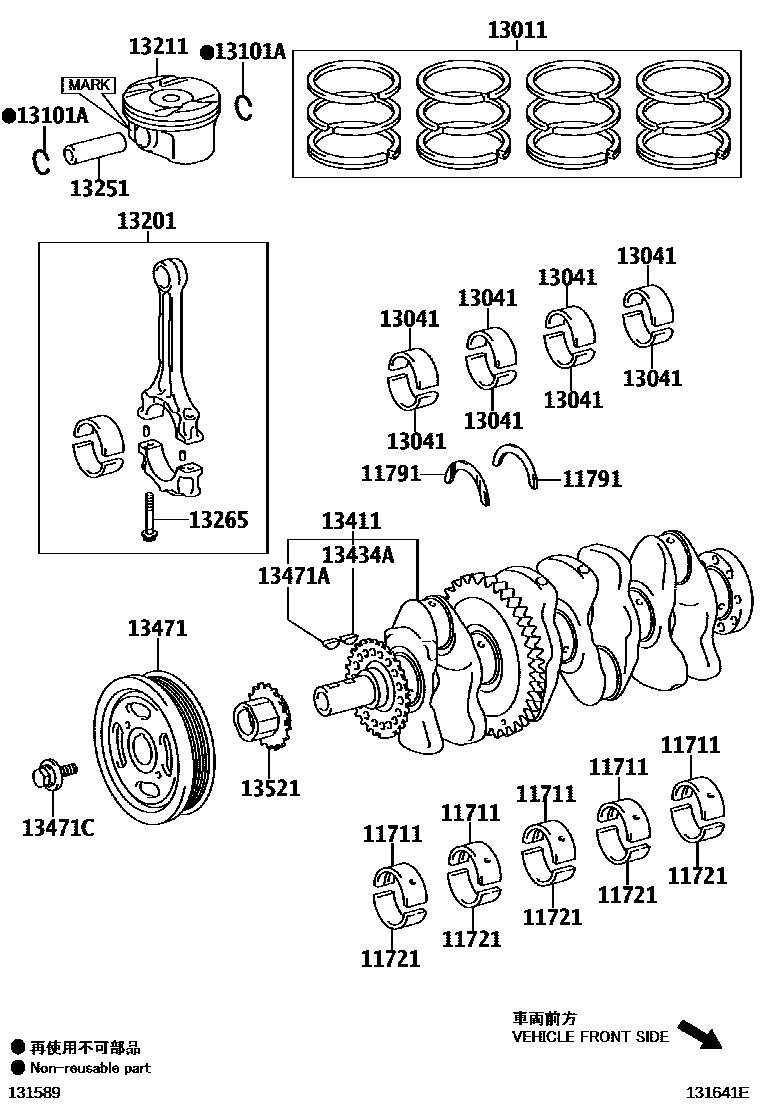

Parts diagram
11711BEARING, CRANKSHAFT
main11071-0P030-01i200812-200906
sub11071-0P050
main11071-0P030-02i200812-200906
sub11071-0P050
main11071-0P030-03i200812-200906
sub11071-0P050
main11071-0P030-04i200812-200906
sub11071-0P050
main11071-0P030-05i200812-200906
sub11071-0P050
main11071-31031-01i200812-201203
sub11071-31060
main11071-31031-01i201203-201502
sub11071-31060
main11071-31031-02i200812-201203
sub11071-31060
main11071-31031-02i201203-201502
sub11071-31060
main11071-31031-03i201203-201502
sub11071-31060
main11071-31031-03i200812-201203
sub11071-31060
main11071-31031-04i200812-201203
sub11071-31060
main11071-31031-04i201203-201502
sub11071-31060
main11071-31031-05i200812-201203
sub11071-31060
main11071-31031-05i201203-201502
sub11071-31060
main11071-31060-01i201503
sub11071-31060
main11071-31060-02i201503
sub11071-31060
main11071-31060-03i201503
sub11071-31060
main11071-31060-04i201503
sub11071-31060
main11071-31060-05i201503
sub11071-31060
main11701-0P030-01i200812-200906
sub11701-0P050
main11701-0P030-02i200812-200906
sub11701-0P050
main11701-0P030-03i200812-200906
sub11701-0P050
main11701-0P030-04i200812-200906
sub11701-0P050
main11701-0P030-05i200812-200906
sub11701-0P050
main11701-31061-01i200812-200902
sub11701-31100
main11701-31061-02i200812-200902
sub11701-31100
main11701-31061-03i200812-200902
sub11701-31100
main11701-31061-04i200812-200902
sub11701-31100
main11701-31061-05i200812-200902
sub11701-31100
main11701-31090-01i201203-201502
sub11701-31100
main11701-31090-01i200902-201203
sub11701-31100
main11701-31090-02i201203-201502
sub11701-31100
main11701-31090-02i200902-201203
sub11701-31100
main11701-31090-03i201203-201502
sub11701-31100
main11701-31090-03i200902-201203
sub11701-31100
main11701-31090-04i201203-201502
sub11701-31100
main11701-31090-04i200902-201203
sub11701-31100
main11701-31090-05i200902-201203
sub11701-31100
main11701-31090-05i201203-201502
sub11701-31100
main11701-31100-01i201503
sub11701-31100
main11701-31100-02i201503
sub11701-31100
main11701-31100-03i201503
sub11701-31100
main11701-31100-04i201503
sub11701-31100
main11701-31100-05i201503
sub11701-31100
main11711-36020-01i201008-201202
main11711-36020-02i201008-201202
main11711-36020-03i201008-201202
main11711-36020-04i201008-201202
main11711-36050-01i201202-201203
main11711-36050-02i201202-201203
main11711-36050-03i201202-201203
main11711-36050-04i201202-201203
11721BEARING, CRANKSHAFT, NO.2
main11721-36020-01i201008-201202
main11721-36020-02i201008-201202
main11721-36020-03i201008-201202
main11721-36020-04i201008-201202
main11721-36050-01i201202-201203
main11721-36050-02i201202-201203
main11721-36050-03i201202-201203
main11721-36050-04i201202-201203
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-36010i201008-201408
main11791-36020i201408
13011RING SET, PISTON
main13011-31150i200812-201411
sub13011-31151
main13011-31151i201412
main13011-31160i200903-201411
sub13011-31161
main13011-31161i201412
main13011-36020i201008-201212
sub13011-36060
main13011-36060i201212-201401
sub13011-36061
main13011-36061i201402-201412
main13011-36140i201412
sub13011-36180
13041BEARING, CONNECTING ROD
main13041-0P040-01i200812-200906
sub13041-0P080
main13041-0P040-02i200812-200906
sub13041-0P080
main13041-0P040-03i200812-200906
sub13041-0P080
main13041-0P040-04i200812-200906
sub13041-0P080
main13041-31070-01i201203-201502
sub13041-31100
main13041-31070-01i200812-201203
sub13041-31100
main13041-31070-02i201203-201502
sub13041-31100
main13041-31070-02i200812-201203
sub13041-31100
main13041-31070-03i200812-201203
sub13041-31100
main13041-31070-03i201203-201502
sub13041-31100
main13041-31070-04i201203-201502
sub13041-31100
main13041-31070-04i200812-201203
sub13041-31100
main13041-31100-01i201503-201506
main13041-31100-02i201503-201506
main13041-31100-03i201503-201506
main13041-31100-04i201503-201506
main13041-31110-01i201506
main13041-31110-02i201506
main13041-31110-03i201506
main13041-31110-04i201506
main13281-36020-01i201008-201312
sub13281-36021
main13281-36020-02i201008-201312
sub13281-36021
main13281-36020-03i201008-201312
sub13281-36021
main13281-36021-01i201401
main13281-36021-02i201401
main13281-36021-03i201401
13101PISTON SUB-ASSY, W/PIN
main13101-31091i200812-200906
sub13101-31092
main13101-31092-A0i200906-201203
sub13101-31092
main13101-31092-B0i200906-201203
sub13101-31092
main13101-31092-C0i200906-201203
sub13101-31092
main13101-31110-A0i200903-201203
sub13101-31110
main13101-31110-B0i200903-201203
sub13101-31110
main13101-31110-C0i200903-201203
sub13101-31110
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025i200812-201203
13201ROD SUB-ASSY, CONNECTING
main13201-39135i200812-201203
sub13201-39137
main13201-39135-A0i201203-201503
sub13201-39135
sub13201-39137
main13201-39135-B0i201203-201503
sub13201-39135
sub13201-39137
main13201-39135-C0i201203-201503
sub13201-39135
sub13201-39137
main13201-39137-A0i201503-201506
main13201-39137-B0i201503-201506
main13201-39137-C0i201503-201506
main13201-39225-A0i201008-201401
sub13201-39226
main13201-39225-B0i201008-201401
sub13201-39226
main13201-39225-C0i201008-201401
sub13201-39226
main13201-39226-A0i201401
main13201-39226-B0i201401
main13201-39226-C0i201401
main13201-39305-A0i201506
main13201-39305-B0i201506
main13201-39305-C0i201506
13211PISTON
main13211-36040-A0i201008-201011
sub13211-36041
main13211-36040-B0i201008-201011
sub13211-36041
main13211-36040-C0i201008-201011
sub13211-36041
main13211-36041-A0i201203-201412
main13211-36041-A0i201011-201203
main13211-36041-B0i201203-201412
main13211-36041-B0i201011-201203
main13211-36041-C0i201203-201412
main13211-36041-C0i201011-201203
main13211-36140-A0i201412-201509
main13211-36140-B0i201412-201509
main13211-36140-C0i201412-201509
13251PIN, PISTON
main13251-28020-A0i201008-201203
main13251-28020-B0i201008-201203
main13251-28020-C0i201008-201203
13265BOLT, CONNECTING ROD
main13265-28010i200812-201203
sub13265-28020
main13265-31020i201008-201203
13411CRANKSHAFT
main13401-31040i200812-201409
sub13401-31041
main13401-31041i201410
sub13401-31021
main13401-36020i201008-201202
sub13401-36021
main13401-36021i201202-201203
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
main95161-30516i201008-201203
13471PULLEY, CRANKSHAFT
main13470-31030i200812-201203
main13470-36010i201008-201203
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main95161-30516i201008-201203
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-16004i200812-201412
main90119-16020i201008-201203
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-31041i200812-201203
main13521-36010i201008-201203
