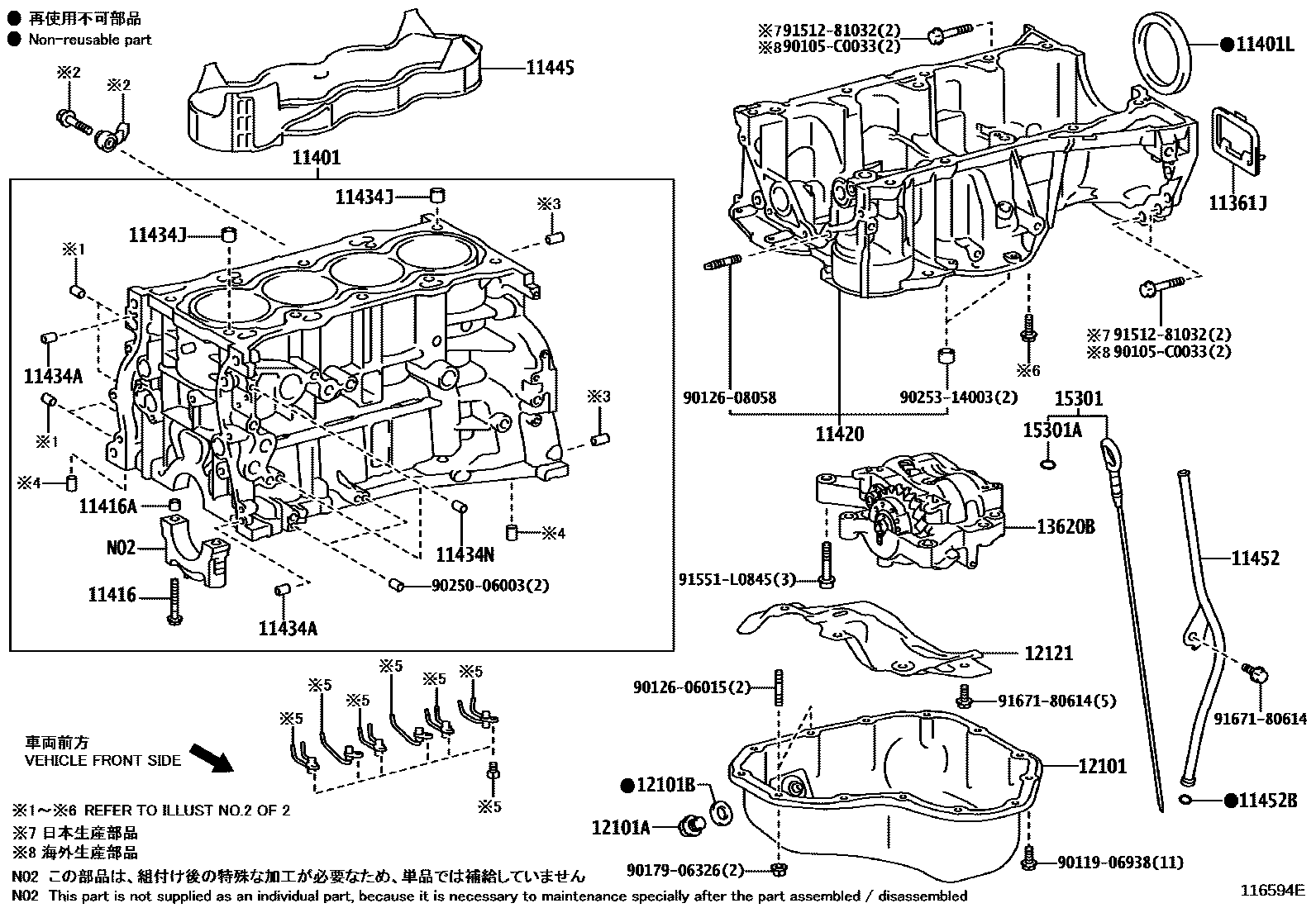

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-28010i1ARFE..AGL10¥540201008-201203

main11361-31060i2GR#..GGL1#,GYL1#¥1,430200812-201203

11401BLOCK SUB-ASSY, CYLINDER

main11401-80774i2GR#..GGL1#,GYL1#¥317,000200812-201210

sub11401-80825¥317,000

main11401-80800i2GR#..GGL1#,GYL1#¥317,000201210-201406

sub11401-80814

main11401-80814i2GR#..GGL1#,GYL1#201407-201412

sub11401-80826¥219,000

sub13011-31151¥17,800

sub13011-31161¥25,600

main11401-80826i2GR#..GGL1#,GYL1#¥219,000201412

sub11401-80A45¥219,000

main11410-39095i1ARFE..AGL10¥278,000201008-201108

sub11410-39135¥278,000

main11410-39135i1ARFE..AGL10¥278,000201108-201405

sub11410-39136¥232,000

main11410-39136i1ARFE..AGL10¥232,000201405

11401LSEAL, ENGINE REAR OIL

main90311-89005i1ARFE..AGL10¥1,390201008-201111

sub90311-89006¥1,390

main90311-89006i1ARFE..AGL10¥1,390201111-201309

sub90311-89013¥1,390

main90311-89013i1ARFE..AGL10¥1,390201309-201408

sub90311-89015¥1,390

main90311-89015i1ARFE..AGL10¥1,390201408

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02154i2GR#..GGL1#,GYL1#¥240200812-201203

main90910-02173i1ARFE..AGL10¥240201008-201203

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017i1ARFE..AGL10¥140201008-201203

11420CRANKCASE ASSY, STIFFENING

main11420-36020i1ARFE..AGL10¥33,500201008-201203

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i2GR#..GGL1#,GYL1#¥50200812-201203

main90250-06003i1ARFE..AGL10¥90201008-201203

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-15001i1ARFE..AGL10¥120201008-201203

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003i1ARFE..AGL10¥90201008-201203

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-36010i1ARFE..AGL10¥1,700201008-201203

11452GUIDE, OIL LEVEL GAGE

main11452-31060i2GR#..GGL1#,GYL1#¥880200812-201203

main11452-36020i1ARFE..AGL10¥2,070201008-201110

sub11452-36021¥2,070

main11452-36021i1ARFE..AGL10¥2,070201110-201309

main11452-36050i1ARFE..AGL10¥1,300201309

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i2GR#..GGL1#,GYL1#¥140200812-201203

main96741-19010i1ARFE..AGL10¥250201008-201203

12101PAN SUB-ASSY, OIL

main12101-31121i2GR#..GGL1#,GYL1#¥26,100200812-201203

main12101-36040i1ARFE..AGL10¥10,500201008-201203

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2GR#..GGL1#,GYL1#¥160200812-201203

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2GR#..GGL1#,GYL1#¥90200812-201203

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-31070i2GR#..GGL1#,GYL1#¥6,000200812-201504

main12121-31120i2GR#..GGL1#,GYL1#¥3,220201504

main12121-36030i1ARFE..AGL10¥1,720201008-201203

13620BBALANCER ASSY, ENGINE

main13620-36011i1ARFE..AGL10¥49,600201008-201211

sub13620-36020¥34,400

main13620-36020i1ARFE..AGL10¥34,400201211-201501

main13620-36060i1ARFE..AGL10¥31,300201501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-31110i2GR#..GGL1#,GYL1#¥1,000200812-201203

main15301-36030i1ARFE..AGL10¥1,200201008-201207

sub15301-36031¥1,000

main15301-36031i1ARFE..AGL10¥1,000201207

sub15301-36032¥750

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i1ARFE..AGL10¥140201008-201509

90105C0033

main90105-C0033

9011906938

main90119-06938¥60

9012606015

main90126-06015¥110

9012608058

main90126-08058¥80

9017906326

main90179-06326¥60

9025006003

main90250-06003¥90

9025314003

main90253-14003¥140

9151281032

main91512-81032¥110

91551L0845

main91551-L0845¥100

9167180614

main91671-80614¥60

29 parts on this diagram · 4 diagrams in section
