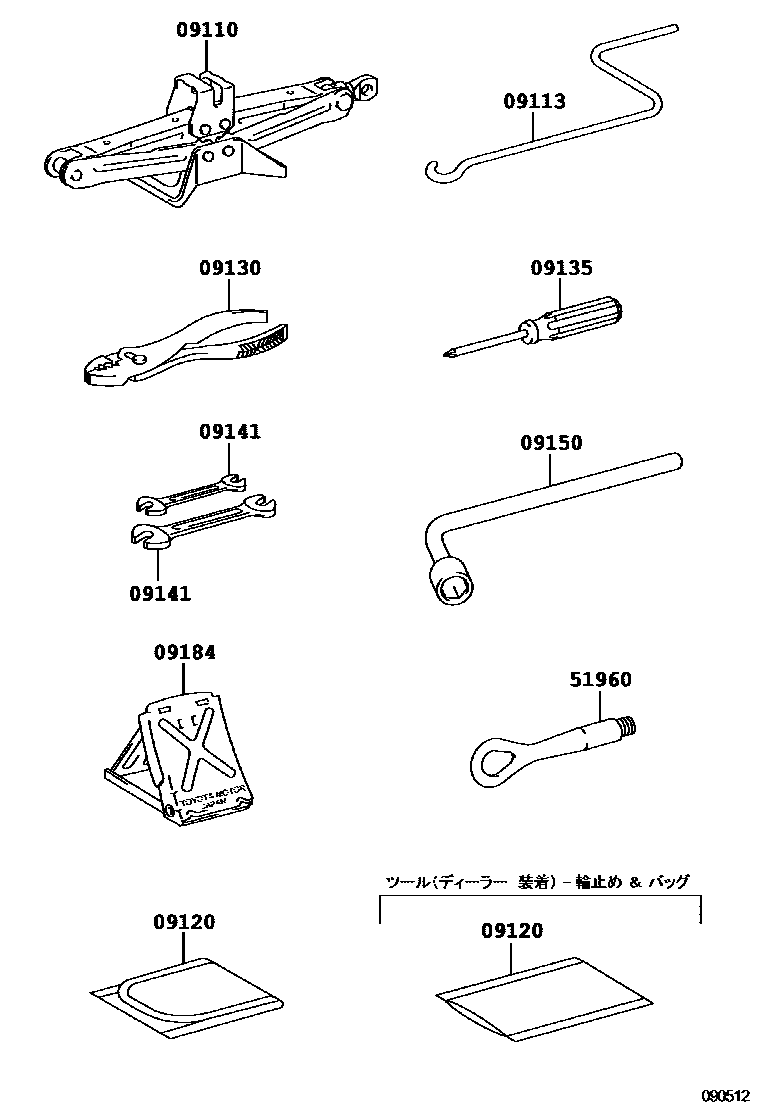

STANDARD TOOL

09110JACK ASSY

main09111-0E010iAGL10,GGL1#,GYL1#200812-201108

main09111-0E011iAGL10,GGL1#,GYL1#201109-201203

09113HANDLE, JACK

main09113-06020iAGL10,GGL1#,GYL1#200812-201203

09120BAG, TOOL

main09120-48010iAGL10,GGL1#,GYL1#200812-201203

09130PLIERS

main09130-50030iGGL1#,GYL1#200812-200906

main09130-50040iAGL10,GGL1#,GYL1#200907-201310

main99913-11500iAGL10,GGL1#,GYL1#201311

09135DRIVER, SCREW

main09135-50050iGGL1#,GYL1#200812-200906

main09135-50060iAGL10,GGL1#,GYL1#201001-201203

main99915-10700iGGL1#,GYL1#200907-200912

09141SPANNER

main09141-50050iGGL1#,GYL1#200812-200906

main09141-50060iGGL1#,GYL1#200812-200906

main09141-60010iAGL10,GGL1#,GYL1#200907-201208

main09141-60020iAGL10,GGL1#,GYL1#200907-201208

main99914-10810iAGL10,GGL1#,GYL1#201209

main99914-11214iAGL10,GGL1#,GYL1#201209

09150WRENCH, HUB NUT BOX

main09150-48010iAGL10,GGL1#,GYL1#200908-201203

main09150-48010iAGL10,GGL1#,GYL1#201206-201509

main09150-50010iGGL1#,GYL1#200812-200908

sub09150-53010

main09150-76020iAGL10,GGL1#,GYL1#201203-201206

09184STOPPER, WHEEL

main09184-00010

51960HOOK ASSY, FRONT

main51961-48050iAGL10,GGL1#,GYL1#200812-201109

sub51961-48051

main51961-48051iAGL10,GGL1#,GYL1#201110-201203

9 parts on this diagram · 1 diagram in section
