MUDGUARD & SPOILER

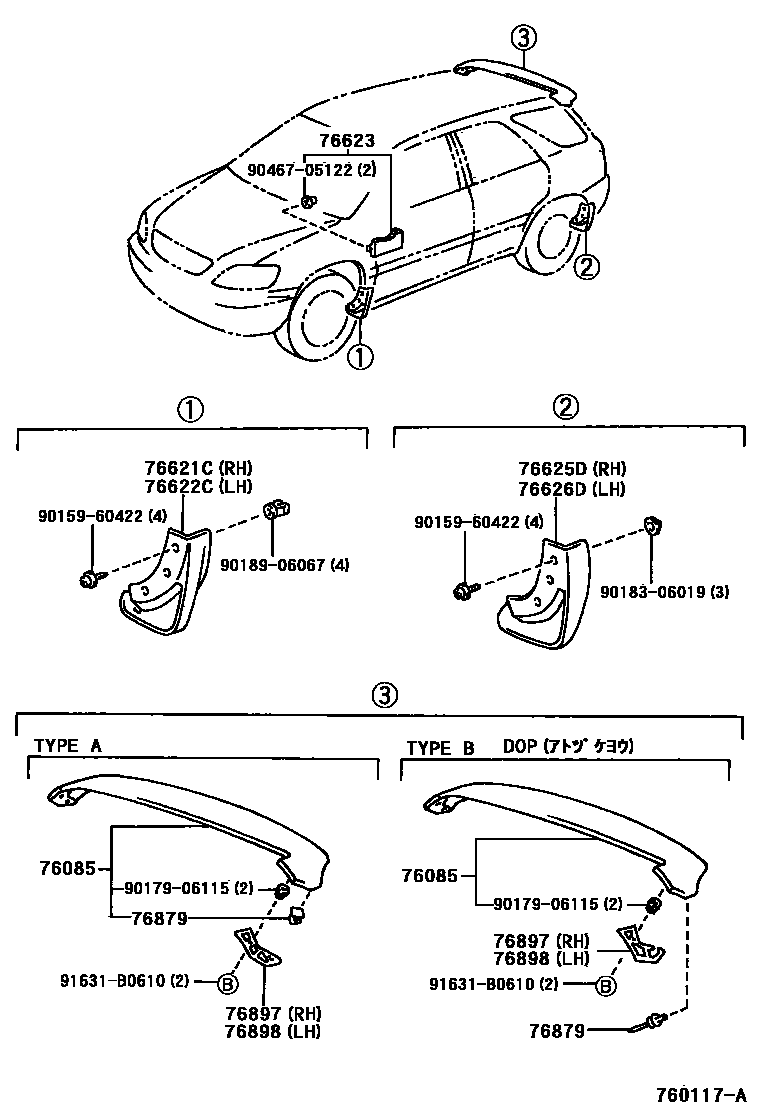

Parts diagram
76085SPOILER SUB-ASSY, REAR
main76871-48900i199904-200011
main76871-48900i199712
main76871-48901i199712
76621CMUDGUAD, FRONT FENDER, RH
main76621-48010-A0i199904-200011
sub76621-48010
main76621-48010-A3i200011
LT.GRAY M.M.,065
sub76621-48010
main76621-48010-A4i200108-200302
sub76621-48010
main76621-48010-B0i199712
LT.GRAIGE ME.,4P2
sub76621-48010
main76621-48010-B1i199904-200011
sub76621-48010
main76621-48010-B4i200011
GRAY M.M.,1C6
sub76621-48010
main76621-48010-B5i200108-200302
sub76621-48010
main76621-48010-D0i199712-200003
DK. GRAY M.,202
sub76621-48010
main76621-48010-D1i199712-200011
RED MC.,3M8
sub76621-48010
main76621-48010-D3i200003
DK. GRAY M.,202
sub76621-48010
main76621-48010-D4i200011
GRAYISH BLUE M.M.,8P6
sub76621-48010
main76621-48010-E1i200011
DK.BLUE ME,8P4
sub76621-48010
main76621-48010-G0i199712-200003
YELLOW SILVER,057
sub76621-48010
main76621-48010-G1i200003-200011
YELLOW SILVER,057
sub76621-48010
main76621-48010-H0i199712-200003
GRAY ME.,6R1
sub76621-48010
main76621-48010-H1i200003-200011
GRAY ME.,6R1
sub76621-48010
main76621-48010-J0i199712-200003
GRAY ME.,1C0
sub76621-48010
main76621-48010-J1i199712-200011
NIGHT BLUE M,8L4
sub76621-48010
main76621-48010-J2i200003
GRAY ME.,1C0
sub76621-48010
76622CMUDGUARD, FRONT FENDER, LH
main76622-48010-A0i199904-200011
sub76622-48010
main76622-48010-A3i200011
LT.GRAY M.M.,065
sub76622-48010
main76622-48010-A4i200108-200302
sub76622-48010
main76622-48010-B0i199712
LT.GRAIGE ME.,4P2
sub76622-48010
main76622-48010-B1i199904-200011
sub76622-48010
main76622-48010-B4i200011
GRAY M.M.,1C6
sub76622-48010
main76622-48010-B5i200108-200302
sub76622-48010
main76622-48010-D0i199712-200003
DK. GRAY M.,202
sub76622-48010
main76622-48010-D1i199712-200011
RED MC.,3M8
sub76622-48010
main76622-48010-D3i200003
DK. GRAY M.,202
sub76622-48010
main76622-48010-D4i200011
GRAYISH BLUE M.M.,8P6
sub76622-48010
main76622-48010-E1i200011
DK.BLUE ME,8P4
sub76622-48010
main76622-48010-G0i199712-200003
YELLOW SILVER,057
sub76622-48010
main76622-48010-G1i200003-200011
YELLOW SILVER,057
sub76622-48010
main76622-48010-H0i199712-200003
GRAY ME.,6R1
sub76622-48010
main76622-48010-H1i200003-200011
GRAY ME.,6R1
sub76622-48010
main76622-48010-J0i199712-200003
GRAY ME.,1C0
sub76622-48010
main76622-48010-J1i199712-200011
NIGHT BLUE M,8L4
sub76622-48010
main76622-48010-J2i200003
GRAY ME.,1C0
sub76622-48010
76623MUDGUARD, FRONT BODY, REAR RH
main76623-48010i199712
76625DMUDGUARD, QUARTER PANEL, REAR RH
main76625-48010-A0i199904-200011
sub76625-48010
main76625-48010-A3i200011
LT.GRAY M.M.,065
sub76625-48010
main76625-48010-A4i200108-200302
sub76625-48010
main76625-48010-B0i199712
LT.GRAIGE ME.,4P2
sub76625-48010
main76625-48010-B1i199904-200011
sub76625-48010
main76625-48010-B4i200011
GRAY M.M.,1C6
sub76625-48010
main76625-48010-B5i200108-200302
sub76625-48010
main76625-48010-D0i199712-200003
DK. GRAY M.,202
sub76625-48010
main76625-48010-D1i199712-200011
RED MC.,3M8
sub76625-48010
main76625-48010-D3i200003
DK. GRAY M.,202
sub76625-48010
main76625-48010-D4i200011
GRAYISH BLUE M.M.,8P6
sub76625-48010
main76625-48010-E1i200011
DK.BLUE ME,8P4
sub76625-48010
main76625-48010-G0i199712-200003
YELLOW SILVER,057
sub76625-48010
main76625-48010-G1i200003-200011
YELLOW SILVER,057
sub76625-48010
main76625-48010-H0i199712-200003
GRAY ME.,6R1
sub76625-48010
main76625-48010-H1i200003-200011
GRAY ME.,6R1
sub76625-48010
main76625-48010-J0i199712-200003
GRAY ME.,1C0
sub76625-48010
main76625-48010-J1i199712-200011
NIGHT BLUE M,8L4
sub76625-48010
main76625-48010-J2i200003
GRAY ME.,1C0
sub76625-48010
76626DMUDGUARD, QUARTER PANEL, REAR LH
main76626-48010-A0i199904-200011
sub76626-48010
main76626-48010-A3i200011
LT.GRAY M.M.,065
sub76626-48010
main76626-48010-A4i200108-200302
sub76626-48010
main76626-48010-B0i199712
LT.GRAIGE ME.,4P2
sub76626-48010
main76626-48010-B1i199904-200011
sub76626-48010
main76626-48010-B4i200011
GRAY M.M.,1C6
sub76626-48010
main76626-48010-B5i200108-200302
sub76626-48010
main76626-48010-D0i199712-200003
DK. GRAY M.,202
sub76626-48010
main76626-48010-D1i199712-200011
RED MC.,3M8
sub76626-48010
main76626-48010-D3i200003
DK. GRAY M.,202
sub76626-48010
main76626-48010-D4i200011
GRAYISH BLUE M.M.,8P6
sub76626-48010
main76626-48010-E1i200011
DK.BLUE ME,8P4
sub76626-48010
main76626-48010-G0i199712-200003
YELLOW SILVER,057
sub76626-48010
main76626-48010-G1i200003-200011
YELLOW SILVER,057
sub76626-48010
main76626-48010-H0i199712-200003
GRAY ME.,6R1
sub76626-48010
main76626-48010-H1i200003-200011
GRAY ME.,6R1
sub76626-48010
main76626-48010-J0i199712-200003
GRAY ME.,1C0
sub76626-48010
main76626-48010-J1i199712-200011
NIGHT BLUE M,8L4
sub76626-48010
main76626-48010-J2i200003
GRAY ME.,1C0
sub76626-48010
76879CLIP, REAR SPOILER, NO.1
main76879-10030i199712
main76879-22020i199712
76897PROTECTOR, REAR SPOILER, SIDE RH
main76897-48010i199712
main76897-48020i199712
76898PROTECTOR, REAR SPOILER, SIDE LH
main76898-48010i199712
main76898-48020i199712
9015960422
main90159-60422
9017906115
main90179-06115
9018306019
main90183-06019
9018906067
main90189-06067
9046705122
main90467-05122
91631B0610
main91631-B0610

15 parts on this diagram · 1 diagram in section
