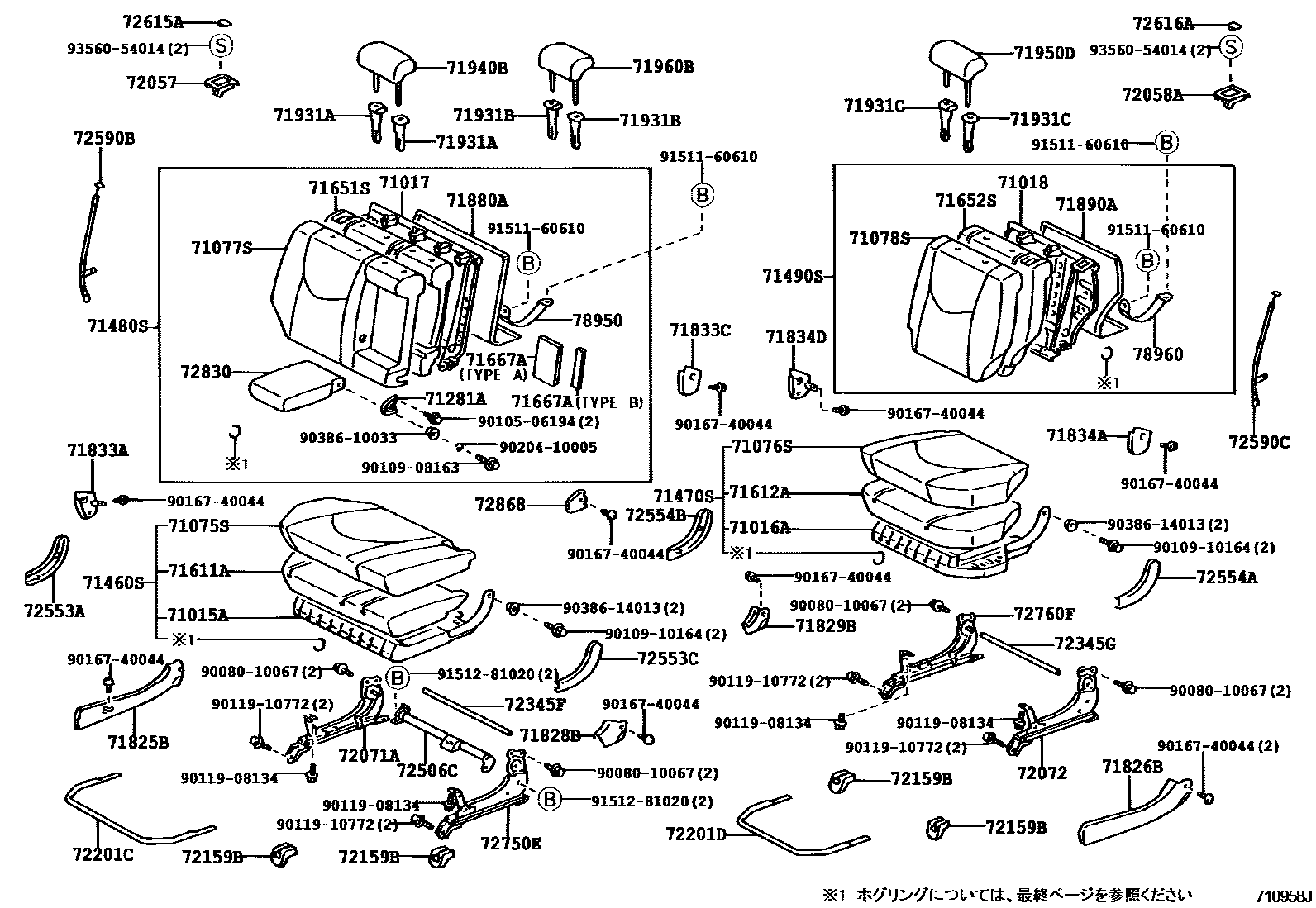

REAR SEAT & SEAT TRACK
71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH
71016AFRAME SUB-ASSY, REAR SEAT CUSHION, LH
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
71076SCOVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)
IVORY,TRIM0#
MEDIUM GRAY,TRIM00,1#
sub71076-48021
sub71076-48021
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
71281AHINGE, REAR SEAT CENTER ARMREST
71460SCUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)
***,IVORY,TRIM0#
***,MEDIUM GRAY,TRIM1#
71470SCUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
***,IVORY,TRIM0#
***,MEDIUM GRAY,TRIM1#
71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
***,IVORY,TRIM0#
***,MEDIUM GRAY,TRIM1#
71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
***,IVORY,TRIM0#
***,MEDIUM GRAY,TRIM1#
71611APAD, REAR SEAT CUSHION, RH
71612APAD, REAR SEAT CUSHION, LH
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71667APAD, REAR SEATBACK, CENTER A
71825BMOULDING, REAR SEAT CUSHION, RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
IVORY,TRIM0#
BLACK,TRIM2#
71826BMOULDING, REAR SEAT CUSHION, LH
IVORY,TRIM0#
MD.GRAY,TRIM1#
IVORY,TRIM0#
BLACK,TRIM2#
71828BMOULDING, REAR SEAT CUSHION, REAR RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
IVORY,TRIM0#
BLACK,TRIM2#
71829BMOULDING, REAR SEAT CUSHION, REAR LH
IVORY,TRIM0#
MD.GRAY,TRIM1#
IVORY,TRIM0#
BLACK,TRIM2#
71833ACOVER, REAR SEAT RECLINING, NO.1 RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
BLUE GRAY,TRIM1#
IVORY,TRIM0#
BLACK,TRIM2#
71833CCOVER, REAR SEAT RECLINING, NO.2 RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
BLUE GRAY,TRIM1#
IVORY,TRIM0#
BLACK,TRIM2#
71834ACOVER, REAR SEAT RECLINING, NO.1 LH
IVORY,TRIM0#
MD.GRAY,TRIM1#
BLUE GRAY,TRIM1#
IVORY,TRIM0#
BLACK,TRIM2#
71834DCOVER, REAR SEAT RECLINING, LH
IVORY,TRIM0#
MD.GRAY,TRIM1#
BLUE GRAY,TRIM1#
IVORY,TRIM0#
BLACK,TRIM2#
71880ACARPET ASSY, REAR SEATBACK BOARD, RH
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
IVORY,TRIM0#
BLACK,TRIM2#
71890ACARPET ASSY, REAR SEATBACK BOARD, LH
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
IVORY,TRIM0#
BLACK,TRIM2#
71940BHEADREST ASSY, REAR SEAT, RH
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
71950DHEADREST ASSY, REAR SEAT, LH
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
IVORY,TRIM0#
BLACK,TRIM2#
72058ALEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH
IVORY,TRIM0#
MD.GRAY,TRIM1#
IVORY,TRIM0#
BLACK,TRIM2#
72071AADJUSTER SUB-ASSY, REAR SEAT RELINING, RH
72072ADJUSTER SUB-ASSY, REAR SEAT RECLINING, LH
72159BCOVER, REAR SEAT TRACK BRACKET, OUTER
IVORY,TRIM0#
MD.GRAY,TRIM1#
BLACK,TRIM2#
72201CHANDLE SUB-ASSY, SEAT TRACK, RH
72201DHANDLE SUB-ASSY, SEAT TRACK, LH
72345FPIPE, RECLINING CONNECTING, RH
72345GPIPE, RECLINING CONNECTING, LH
72506CROD SUB-ASSY, RECLINING CONNECTING
72553APROTECTOR, RECLINING COVER, RH
72553CPROTECTOR, RECLINING COVER, RH
72554APROTECTOR, RECLINING COVER, LH
72554BPROTECTOR, RECLINING COVER, LH
72590BCABLE ASSY, RECLINING REMOTE CONTROL
72590CCABLE ASSY, RECLINING REMOTE CONTROL
72615ACOVER, REAR SEATBACK LOCK STRIKER, RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
BLACK,TRIM2#
72616ACOVER, REAR SEATBACK LOCK STRIKER, LH
IVORY,TRIM0#
MD.GRAY,TRIM1#
BLACK,TRIM2#
72750EADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH
72760FADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER LH
72830ARMREST ASSY, REAR SEAT, CENTER
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
72868COVER, CENTER ARMREST HINGE, RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
BLACK,TRIM2#
78950BAND ASSY, FOLD SEAT STOPPER, NO.1
78960BAND ASSY, FOLD SEAT STOPPER, NO.2
9008010067
main90080-10067
9010506194
main90105-06194
9010908163
main90109-08163
9010910164
main90109-10164
9011908134
main90119-08134
9011910772
main90119-10772
9016740044
main90167-40044
9020410005
main90204-10005
9038610033
main90386-10033
9038614013
main90386-14013
9151160610
main91511-60610
9151281020
main91512-81020
9356054014
main93560-54014
71 parts on this diagram · 3 diagrams in section
