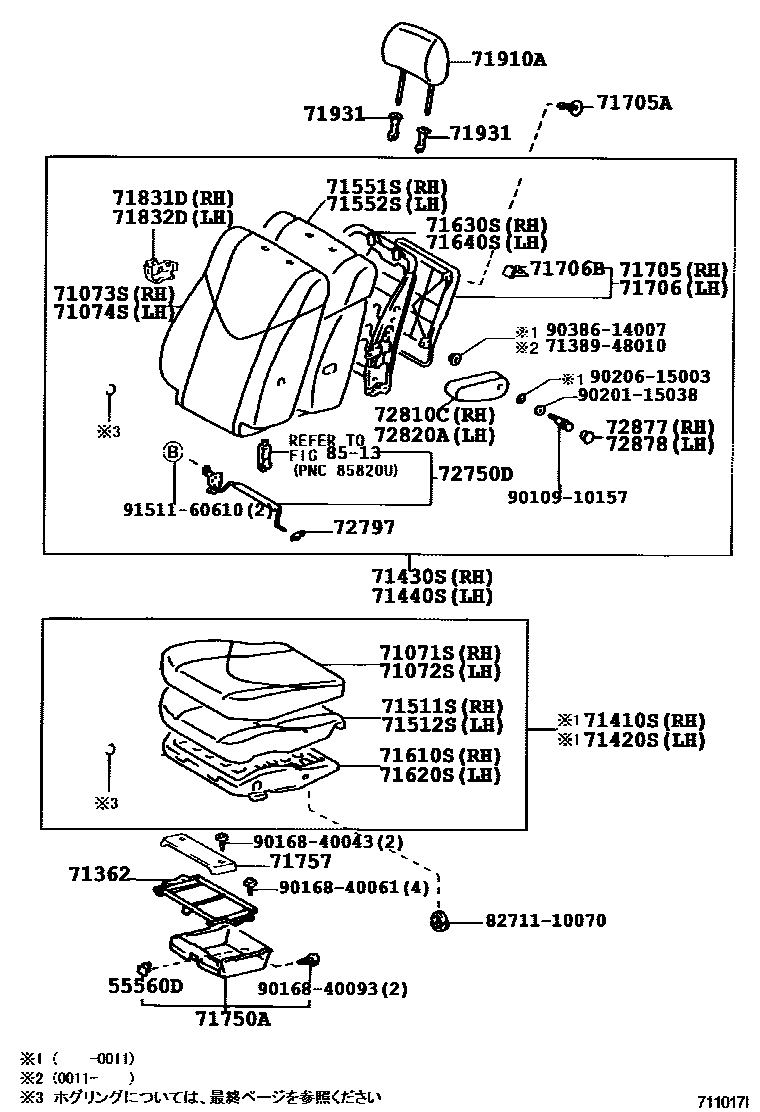

FRONT SEAT & SEAT TRACK
55560DLOCK ASSY, SEAT UNDER TRAY
IVORY,TRIM0#
MD.GRAY,TRIM1#
BLACK,TRIM2#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
sub71073-48180
sub71073-48180
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
sub71074-48180
sub71074-48180
71362BRACKET, FRONT SEAT SET, NO.2
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
***,IVORY,TRIM0#
***,MEDIUM GRAY,TRIM1#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
***,IVORY,TRIM0#
***,MEDIUM GRAY,TRIM1#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
***,IVORY,TRIM0#
***,MEDIUM GRAY,TRIM1#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
***,IVORY,TRIM0#
***,MEDIUM GRAY,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
IVORY,TRIM0#
71705ACLIP(FOR FRONT SEATBACK BOARD)
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
IVORY,TRIM0#
71706BCLIP, FRONT SEATBACK BOARD
71750ATRAY ASSY, FRONT SEAT UNDER
71757PLATE, SEAT UNDER TRAY, NO.1
71831DCOVER, FRONT SEAT HINGE, RH
71832DCOVER, FRONT SEAT HINGE, LH
71910AHEADREST ASSY, FRONT SEAT
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
72797SPACER, LUMBAR SUPPORT
72810CARMREST ASSY, FRONT SEAT, CENTER
72820AARMREST ASSY, SEAT, LH
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
72877COVER, SEAT ARMREST, RH
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
MD.GRAY,TRIM1#
72878COVER, SEAT ARMREST, LH
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
MD.GRAY,TRIM1#
8513
7138948010SPACER, CENTER SEAT HINGE
8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9010910157
9016840043
9016840061
9016840093
9020115038
9020615003
9038614007
9151160610
45 parts on this diagram · 5 diagrams in section
