DECK BOARD & DECK TRIM COVER

58387BPLATE, REAR FLOOR FINISH

main58387-48010-A0iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main58387-48010-B0iMCU1#,SXU1#199712-200011

MD.GRAY,TRIM1#

main58387-48010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

58401EBOARD SUB-ASSY, DECK

main58410-48010-A1iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main58410-48010-B1iMCU1#,SXU1#199712-200011

MEDIUM GRAY,TRIM1#

main58410-48010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

58408ABOARD SUB-ASSY, DECK, NO.2

main58408-48010-A2iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main58408-48010-B2iMCU1#,SXU1#199712-200011

MEDIUM GRAY,TRIM1#

main58408-48010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

58409ABOARD SUB-ASSY, DECK, NO.3

main58409-48010-A2iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main58409-48010-B2iMCU1#,SXU1#199712-200011

MEDIUM GRAY,TRIM1#

main58409-48010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

58416CBRACKET, DECK BOARD, NO.1 RH

main58416-48010iACU1#,MCU1#,SXU1#199712

58417CBRACKET, DECK BOARD, NO.1 LH

main58417-48010iACU1#,MCU1#,SXU1#199712

58443CUSHION, DECK BOARD, NO.1

main58443-33010×2iACU1#,MCU1#,SXU1#199712

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-48010×4iACU1#,MCU1#,SXU1#199712

58470CHANDLE ASSY, DECK BOARD

main58470-33010-A0iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main58470-33010-B1iMCU1#,SXU1#199712-200011

MD.GRAY,TRIM1#

main58470-33010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

64421ATRAY, LUGGAGE COMPARTMENT

main64421-48010iACU1#,MCU1#,SXU1#199712

64714CCOVER, DECK SIDE TRIM, RH

main64714-48010-A0iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main64714-48010-B0iMCU1#,SXU1#199712-200011

MD.GRAY,TRIM1#

main64714-48010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

64715CCOVER, DECK SIDE TRIM, LH

main64715-48010-A0iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main64715-48010-B0iMCU1#,SXU1#199712-200011

MD.GRAY,TRIM1#

main64715-48010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-10161×4iACU1#,MCU1#,SXU1#199712

64721ECOVER, BACK DOOR

main64721-48010-A1iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main64721-48010-B1iMCU1#,SXU1#199712-200011

MEDIUM GRAY,TRIM1#

main64721-48010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-48010-A0iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main64730-48010-B0iMCU1#,SXU1#199712-200011

MEDIUM GRAY,TRIM1#

main64730-48010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-11089×2iACU1#,MCU1#,SXU1#199712

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-48010-A0iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main64740-48010-B0iMCU1#,SXU1#199712-200011

MEDIUM GRAY,TRIM1#

main64740-48010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

64741BBOX, DECK SIDE TRIM, RH

main64741-48010iACU1#,MCU1#,SXU1#199712

main64741-48020iACU1#,MCU1#200011

64742CBOX, DECK SIDE TRIM, LH

main64742-48010iACU1#,MCU1#,SXU1#199712

64753CPLATE, REAR FLOOR FINISH SIDE, RH

main64753-48010-A0iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main64753-48010-B0iMCU1#,SXU1#199712-200011

MD.GRAY,TRIM1#

main64753-48010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

64754CPLATE, REAR FLOOR FINISH SIDE, LH

main64754-48010-A0iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main64754-48010-B0iMCU1#,SXU1#199712-200011

MD.GRAY,TRIM1#

main64754-48010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

64779TRAY, SPARE WHEEL COVER

main64779-48010iMCU1#,SXU1#199712-200011

main64779-48020iACU1#,MCU1#200011

64783DREINFORCEMENT, SPARE WHEEL COVER

main64783-48010iACU1#,MCU1#,SXU1#199712

64784CREINFORCEMENT, SPARE WHEEL COVER, NO.2

main64784-48010iACU1#,MCU1#,SXU1#199712

64910JCOVER ASSY, TONNEAU

main64910-48010-B3iMCU1#,SXU1#199712-200011

SHADOW GRAY,TRIM1#

main64910-48010-E2iMCU1#,SXU1#199712-200011

SANDAL WOOD,TRIM0#

main64910-48020-C0iACU1#,MCU1#200011

BLACK,TRIM2#

main64910-48020-E0iACU1#,MCU1#200011

SANDAL WOOD,TRIM0#

64982BKNOB, DECK SIDE TRIM LID

main64982-16020-A0iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main64982-16020-B4iMCU1#,SXU1#199712-200011

MD.GRAY,TRIM1#

main64982-16020-C0iACU1#,MCU1#200011

BLACK,TRIM2#

73530DPANEL ASSY, REAR SEAT SUB FLOOR

main73530-48010iMCU1#,SXU1#199712-200007

main73530-48011iACU1#,MCU1#,SXU1#200007

9011906480

main90119-06480

9017906070

main90179-06070

9018305048

main90183-05048

9046705115

main90467-05115

9046708186C0

main90467-08186C0

9046710161

main90467-10161

9046711089

main90467-11089

9046804157

main90468-04157

9054103112

main90541-03112

9164180816

main91641-80816

9356054012

main93560-54012

9356614512

main93566-14512

9422360600

main94223-60600

9422380800

main94223-80800

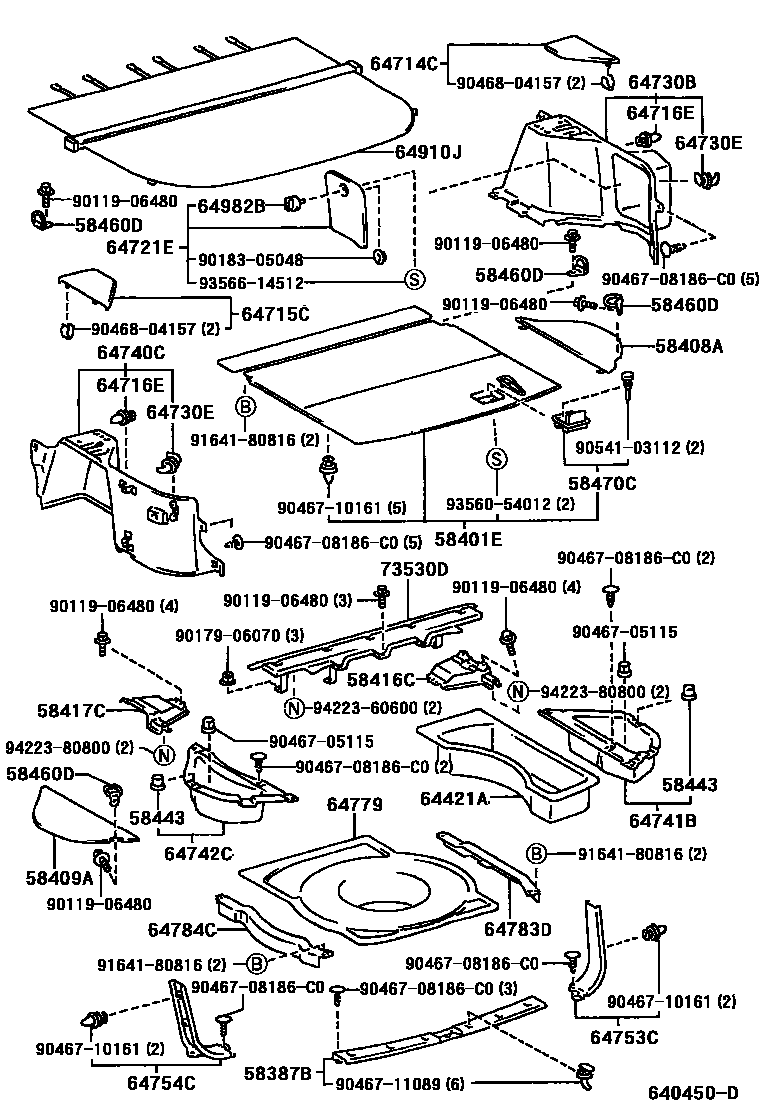

41 parts on this diagram · 1 diagram in section
