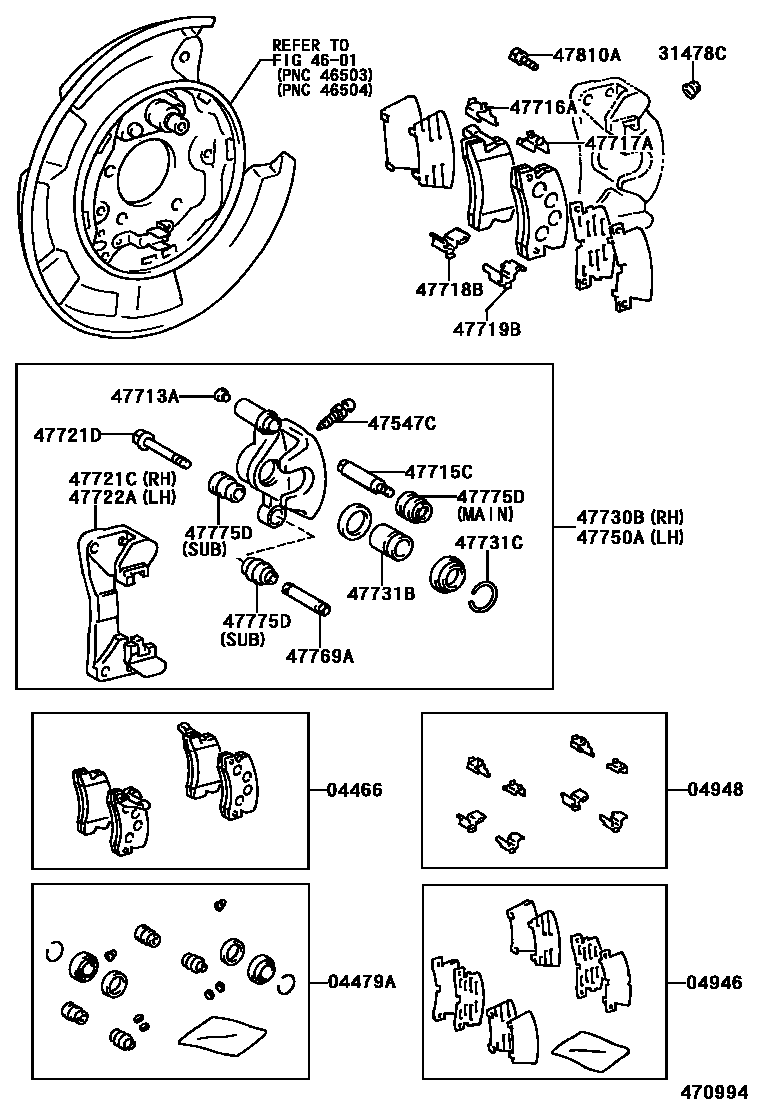

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-33050i199712-200111

main04466-33110i200111

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-48010i199712

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-32070i199712-200111

main04946-48020i200111

04948FITTING KIT, DISC BRAKE, REAR

main04948-33010i199712

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2i199712

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2i199712

47713APLUG, HOLE(FOR REAR DISC BRAKE CYLINDER)

main90950-01538×2i199712

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-33020×2i199712

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-33070×2i199712

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-33050×2i199712

47718BPLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)

main47718-33010×2i199712

47719BPLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)

main47719-33010×2i199712

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-20321i199712

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90119-08A98×2i199712

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-20321i199712

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-48020i199712

47731BPISTON, REAR DISC BRAKE

main47731-48010×2i199712

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006×2i199712

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-48020i199712

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-32020×2i199712

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-16020×4i199712

main47775-32020×2i199712

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379×4i199712

main90119-10445×4i199712

23 parts on this diagram · 1 diagram in section
