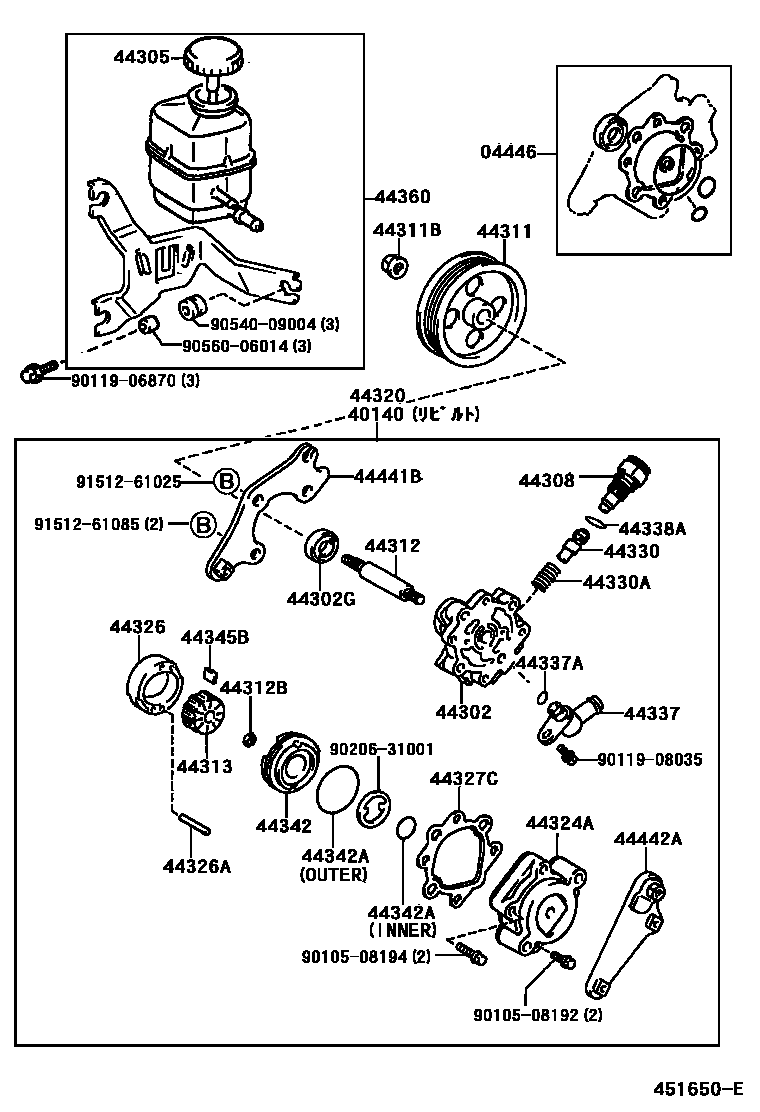

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0003 1 0004 1 0005 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iACU1#200011

main04446-34010iMCU1#,SXU1#199712

sub04446-53030

40140PUMP ASSY,VANE REBUILT

main40140-48010iSXU1#199712-200011

main40140-48020iMCU1#199712

sub44320-48020

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-32061iSXU1#199712-200011

main44302-33020iMCU1#199712-200011

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18015iMCU1#,SXU1#199712-200011

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iACU1#200011-200302

sub44305-28060

main44305-32020iMCU1#,SXU1#199712-200302

sub44305-32040

44308UNION SUB-ASSY, PRESSURE PORT

main44308-33060iSXU1#199712-200011

main44308-48010iMCU1#199712-200011

44311PULLEY, VANE PUMP

main44311-28110iMCU1#200108

main44311-32050iSXU1#199712-200011

main44311-33020iMCU1#199712-200108

sub44311-28110

44311BNUT(FOR VANE PUMP PULLEY)

main90178-12003iMCU1#,SXU1#199805

main90179-12022iMCU1#,SXU1#199712-199805

44312SHAFT, VANE PUMP

main44312-32020iMCU1#,SXU1#199712-200011

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iMCU1#,SXU1#199712-200011

44313ROTOR, VANE PUMP

main44313-26060iMCU1#,SXU1#199712-200011

main44313-26070iMCU1#,SXU1#199712-200011

main44313-26080iMCU1#,SXU1#199712-200011

main44313-26090iMCU1#,SXU1#199712-200011

main44313-26100iMCU1#,SXU1#199712-200011

44320PUMP ASSY, VANE

main44320-48010iSXU1#199712-200011

sub44320-33060

main44320-48020iMCU1#199712

44324AHOUSING, PUMP, REAR

main44324-33030iMCU1#199712-200011

main44324-34010iSXU1#199712-200011

44326RING, CAM(FOR VANE PUMP)

main44325-12270iMCU1#199712-200011

main44325-12280iMCU1#199712-200011

main44325-12290iMCU1#199712-200011

main44325-12300iMCU1#199712-200011

main44325-12310iMCU1#199712-200011

main44325-32270iSXU1#199712-200011

main44325-32280iSXU1#199712-200011

main44325-32290iSXU1#199712-200011

main44325-32300iSXU1#199712-200011

main44325-32310iSXU1#199712-200011

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04071iMCU1#,SXU1#199712-200011

44327CGASKET, VANE PUMP HOUSING

main44327-26010iMCU1#,SXU1#199712-200011

44330VALVE ASSY, FLOW CONTROL

main44330-26071iMCU1#,SXU1#199712-200011

main44330-26081iMCU1#,SXU1#199712-200011

main44330-26091iMCU1#,SXU1#199712-200011

main44330-26101iMCU1#,SXU1#199712-200011

main44330-26111iMCU1#,SXU1#199712-200011

main44330-26121iMCU1#,SXU1#199712-200011

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-13034iMCU1#,SXU1#199712-200011

44337UNION, POWER STEERING SUCTION PORT

main44337-28030iSXU1#199712-200011

main44337-33030iMCU1#199712

main44337-48010iACU1#200011

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iMCU1#,SXU1#199712

main90301-11020iACU1#200011

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19013iMCU1#,SXU1#199712-200011

sub90301-19018

44342PLATE, VANE PUMP SIDE, REAR

main44342-26020iMCU1#,SXU1#199712-200011

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-18007iMCU1#,SXU1#199712-200011

main90301-47001iMCU1#,SXU1#199712-200011

44345BPLATE, VANE PUMP

main44345-26010iMCU1#,SXU1#199712-200011

main44345-26020iMCU1#,SXU1#199712-200011

main44345-26030iMCU1#,SXU1#199712-200011

main44345-26040iMCU1#,SXU1#199712-200011

main44345-26050iMCU1#,SXU1#199712-200011

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-48010iMCU1#,SXU1#199712-200302

main44360-48020iACU1#200011-200302

44441BBRACKET, PUMP, FRONT

main44441-33011iSXU1#199712-200011

main44441-33022iMCU1#199712

44442ABRACKET, VANE PUMP, REAR

main44442-33011iSXU1#199712-200011

main44442-33021iMCU1#199712

9010508192

main90105-08192

9010508194

main90105-08194

9011906870

main90119-06870

9011908035

main90119-08035

9020631001

main90206-31001

9054009004

main90540-09004

9056006014

main90560-06014

9151261025

main91512-61025

9151261085

main91512-61085

36 parts on this diagram · 4 diagrams in section
