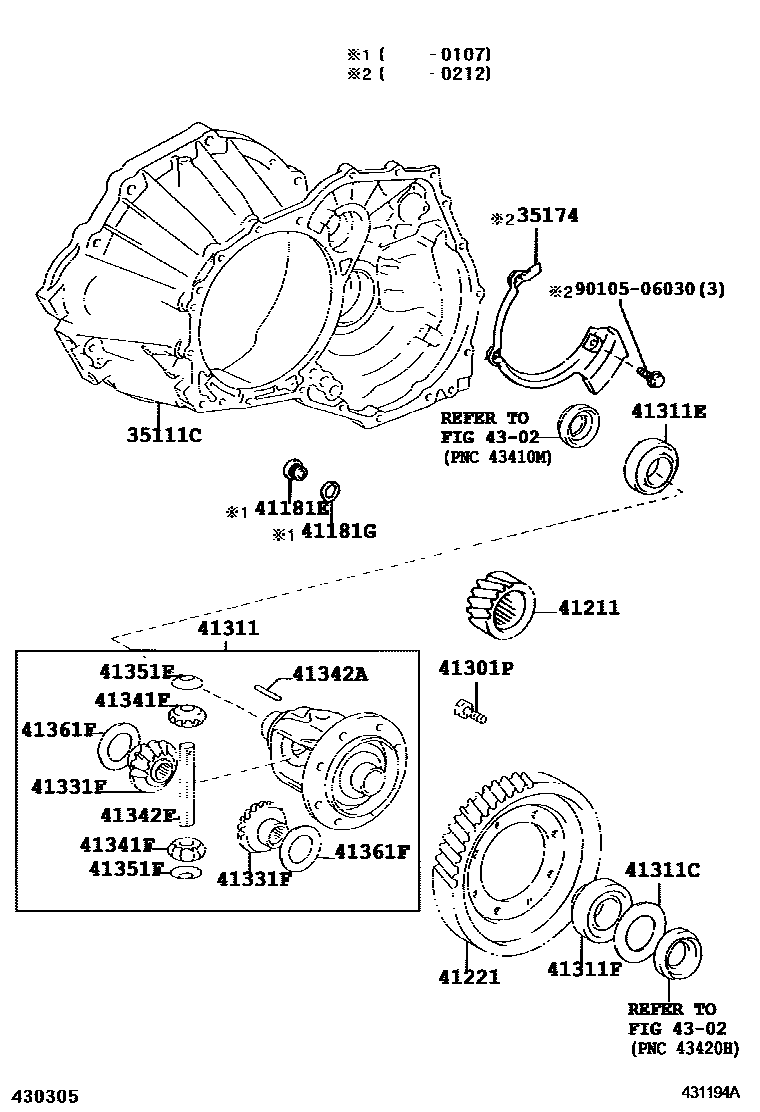

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1U140E 0002 1U140F 0003 1U241E

35111CHOUSING, TRANSAXLE

main35105-21010iMCU15,SXU15199712-200205

main35105-21011iMCU15200205

sub35104-28083

sub35105-48023

sub90105-06320

sub90301-06008

sub90301-10189

main35105-28030iACU10200011-200108

main35105-28031iACU10200108

main35105-42010iACU15200011-200105

main35105-42011iACU15200105-200108

main35105-42012iACU15200108

sub35105-42013

main35105-48010iMCU10,SXU10199712-200205

main35105-48011iMCU10200205

sub35104-28083

sub35105-28013

sub35105-48060

sub90105-06320

sub90301-06008

sub90301-10189

35174SEPARATOR, TRANSAXLE HOUSING OIL

main35174-21010iMCU15,SXU15199712-200212

main35174-48010iMCU10,SXU10199712-200212

41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)

main90341-18021iMCU1#,SXU1#199712-200107

41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)

main90430-18008iMCU1#,SXU1#199712-200107

41211PINION, DIFFERENTIAL DRIVE

main41211-21040iMCU10199712

sub41211-28H01

main41211-42040iACU10200011

main41211-48010iMCU15,SXU10199712

sub41211-42H01

main41211-48020iSXU15199712-200011

sub41211-48H01

main41211-48030iACU15200011

41221GEAR, FRONT DIFFERENTIAL RING

main41221-21060iMCU10199712

sub41211-28H01

main41221-42070iACU10200011

main41221-48010iMCU15,SXU10199712

main41221-48020iSXU15199712-200011

sub41211-48H01

main41221-48030iACU15200011

41301PSCREW(FOR FRONT DIFFERENTIAL CASE)

main90105-12302×16iACU15,MCU15,SXU15199712

main90105-12303×12iMCU10,SXU10199712

41311CASE, FRONT DIFFERENTIAL

main41301-28090iACU10200011

main41301-48010iMCU10,SXU10199712

sub41301-28080

41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)

main90564-68006iACU10200011

main90564-68007iACU10200011

main90564-68008iACU10200011

main90564-68009iACU10200011

main90564-68010iACU10200011

main90564-68011iACU10200011

main90564-68012iACU10200011

main90564-68013iACU10200011

main90564-68014iACU10200011

main90564-68015iACU10200011

main90564-68016iACU10200011

main90564-68017iACU10200011

main90564-68018iACU10200011

main90564-68019iACU10200011

main90564-68020iACU10200011

main90564-68021iACU10200011

main90564-68022iACU10200011

main90564-68023iACU10200011

main90564-68024iACU10200011

main90564-79001iACU15,MCU1#,SXU1#199712

main90564-79002iACU15,MCU1#,SXU1#199712

main90564-79003iACU15,MCU1#,SXU1#199712

main90564-79004iACU15,MCU1#,SXU1#199712

main90564-79005iACU15,MCU1#,SXU1#199712

main90564-79006iACU15,MCU1#,SXU1#199712

main90564-79007iACU15,MCU1#,SXU1#199712

main90564-79008iACU15,MCU1#,SXU1#199712

main90564-79009iACU15,MCU1#,SXU1#199712

main90564-79010iACU15,MCU1#,SXU1#199712

main90564-79011iACU15,MCU1#,SXU1#199712

main90564-79012iACU15,MCU1#,SXU1#199712

main90564-79013iACU15,MCU1#,SXU1#199712

main90564-79014iACU15,MCU1#,SXU1#199712

main90564-79015iACU15,MCU1#,SXU1#199712

main90564-79016iACU15,MCU1#,SXU1#199712

main90564-79017iACU15,MCU1#,SXU1#199712

main90564-79018iACU15,MCU1#,SXU1#199712

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-50057iMCU10,SXU10199712

sub04419-33010

sub90366-50106

main90366-50075iACU10200011

main90366-62004iACU15,MCU15,SXU15199712

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-50057iACU15,MCU1#,SXU1#199712

sub04419-33010

sub90366-50106

main90366-50078iACU10200011

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-28020×2iACU10200011-200301

sub41331-28040

main41331-33010×2iMCU10,SXU10199712-200302

sub41039-45H00

main41331-33030×2iACU10200301-200302

41341FPINION, FRONT DIFFERENTIAL

main41341-14041×2iACU10200301-200302

main41341-28010×2iACU10200011-200301

sub41341-28030

main41341-48010×2iMCU10,SXU10199712-200302

sub41039-45H00

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iACU10,MCU10,SXU10199712

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-28030iACU10200011

main41342-48010iMCU10,SXU10199712

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-28010×2iACU10200011

main41351-33011×2iMCU10,SXU10199712

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-28230×2iACU10200011

main41361-28240×2iACU10200011

main41361-28250×2iACU10200011

main41361-28260×2iACU10200011

main41361-33010×2iMCU10,SXU10199712

main41362-33080×2iMCU10,SXU10199712

main41363-33010×2iMCU10,SXU10199712

4302

9010506030

main90105-06030

19 parts on this diagram · 3 diagrams in section
