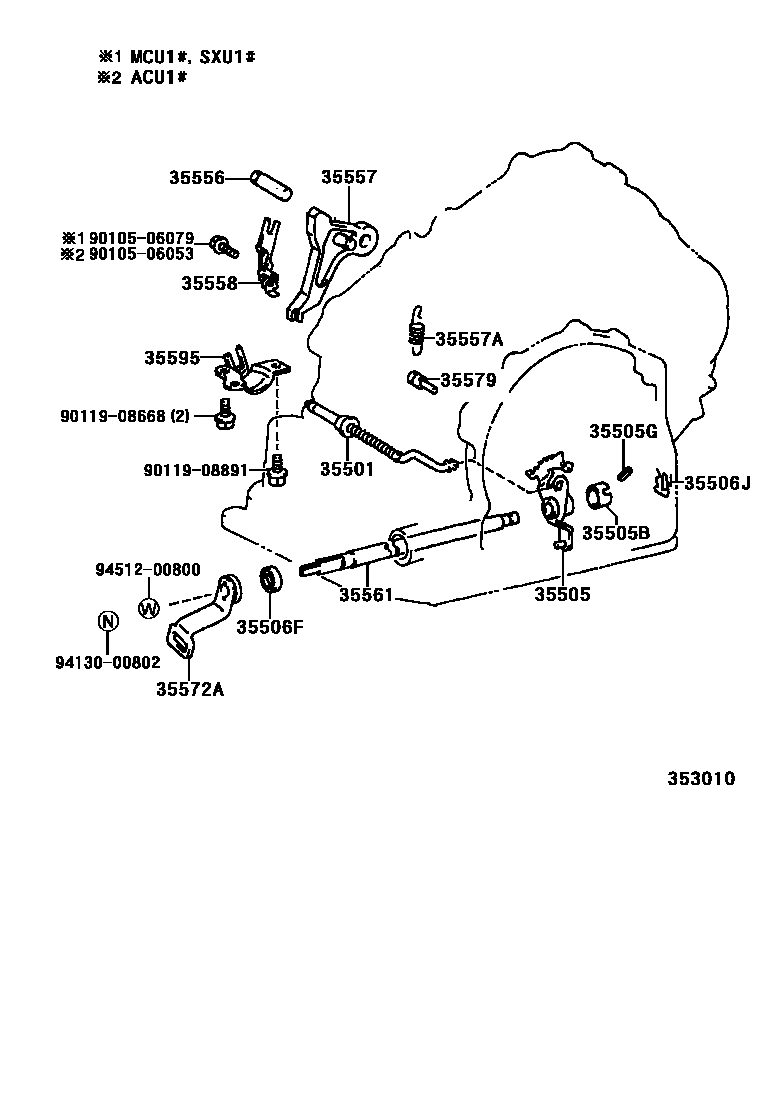

THROTTLE LINK & VALVE LEVER (ATM)

35501ROD SUB-ASSY, PARKING LOCK

main35501-21010iACU1#,MCU1#,SXU1#199712

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-21010iACU1#,MCU1#,SXU1#199712

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iACU1#,MCU1#,SXU1#199712

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iACU1#,MCU1#,SXU1#199712

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iACU1#,MCU1#,SXU1#199712

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iACU1#,MCU1#,SXU1#199712

35556SHAFT, PARKING LOCK PAWL

main35556-21010iMCU1#,SXU1#199712

main35556-28010iACU15200011

main35556-28020iACU10200011

35557PAWL, PARKING LOCK

main35557-28010iACU15200011-200206

sub35590-21010

main35557-28020iACU10200011

sub35590-32010

main35590-21010iMCU1#,SXU1#199712-200206

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90506-18077iACU1#,MCU1#,SXU1#199712

35558CLAMP, PAWL SHAFT

main35558-21010iMCU1#,SXU1#199712

main35558-28010iACU15200011

main35558-28020iACU10200011

35561SHAFT, MANUAL VALVE LEVER

main35561-21010iACU1#,MCU1#,SXU1#199712

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-28100iACU1#200011

sub35572-48010

main35572-48010iMCU1#,SXU1#199712

35579PIN, PARKING LOCK PAWL

main35594-21010iMCU1#,SXU1#199712

main35594-28010iACU1#200011

35595BRACKET, PARKING LOCK PAWL

main35595-21010iACU1#,MCU1#,SXU1#199712

9010506053

main90105-06053

9010506079

main90105-06079

9011908668

main90119-08668

9011908891

main90119-08891

9413000802

main94130-00802

9451200800

main94512-00800

20 parts on this diagram · 1 diagram in section
