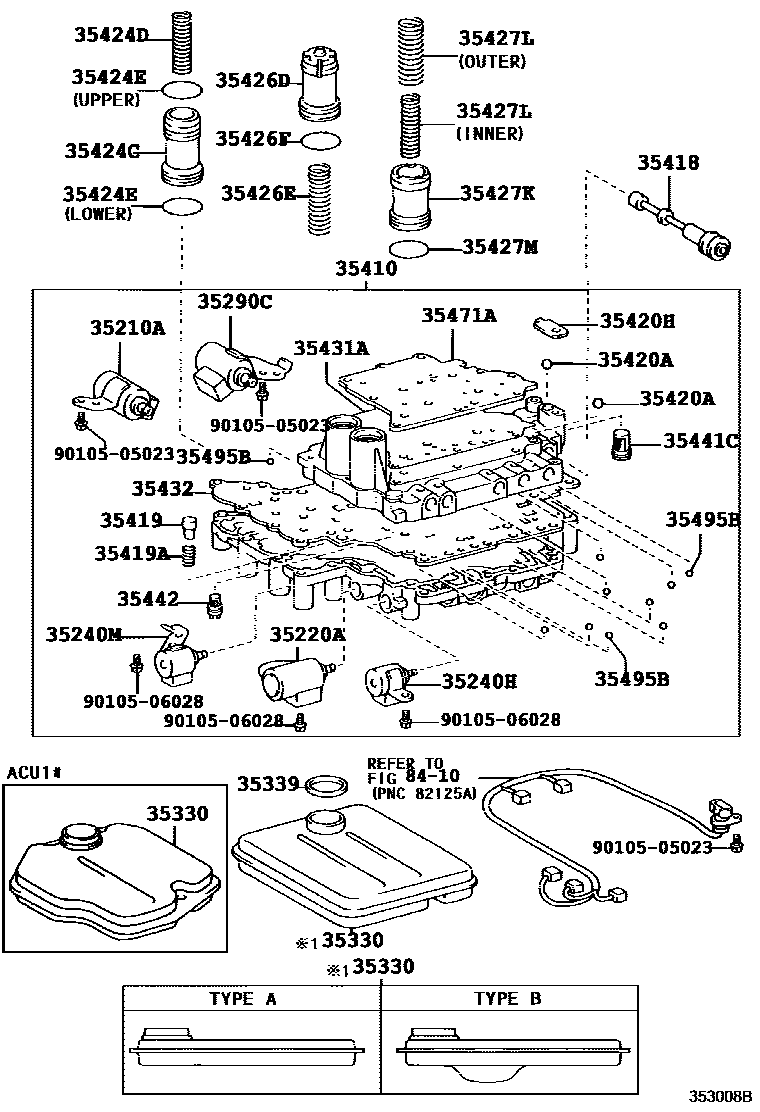

VALVE BODY & OIL STRAINER (ATM)

0001 1U140E,U140F,U241E 0002 1U140E,U140F,U241E 0003 1U140E,U140F,U241E 0004 1U140E,U140F,U241E 0005 1U140E,U140F,U241E 0006 1U140E,U140F,U241E 0007 1U140E,U140F,U241E 0008 1U140E,U140F,U241E

35210AVALVE, SOLENOID(SL1)

main35210-21010iACU1#,MCU1#,SXU1#199712

35220AVALVE, SOLENOID(SL2)

main35220-21010iACU1#,MCU1#,SXU1#199712

35240HVALVE, SOLENOID(S4)

main35230-21010iACU1#,MCU1#,SXU1#199712

35240MVALVE, SOLENOID(DSL)

main35240-21010iACU1#,MCU1#,SXU1#199712

35290CVALVE, SOLENOID(SLT)

main35290-21010iACU1#,MCU1#,SXU1#199712

35330STRAINER ASSY, VALVE BODY OIL

main35330-06010iMCU1#200011

main35330-0W010iMCU15,SXU15199810-200011

sub35330-06010

main35330-21011iMCU1#,SXU1#199712-199804

main35330-21020iMCU10,SXU1#199804-200011

sub35330-06010

main35330-28010iACU1#200011

35339GASKET, OIL STRAINER

main90301-32010iACU1#,MCU1#,SXU1#199712

35410BODY ASSY, TRANSMISSION VALVE

main35410-28420iACU1#200011

main35410-48010iMCU1#,SXU1#199712-199805

sub35410-48011

sub35418-21011

main35410-48011iMCU1#,SXU1#199805

35418VALVE, MANUAL

main35418-21010iMCU1#,SXU1#199712-199804

main35418-21011iACU1#,MCU1#,SXU1#199804

35419VALVE, CHECK, NO.1

main35419-32010iMCU1#,SXU1#199712-200011

35419ASPRING, COMPRESSION (FOR CHECK VALVE)

main90501-10214iMCU1#,SXU1#199712-200011

35420ABALL (FOR PRESSURE RELIEF)

main90360-10006iMCU1#,SXU1#199712-200011

35420HCOVER, CHECK BALL

main35493-21010iMCU1#,SXU1#199712-200011

35424CPISTON, C-1 ACCUMULATOR

main35424-21010iMCU1#,SXU1#199712

main35424-28010iACU1#200011

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-20151iMCU1#199712

main90501-22039iACU1#,SXU1#199712

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-27008iACU1#,MCU1#,SXU1#199712

main90301-30007iACU1#,MCU1#,SXU1#199712

35426DPISTON, C-3 ACCUMULATOR

main35406-21010iACU1#,MCU1#,SXU1#199712

35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

main90905-01035iACU1#,MCU1#,SXU1#199712

35426FRING, O (FOR C-3 ACCUMULATOR PISTON)

main90301-30007iACU1#,MCU1#,SXU1#199712

35427KPISTON, B-3 ACCUMULATOR

main35427-21010iMCU1#,SXU1#199712

main35427-28010iACU1#200011

35427LSPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)

main90501-22038iACU1#,SXU1#199712

main90501-22041iMCU1#199712

main90501-25053iACU1#,MCU1#,SXU1#199712

35427MRING, O (FOR B-3 ACCUMULATOR PISTON)

main90301-28008iACU1#,MCU1#,SXU1#199712

35431AGASKET, UPPER VALVE BODY COVER

main35431-21010iMCU1#,SXU1#199712-200011

35432PLATE, VALVE BODY, NO.1

main35432-48010iMCU1#,SXU1#199712-200011

35441CSTRAINER, SOLENOID OIL

main35441-21010iMCU1#,SXU1#199712-200011

35442STRAINER, THROTTLE MODULATOR OIL

main35442-21010iMCU1#,SXU1#199712-200011

sub35442-21011

35471ACOVER, UPPER VALVE BODY

main35471-21010iMCU1#,SXU1#199712-199911

sub35471-21011

main35471-21011iMCU1#,SXU1#199911-200011

35495BBALL, CHECK, NO.1

main35495-22020iMCU1#,SXU1#199712-200011

8410

9010505023

main90105-05023

9010506028

main90105-06028

31 parts on this diagram · 8 diagrams in section
