TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

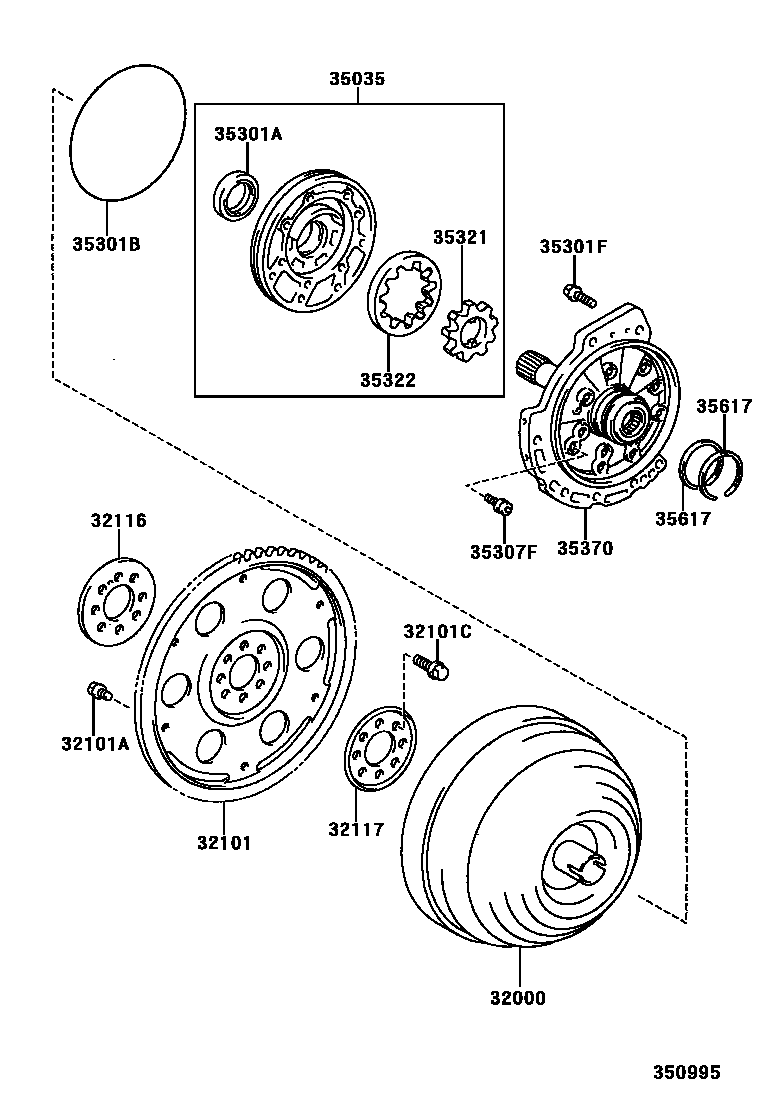

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-28150i200011
main32000-41010i199712-199907
sub32000-48011
main32000-48011i199907
main32000-48030i199712-199805
sub32000-48031
main32000-48031i199805-200001
sub32000-48032
main32000-48032i200001-200011
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-28040i200011
main32101-32051i199712-200011
main32101-33010i199712-200210
sub32101-48010
main32101-48010i200210
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-08113i199712-200011
main90109-09001i199712
main90119-08498i199712-200011
main90119-09025i199712
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10048i199712
main90105-12184i200011
sub90105-12384
main90109-10054i199712-200011
32116SPACER, DRIVE PLATE, FRONT
main32116-20050i200011
main32116-32011i199712-200011
main32116-32020i199712
32117SPACER, DRIVE PLATE, REAR
main32117-20060i200011
main32117-32010i199712-200011
main32117-32020i199712
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
main35035-21010i199712-200008
sub35035-21H00
main35035-21020i200008
sub35035-28010
main35035-28010i200011
sub35035-12070
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38020i199712-199810
main90311-38064i199810-200206
main90311-38083i200111-200206
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99099i199712
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08050i199712
35307FBOLT (FOR STATOR SHAFT)
main90148-60027i199712
35321GEAR, FRONT OIL PUMP DRIVE
main35321-21010i199712-200008
sub35035-21H00
main35321-21020i199712-200008
sub35035-21H00
main35321-21030i199712-200008
sub35035-21H00
main35321-21040i199712-200008
sub35035-21H00
main35321-21050i199712-200008
sub35035-21H00
main35321-21060i200008
sub35321-28060
main35321-21070i200008
sub35321-28070
main35321-21080i200008
sub35321-28080
main35321-21090i200008
sub35321-28090
main35321-21100i200008
sub35321-28100
main35321-28060i200011
main35321-28070i200011
main35321-28080i200011
main35321-28090i200011
main35321-28100i200011
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-21010i199712-200008
sub35035-21H00
main35322-21020i199712-200008
sub35035-21H00
main35322-21030i199712-200008
sub35035-21H00
main35322-21040i199712-200008
sub35035-21H00
main35322-21050i199712-200008
sub35035-21H00
main35322-21060i200008
sub35322-28060
main35322-21070i200008
sub35322-28070
main35322-21080i200008
sub35322-28080
main35322-21090i200008
sub35322-28090
main35322-21100i200008
sub35322-28100
main35322-28060i200011
main35322-28070i200011
main35322-28080i200011
main35322-28090i200011
main35322-28100i200011
35370SHAFT ASSY, STATOR
main35370-21010i199712-200008
sub35035-21H00
main35370-21020i200011
sub35370-28010
main35370-21030i200008-200011
main35370-28010i200011
sub35370-12110
35617RING, CLUTCH DRUM OIL SEAL
main35613-21010i199712

15 parts on this diagram · 2 diagrams in section
