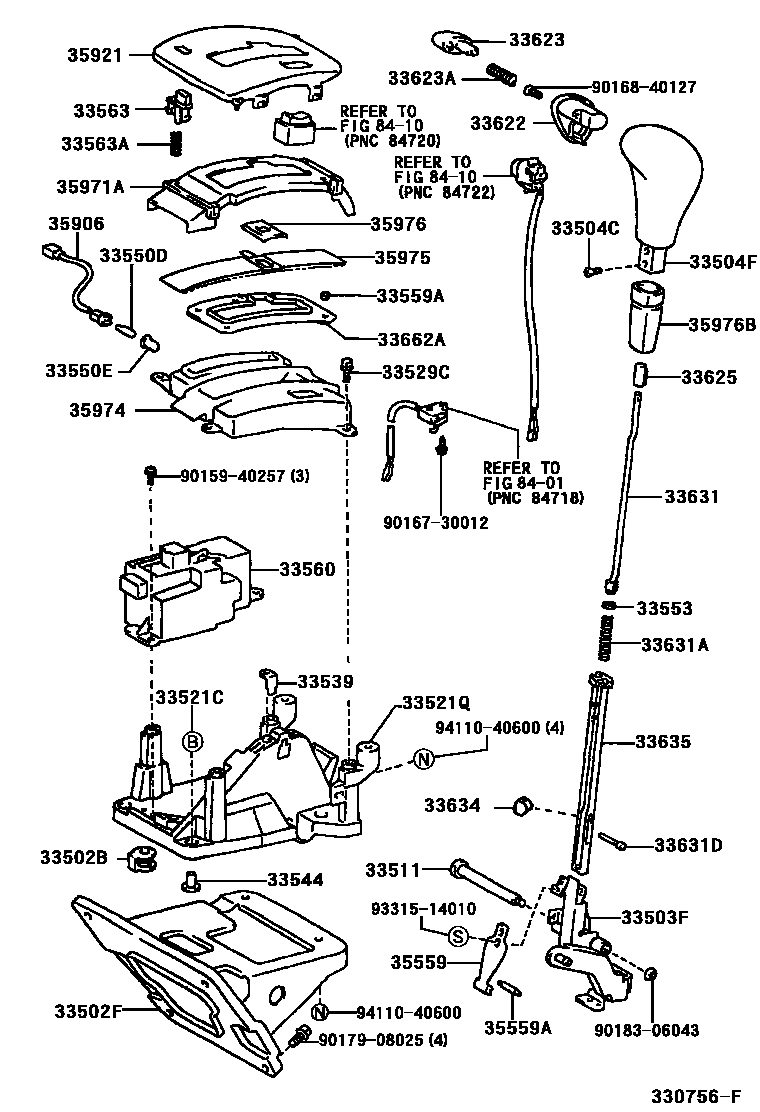

SHIFT LEVER & RETAINER
33502BGROMMET (FOR SHIFT LEVER PLATE)
33502FHOUSING SUB-ASSY, SHIFT LEVER (FOR FLOOR SHIFT)
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33521CBOLT (FOR SHIFT LEVER HOUSING)
33521QHOUSING, SHIFT LEVER (FOR FLOOR SHIFT)
33529CBOLT, SHIFT LEVER
33539CUSHION, SHIFT LEVER ANTI-RATTLE
33544INSERT, SHIFT LEVER, NO.1
33550DBULB, POSITION INDICATOR LAMP
33550ECAP, POSITION INDICATOR LAMP
sub35956-75010
33553SEAT, SHIFT LEVER SPRING
33559ANUT, SHIFT LEVER, NO.1
33560UNIT ASSY, SHIFT LOCK CONTROL
33563BUTTON, SHIFT LOCK RELEASE
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33622COVER, SHIFT LEVER KNOB, NO.1
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
33623BUTTON, SHIFT LEVER KNOB
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625SLEEVE, SHIFT LEVER KNOB
33631ROD, DETENT
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631DPIN, GROOVED (FOR DETENT ROD)
33634PROTECTOR, WIRE
33635GUIDE, WIRE (FOR SHIFT LEVER)
33662ACUSHION, SHIFT LEVER GUIDE
35559SPRING, MANUAL DETENT
35559APIN (FOR MANUAL DETENT SPRING)
35906WIRE SUB-ASSY, INDICATOR LAMP
35921PLATE, CONTROL POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)
8401
8410
9015940257
main90159-40257
9016730012
main90167-30012
9016840127
main90168-40127
9017908025
main90179-08025
9018306043
main90183-06043
9331514010
main93315-14010
9411040600
main94110-40600
46 parts on this diagram · 4 diagrams in section
