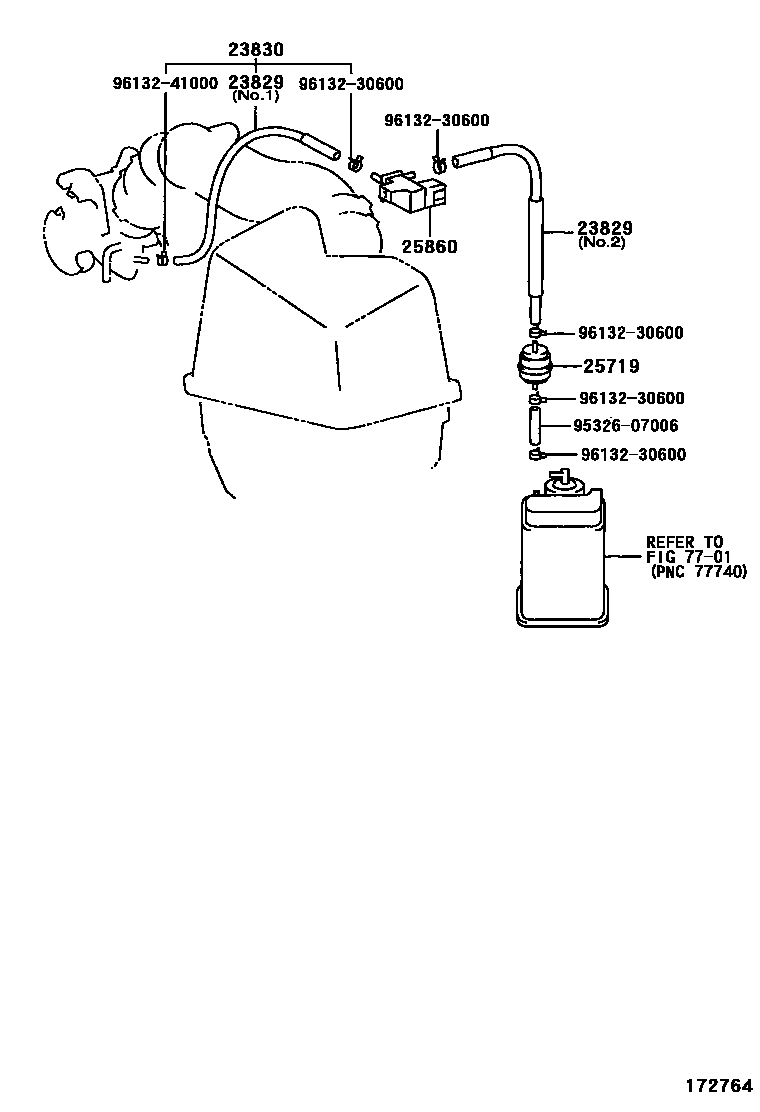

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

23829HOSE, FUEL VAPOR FEED, NO.3

main23829-20040i1MZFE..MCU1#199712-200011

main23829-20050i1MZFE..MCU1#200011

main23829-28070i2AZFE..ACU1#200011

main95326-07022i2AZFE..ACU1#200011

23830HOSE ASSY, FUEL VAPOR FEED, NO.2

main23830-28040i2AZFE..ACU1#200011

sub96132-41000

25719TANK, VACUUM SURGE

main25719-20020i1MZFE..MCU1#199712

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-28010i2AZFE..ACU1#200011

main25860-62010×2i1MZFE..MCU1#199712

7701

9532607006

main95326-07006

9613230600

main96132-30600

9613241000

main96132-41000

8 parts on this diagram · 6 diagrams in section
