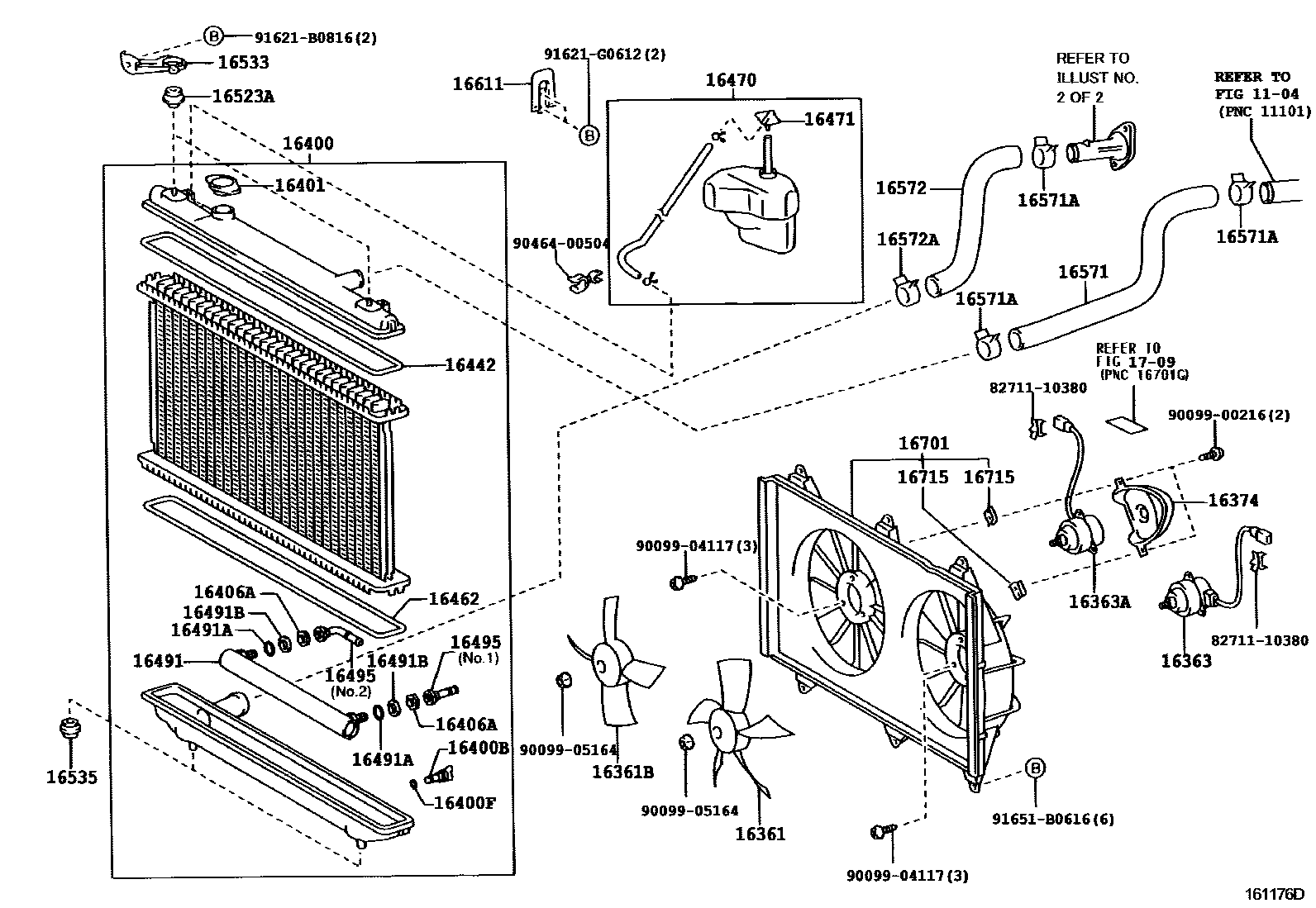

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1104CYLINDER HEAD

→ Go to FIG 11-04

16361FAN

main16361-20060i1MZFE..MCU1#199712-200011

main16361-20140i1MZFE..MCU1#200011

main16361-74140i2AZFE..ACU1#199712

16361BFAN, NO.2

main16361-20050i1MZFE..MCU1#199712

main88453-33010i5SFE..SXU1#199712

16363MOTOR, COOLING FAN

main16363-20010i1MZFE..MCU1#199712-200011

main16363-20200i1MZFE..MCU1#200011

main16363-74280i5SFE..SXU1#199712-199801

main16363-74320i5SFE..SXU1#199801-199912

16363AMOTOR, COOLING FAN, NO.2

main16363-20020i1MZFE..MCU1#199712-200011

main16363-20190i1MZFE..MCU1#200011

main16363-74290i5SFE..SXU1#199712-199801

main16363-74330i5SFE..SXU1#199801-199912

16374INSULATOR, COOLING FAN MOTOR

main16366-28130i2AZFE..ACU1#200011

16400RADIATOR ASSY

main16400-20120i1MZFE..MCU1#199712-200011

main16400-20180i1MZFE..MCU1#200011

main16400-28220i2AZFE..ACU1#200011

main16400-7A550i5SFE..SXU1#199712

16400BPLUG, RADIATOR DRAIN COCK

main23322-54010i5SFE..SXU1#199712

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2AZFE..ACU1#199902

main96711-19007i5SFE..SXU1#199712-199902

16401CAP SUB-ASSY, RADIATOR

main16401-62100i1MZFE..MCU1#200011

main16401-72090i1MZFE..MCU1#199712-200011

16406ASUPPORT(FOR OIL COOLER)

main16406-62060i1MZFE..MCU1#199712

16442RING, O(FOR RADIATOR UPPER TANK)

main16442-46090i1MZFE..MCU1#199712-200011

main16442-7A310i5SFE..SXU1#199712

16462RING, O(FOR RADIATOR LOWER TANK)

main16442-46090i1MZFE..MCU1#199712

16470TANK ASSY, RADIATOR RESERVE

main16470-20060i1MZFE..MCU1#200011

main16470-74340i5SFE..SXU1#199712-200011

16471CAP SUB-ASSY, RESERVE TANK

main16405-20040i1MZFE..MCU1#200011

main16405-74320i1MZFE..MCU1#199712-200011

16491COOLER, OIL(FOR ATM)

main16491-54790i1MZFE..MCU1#199712

16491ARING, O(FOR ATM OIL COOLER)

main16492-50020i5SFE..SXU1#199712

16491BWASHER, PLATE(FOR ATM OIL COOLER)

main16493-62060i1MZFE..MCU1#199712

16495NUT, FLARE(FOR ATM OIL COOLER)

main16495-50020i5SFE..SXU1#199712

main16495-7A550i2AZFE..ACU1#199712

16523ACUSHION, RADIATOR SUPPORT

main16523-74010i2AZFE..ACU1#199712

16533SUPPORT, RADIATOR, UPPER

main16533-74310i1MZFE..MCU1#199712

16535SUPPORT, RADIATOR, LOWER

main16535-20010i1MZFE..MCU1#199712

main16535-74210i5SFE..SXU1#199712

16571HOSE, RADIATOR, INLET

main16571-20030i1MZFE..MCU1#199712

main16571-28100i2AZFE..ACU1#200011

main16571-74450i5SFE..SXU1#199712

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-35001i1MZFE..MCU1#200206

main90467-34004i5SFE..SXU1#199712

main90467-37005i2AZFE..ACU1#200204-200206

main90467-37006i1MZFE..MCU1#199712-200204

16572HOSE, RADIATOR, OUTLET

main16572-20030i1MZFE..MCU1#199712-200011

main16572-20060i1MZFE..MCU1#200011

main16572-28060i2AZFE..ACU1#200011

main16572-74320i5SFE..SXU1#199712

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-35001i1MZFE..MCU1#200206

main90467-34004i5SFE..SXU1#199712

main90467-37005i1MZFE..MCU1#200204-200206

main90467-37006i1MZFE..MCU1#199712-200204

16611BRACKET, RADIATOR RESERVE TANK

main16611-74170i5SFE..SXU1#199712

16701SHROUD SUB-ASSY, FAN

main16711-20070i1MZFE..MCU1#199712-200011

main16711-20130i1MZFE..MCU1#200011

main16711-28190i5SFE..SXU1#200009-200011

main16711-74690i5SFE..SXU1#199712-200009

16715BRACKET, FAN SHROUD

main88688-18030i5SFE..SXU1#199712

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10380

9009900216

main90099-00216

9009904117

main90099-04117

9009905164

main90099-05164

9046400504

main90464-00504

91621B0816

main91621-B0816

91621G0612

main91621-G0612

91651B0616

main91651-B0616

38 parts on this diagram · 8 diagrams in section
