CRANKSHAFT & PISTON

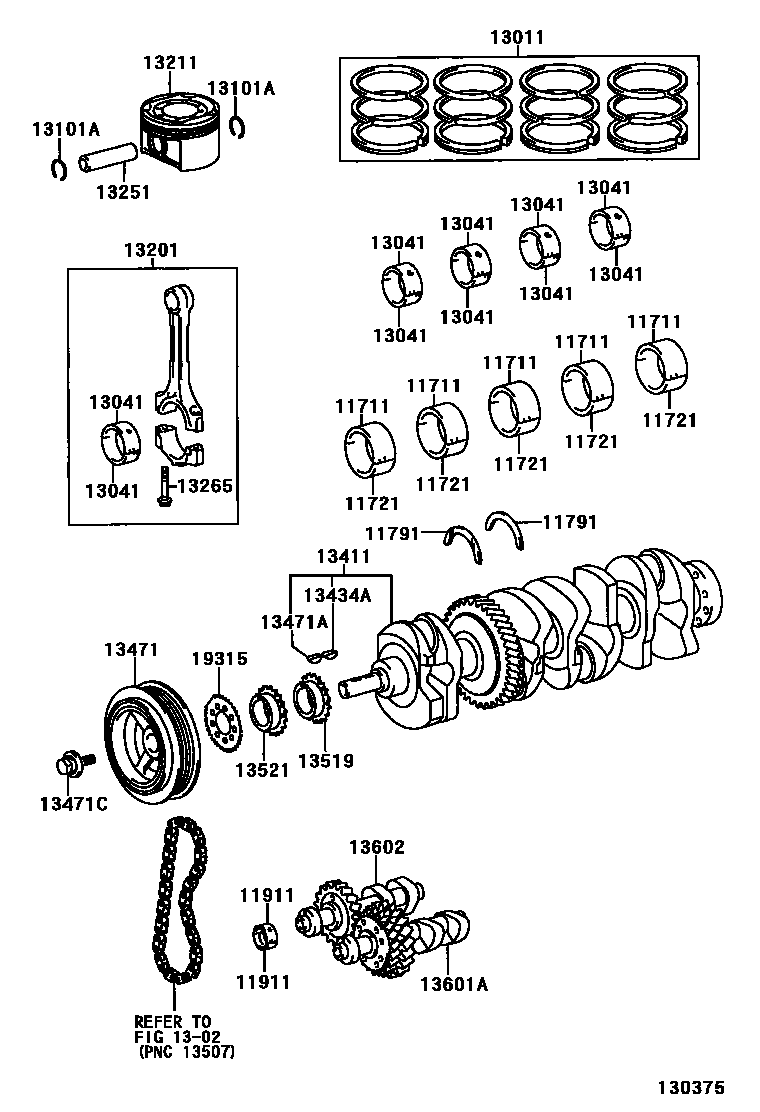

Parts diagram
11711BEARING, CRANKSHAFT
main11071-20010-01×2i199712-199809
main11071-20010-02×2i199712-199809
main11071-20010-03×2i199712-199809
main11071-20010-04×2i199712-199809
main11071-20010-05×2i199712-199809
main11071-20020-01×2i199809-200010
sub11071-20021
main11071-20020-02×2i200010
sub11071-20021
main11071-20020-03×2i199809-200010
sub11071-20021
main11071-20020-04×2i199809-200010
sub11071-20021
main11071-20020-05×2i200010
sub11071-20021
main11071-20020-06×2i200010
sub11071-20021
main11071-20020-07×2i200010
sub11071-20021
main11071-63020-01i199712
sub11071-63021
main11071-63020-02i199712
sub11071-63021
main11071-63020-03i199712
sub11071-63021
main11071-63020-04i199712
sub11071-63021
main11071-63020-05i199712
sub11071-63021
main11701-20010-03×2i199712-199809
main11701-20010-04×2i199712-199809
main11701-20010-05×2i199712-199809
main11701-20010-06×2i199712-199809
main11701-20010-07×2i199712-199809
main11701-20020-01×2i200010
sub11701-20030
main11701-20020-02×2i200010
sub11701-20030
main11701-20020-03×2i199809-200010
sub11701-20030
main11701-20020-04×2i199809-200010
sub11701-20030
main11701-20020-05×2i199809-200010
sub11701-20030
main11701-20020-06×2i200010
sub11701-20030
main11701-20020-07×2i199809-200010
sub11701-20030
main11701-63021-01×4i199712
sub11701-63022
main11701-63021-02×4i199712
sub11701-63022
main11701-63021-03×4i199712
sub11701-63022
main11701-63021-04×4i199712
sub11701-63022
main11701-63021-05×4i199712
sub11701-63022
main11711-28010-01×5i200011
MARK 1
sub11711-28020
main11711-28010-02×5i200011
MARK 2
sub11711-28020
main11711-28010-03×5i200011
MARK 3
sub11711-28020
main11711-28010-04×5i200011
MARK 4
sub11711-28020
11721BEARING, CRANKSHAFT, NO.2
main11721-28010-01×5i200011
MARK 1
sub11721-28020
main11721-28010-02×5i200011
MARK 2
sub11721-28020
main11721-28010-03×5i200011
MARK 3
sub11721-28020
main11721-28010-04×5i200011
MARK 4
sub11721-28020
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-28020×2i200011
11911BEARING, BALANCESHAFT, NO.1
main11911-28010-01×8i200011
MARK 1
sub11911-28011
main11911-28010-02×8i200011
MARK 2
sub11911-28011
main11911-28010-03×8i200011
MARK 3
sub11911-28011
13011RING SET, PISTON
main13011-20012i199808-199902
main13011-20021i199712-199808
main13011-20022i199902-200207
main13011-20023i200207
main13011-28100i200011-200107
main13011-28101i200107-200208
main13011-28102i200208
main13011-74370i199712
main13013-74370i199712
1302
13041BEARING, CONNECTING ROD
main13041-20010-01×6i199712
MARK 1
sub13041-20011
main13041-20010-02×6i199712
MARK 2
sub13041-20011
main13041-20010-03×6i199712
MARK 3
sub13041-20011
main13041-20010-04×6i199712
MARK 4
sub13041-20011
main13041-74040-01i199712
MARK 1
sub13041-74041
main13041-74040-02i199712
MARK 2
sub13041-74041
main13041-74040-03i199712
MARK 3
sub13041-74041
main13281-28010-01×8i200011
MARK 1
sub13281-28011
main13281-28010-02×8i200011
MARK 2
sub13281-28011
main13281-28010-03×8i200011
MARK 3
sub13281-28011
13101PISTON SUB-ASSY, W/PIN
main13101-20030×3i199712-200107
main13101-20040×3i200107
sub13101-20041
main13101-74201-01×4i199712
main13101-74201-02×4i199712
main13101-74201-03×4i199712
main13103-74201×4i199712
main13301-20020×3i199712-200107
main13301-20030×3i200107
sub13301-20031
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025×12i200003
main90521-25004×12i199712-200003
13201ROD SUB-ASSY, CONNECTING
main13201-29015×6i199712-200302
sub13201-29155
main13201-29125-A0×4i200011
MARK A
sub13201-29685
main13201-29125-B0×4i200011
MARK B
sub13201-29685
main13201-29125-C0×4i200011
MARK C
sub13201-29685
main13201-79215×4i199712
13211PISTON
main13211-28030-A0×4i200011-200107
main13211-28030-B0×4i200011-200107
main13211-28030-C0×4i200011-200107
main13211-28031-A0×4i200107
main13211-28031-B0×4i200107
main13211-28031-C0×4i200107
13251PIN, PISTON
main13251-28010-A0×4i200011
MARK A
sub13251-28020
main13251-28010-B0×4i200011
MARK B
sub13251-28020
main13251-28010-C0×4i200011
MARK C
sub13251-28020
13265BOLT, CONNECTING ROD
main13265-28010×8i200011
sub13265-28020
main13265-50020×12i199712-200206
main13265-62030×8i199712
sub13265-74030
13411CRANKSHAFT
main13401-20030i199712
main13401-28010i200112
main13401-28900i200011-200112
main13401-74011i199712
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
main95161-30416i200011
13471PULLEY, CRANKSHAFT
main13408-0A010i199712
main13408-20010i199712
main13408-74041i199712
sub13408-74031
main13470-28020i200011
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main90280-05005i199712
main95161-30416i200011
main95161-30516×2i199712
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-14015i199712
main90119-14106i200011
main90119-16004i199712
13519GEAR, OIL PUMP DRIVE
main13519-28010i200011
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-28010i200011
sub13521-28030
13601ABALANCESHAFT SUB-ASSY, NO.1
main13601-28010i200011
sub13601-28011
13602BALANCESHAFT SUB-ASSY, NO.2
main13602-28010i200011
sub13602-28011
19315PLATE, CRANK ANGLE SENSOR, NO.1
main19315-28010i200011
