HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

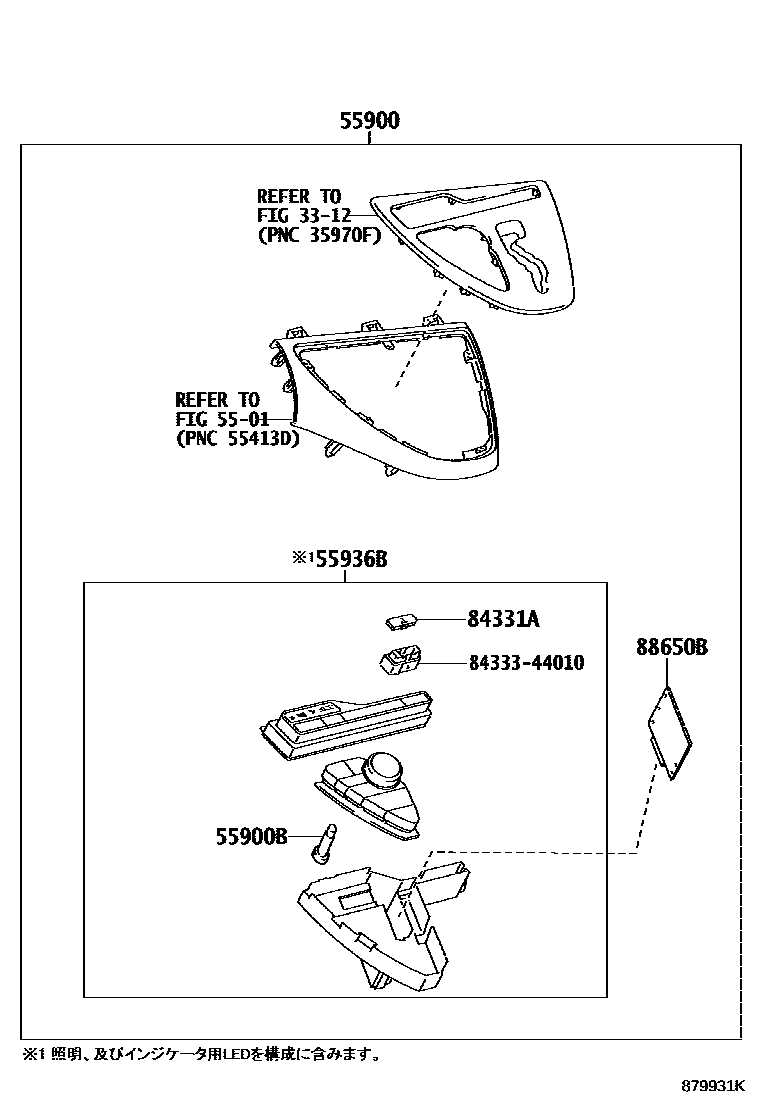

Parts diagram
3312
5501
55900CONTROL ASSY, AIR CONDITIONER
main55900-44830-E0i200705-200909
GREGE,TRIM4#
sub35970-44090
sub55413-44200
sub90167-30010
main55900-44840-B0i200705-200909
MD.GRAY,TRIM1#
sub35970-44110
sub55413-44200
sub90167-30010
main55900-44700-E0supersedes 55900-44691-E0i200409-200610
main55900-44701-E0supersedes 55900-44692-E0i200611-200705
sub35970-44040
sub55413-44200
sub90167-30010
main55900-44730-E0supersedes 55900-44671-E0i200409-200509
main55900-44731-E0supersedes 55900-44671-E0i200510-200610
main55900-44732-E0supersedes 55900-44672-E0i200611-200705
sub35970-44020
sub55413-44200
sub90167-30010
main55900-44740-E0supersedes 55900-44691-E0i200409-200509
main55900-44741-E0supersedes 55900-44691-E0i200510-200610
main55900-44742-E0supersedes 55900-44692-E0i200611-200705
sub35970-44040
sub55413-44200
sub90167-30010
main55900-44750-E0supersedes 55900-44691-E0i200409-200610
main55900-44751-E0supersedes 55900-44692-E0i200611-200705
sub35970-44040
sub55413-44200
sub90167-30010
main55900-44760-B0supersedes 55900-44711-B0i200409-200509
main55900-44761-B0supersedes 55900-44711-B0i200510-200610
main55900-44762-B0supersedes 55900-44712-B0i200611-200705
sub35970-44050
sub55413-44200
sub90167-30010
main55900-44770-B0supersedes 55900-44650-B0i200512-200610
main55900-44770-E0i200512-200610
main55900-44771-B0supersedes 55900-44651-B0i200611-200705
sub35970-44060
sub55413-44200
sub90167-30010
main55900-44771-E0i200611-200705
sub35970-44060
sub55413-44200
sub90167-30010
main55900-44780-B0supersedes 55900-44711-B0i200512-200610
main55900-44780-E0i200512-200610
main55900-44781-B0supersedes 55900-44712-B0i200611-200705
sub35970-44070
sub55413-44200
sub90167-30010
main55900-44781-E0i200611-200705
sub35970-44070
sub55413-44200
sub90167-30010
main55900-44790-B0supersedes 55900-44711-B0i200512-200610
main55900-44790-E0i200512-200610
main55900-44791-B0supersedes 55900-44712-B0i200611-200705
sub35970-44070
sub55413-44200
sub90167-30010
main55900-44791-E0i200611-200705
sub35970-44070
sub55413-44200
sub90167-30010
main55900-44800-E0supersedes 55900-44630-E0i200608-200610
main55900-44801-E0supersedes 55900-44631-E0i200611-200705
sub35970-44080
sub55413-44200
sub90167-30010
main55900-44810-E0supersedes 55900-44671-E0i200608-200610
main55900-44811-E0supersedes 55900-44672-E0i200611-200705
sub35970-44040
sub55413-44200
sub90167-30010
main55900-44820-E0supersedes 55900-44671-E0i200608-200610
main55900-44821-E0supersedes 55900-44672-E0i200611-200705
sub35970-44040
sub55413-44200
sub90167-30010
main55900-44860-E0supersedes 55900-44850-E0i200705-200909
sub35970-44100
sub55413-44200
sub90167-30010
main55900-44880-E0supersedes 55900-44870-E0i200705-200909
sub35970-44120
sub55413-44200
sub90167-30010
main55900-44890-E0supersedes 55900-44671-E0i200903-200909
sub35970-44120
sub55413-44200
sub90167-30010
main55900-44A00-E0supersedes 55900-44870-E0i200705-200909
sub35970-44120
sub55413-44200
sub90167-30010
main55900-44A20-B0supersedes 55900-44A10-B0i200705-200909
sub35970-44130
sub55413-44200
sub90167-30010
main55900-44A30-E0i200804-200909
sub35970-44140
sub55413-44200
sub90167-30010
main55900-44A40-E0i200804-200909
sub35970-44150
sub55413-44200
sub90167-30010
main55900-44A50-E0i200804-200909
sub35970-44150
sub55413-44200
sub90167-30010
main55900-44B00-E0i200909-201106
sub35970-44120
sub55413-44200
sub90167-30010
main55900-44B10-E0i200909-201106
sub35970-44120
sub55413-44200
sub90167-30010
main55900-44B50-B0supersedes 55900-44B40-B0i200909-201106
sub35970-44180
sub55413-44200
sub90167-30010
main55900-44B51-B1supersedes 55900-44B41-B1i201106-201206
sub35970-44270
sub55413-44200
sub90167-30010
main55900-44B52-B1supersedes 55900-44B42-B1i201206-201310
sub35970-44270
sub55413-44200
sub90167-30010
main55900-44B60-E0supersedes 55900-44630-E0i200903-200909
sub35970-44170
sub55413-44200
sub90167-30010
main55900-44B80-E0supersedes 55900-44B70-E0i200909-201106
sub35970-44100
sub55413-44200
sub90167-30010
main55900-44B81-E0supersedes 55900-44B71-E0i201106-201206
sub35970-44250
sub55413-44200
sub90167-30010
main55900-44B82-E0supersedes 55900-44B72-E0i201206-201310
sub35970-44250
sub55413-44200
sub90167-30010
main55900-44C00-B0supersedes 55900-44B90-B0i200909-201106
sub35970-44160
sub55413-44200
sub90167-30010
main55900-44C01-B1supersedes 55900-44B91-B1i201106-201206
sub35970-44260
sub55413-44200
sub90167-30010
main55900-44C02-B1supersedes 55900-44B92-B1i201206-201310
sub35970-44260
sub55413-44200
sub90167-30010
main55900-44C20supersedes 55900-44C10i201104-201106
sub35970-44120
sub55413-44200
sub90167-30010
main55900-44C20-E0supersedes 55900-44C10-E0i200909-201104
sub35970-44120
sub55413-44200
sub90167-30010
main55900-44C30-B0supersedes 55900-44B90-B0i200909-201106
sub35970-44190
sub55413-44200
sub88650-44510
sub90167-30010
main55900-44C30-E0i200909-201106
sub35970-44190
sub55413-44200
sub88650-44510
sub90167-30010
main55900-44C40-B0supersedes 55900-44B90-B0i200909-201106
sub35970-44190
sub55413-44200
sub90167-30010
main55900-44C40-E0i200909-201106
sub35970-44190
sub55413-44200
sub90167-30010
main55900-44C50-B0supersedes 55900-44B40-B0i200909-201106
sub35970-44150
sub55413-44200
sub88650-44470
sub90167-30010
main55900-44C50-E0i200909-201106
sub35970-44150
sub55413-44200
sub88650-44470
sub90167-30010
main55900-44C60-B0supersedes 55900-44B40-B0i200909-201106
sub35970-44150
sub55413-44200
sub90167-30010
main55900-44C60-E0i200909-201106
sub35970-44150
sub55413-44200
sub90167-30010
main55900-44C70-B0supersedes 55900-44B90-B0i201010-201106
sub35970-44210
sub55413-44200
sub88650-44510
sub90167-30010
main55900-44C80-B0supersedes 55900-44B90-B0i201010-201106
sub35970-44210
sub55413-44200
sub90167-30010
main55900-44C90-B0supersedes 55900-44B40-B0i201010-201106
sub35970-44200
sub55413-44200
sub88650-44470
sub90167-30010
main55900-44D00-B0supersedes 55900-44B40-B0i201010-201106
sub35970-44200
sub55413-44200
sub90167-30010
main55900-44D20-E0supersedes 55900-44D10-E0i201106-201206
sub35970-44220
sub55413-44200
sub90167-30010
main55900-44D21-E0supersedes 55900-44D11-E0i201211-201310
sub35970-44220
sub55413-44200
sub90167-30010
main55900-44D30-B0supersedes 55900-44B91-B1i201106-201206
sub35970-44230
sub55413-44200
sub88650-44510
sub90167-30010
main55900-44D31-B0supersedes 55900-44B92-B1i201206-201310
sub35970-44230
sub55413-44200
sub90167-30010
main55900-44D40-B0supersedes 55900-44B91-B1i201106-201206
sub35970-44230
sub55413-44200
sub90167-30010
main55900-44D41-B0supersedes 55900-44B92-B1i201206-201310
sub35970-44230
sub55413-44200
sub90167-30010
main55900-44D50-B0supersedes 55900-44B41-B1i201106-201206
sub35970-44240
sub55413-44200
sub88650-44470
sub90167-30010
main55900-44D51-B0supersedes 55900-44B42-B1i201206-201310
sub35970-44240
sub55413-44200
sub90167-30010
main55900-44D60-B0supersedes 55900-44B41-B1i201106-201206
sub35970-44240
sub55413-44200
sub90167-30010
main55900-44D61-B0supersedes 55900-44B42-B1i201206-201310
sub35970-44240
sub55413-44200
sub90167-30010
main55900-44E10-B0i201112-201206
sub35970-44280
sub55413-44200
sub88650-44510
sub90167-30010
main55900-44E11-B0supersedes 55900-44B92-B1i201206-201310
sub35970-44280
sub55413-44200
sub90167-30010
main55900-44E20-B0i201112-201206
sub35970-44280
sub55413-44200
sub90167-30010
main55900-44E21-B0supersedes 55900-44B92-B1i201206-201310
sub35970-44280
sub55413-44200
sub90167-30010
main55900-44E30-B0i201112-201206
sub35970-44290
sub55413-44200
sub88650-44470
sub90167-30010
main55900-44E31-B0supersedes 55900-44B42-B1i201206-201310
sub35970-44290
sub55413-44200
sub90167-30010
main55900-44E40-B0i201112-201206
sub35970-44290
sub55413-44200
sub90167-30010
main55900-44E41-B0supersedes 55900-44B42-B1i201206-201310
sub35970-44290
sub55413-44200
sub90167-30010
main55900-44E60-E0supersedes 55900-44E50-E0i201206-201310
sub35970-44300
sub55413-44200
sub90167-30010
55900BBULB, AIR CONDITIONER CONTROL
main90010-05106i200409-200909
55936BSWITCH, CENTER CLUSTER MODULE
main55936-44030i200409-200705
main55936-44031i200705-200909
main55936-44032i201310
main55936-44040i200409-200705
main55936-44041i200909-201310
84331AKNOB, HAZARD WARNING SIGNAL SWITCH
main84331-44060i200409-200909
88650BAMPLIFIER ASSY, AIRCONDITIONER
main88650-44370i200409-200507
main88650-44410i200508-200610
main88650-44430i200611-200909
main88650-44530i201206-201801
main88650-44380i200409-200610
main88650-44390supersedes 88650-44410i200409-200509
main88650-44400i200409-200610
main88650-44420i200608-200610
main88650-44440i200611-200909
main88650-44450supersedes 88650-44410i200611-200705
main88650-44460i200611-200909
main88650-44480supersedes 88650-44470i200909-201106
main88650-44490i200909-201106
main88650-44500i200909-201106
main88650-44520supersedes 88650-44510i201112-201206
main88650-44540i201206-201310
main88650-44550i201604-201801
8433344010COVER, HAZARD WARNING SIGNAL SWITCH
main84333-44010

8 parts on this diagram · 5 diagrams in section
