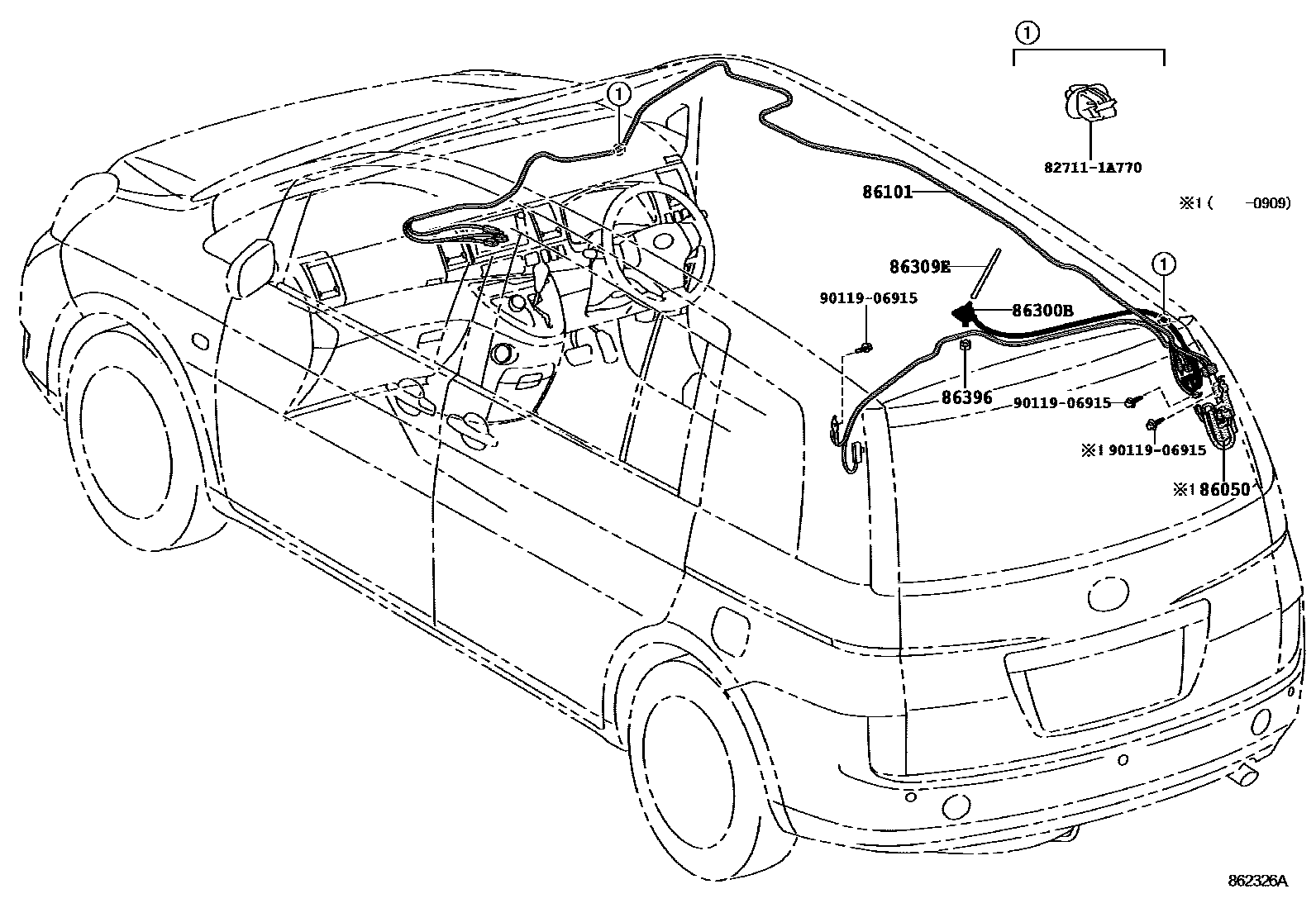

ANTENNA

86050ANTENNA ASSY, TELEVISION

main86050-44100

86101CORD SUB-ASSY, ANTENNA

main86101-44360iANM1#,ZNM10200409-200909

main86101-44430iZGM1#200909

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-44220iANM1#,ZNM10200409-201104

main86300-44221iZGM1#201104

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-20310iANM1#,ZNM10200409-201104

main86309-42070iZGM1#201104

86396NUT, ANTENNA

main86396-20040iANM1#,ZNM10200409-201304

main86396-47010iZGM1#201305

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9011906915

main90119-06915

7 parts on this diagram · 1 diagram in section
