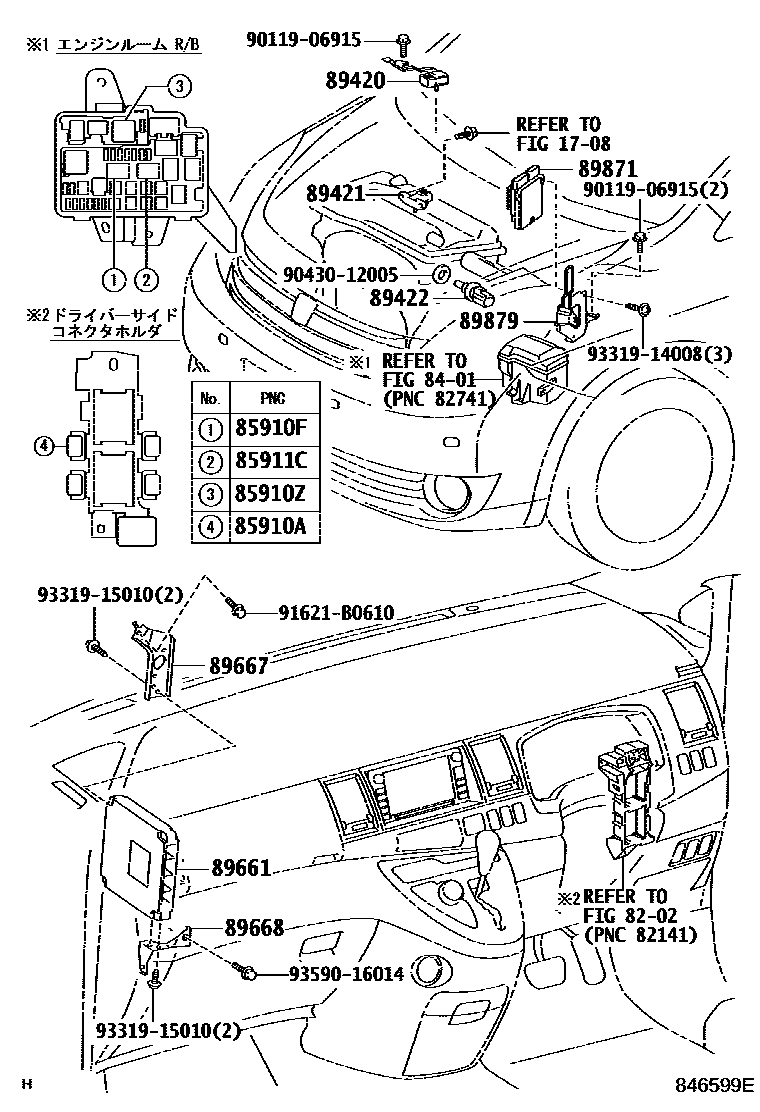

ELECTRONIC FUEL INJECTION SYSTEM
1708
8202
8401
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
85910ZRELAY, INJECTION (FOR EFI)
85911CRELAY, EFI 2
89420SENSOR ASSY, VACUUM
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
sub89661-44611
sub89661-44612
sub89661-44631
sub89661-44632
sub89661-44681
sub89661-44682
sub89661-44691
sub89661-44692
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89871DRIVER, INJECTOR
89879BRACKET, INJECTOR DRIVER
9011906915
main90119-06915
9043012005
main90430-12005
91621B0610
main91621-B0610
9331914008
main93319-14008
9331915010
main93319-15010
9359016014
main93590-16014
21 parts on this diagram · 4 diagrams in section
