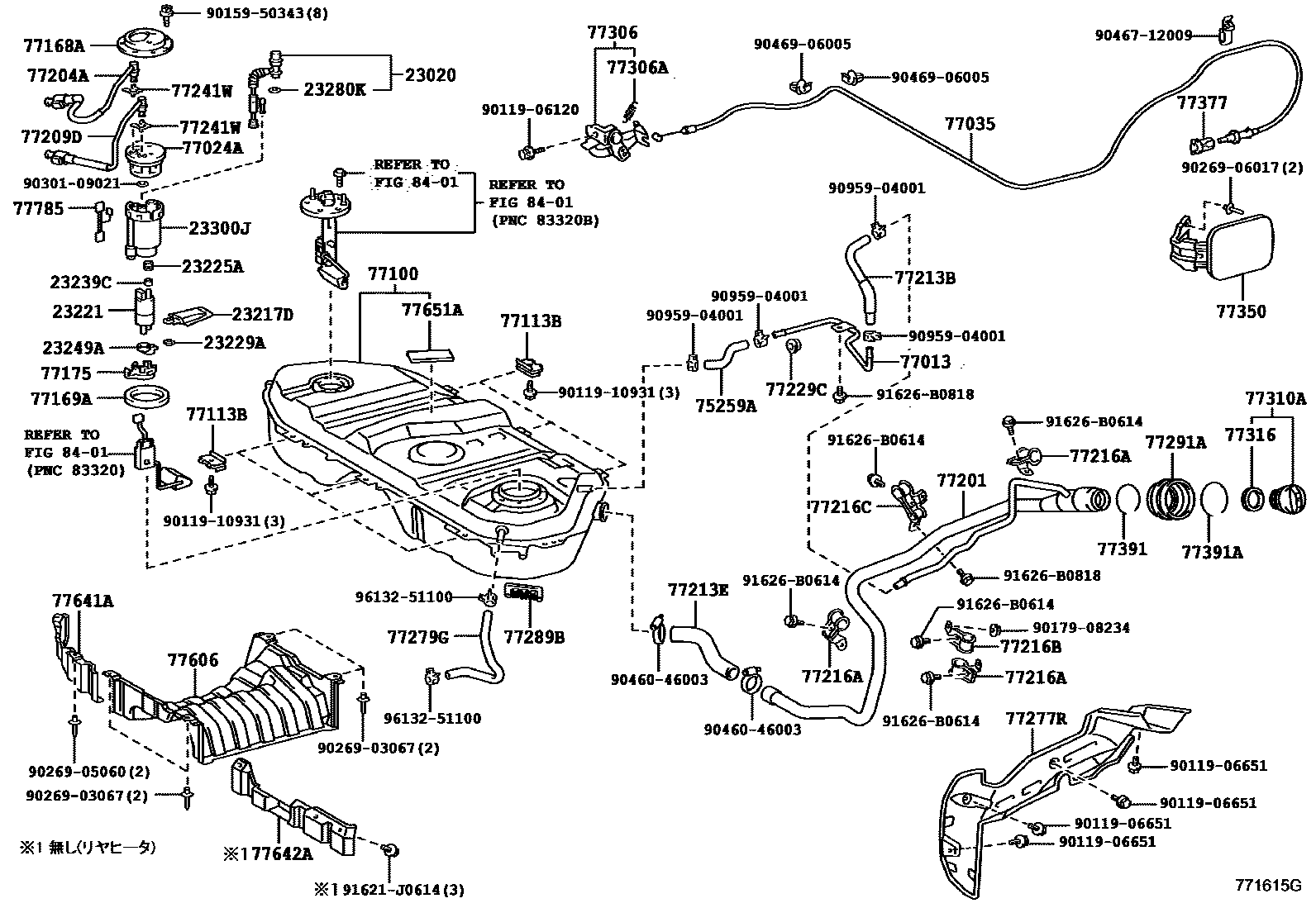

FUEL TANK & TUBE
23020REGULATOR ASSY, FUEL PRESSURE W/JET PUMP
23225ASPACER, FUEL PUMP
23229ACLIP(FOR FUEL PUMP FILTER)
23239CSEAL, FUEL PUMP FILTER
23249ARUBBER, CUSHION(FOR FUEL PUMP)
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
23300JFILTER ASSY, FUEL
75259AHOSE, FUEL
77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77024APLATE SUB-ASSY, FUEL SUCTION
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77113BPLATE, FUEL TANK SIDE
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77201PIPE SUB-ASSY, FUEL TANK INLET
77204ATUBE, FUEL TANK RETURN
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77213EHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2
77216CSUPPORT, FUEL TANK FILLER PIPE NO.3
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77277RPROTECTOR, FUEL TANK FILLER PIPE
77279GHOSE, FUEL, NO.2
77289BCLAMP, FUEL TUBE, NO.3
77291ASHIELD, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306ASPRING, FUEL LID OPEN LEVER
77316GASKET, FUEL TANK CAP
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77651ACUSHION, FUEL TANK, NO.1
77785HARNESS, FUEL PUMP
8401
9011906120
main90119-06120
9011906651
main90119-06651
9011910931
main90119-10931
9015950343
main90159-50343
9017908234
main90179-08234
9026903067
main90269-03067
9026905060
main90269-05060
9026906017
main90269-06017
9030109021
main90301-09021
9046046003
main90460-46003
9046712009
main90467-12009
9046906005
main90469-06005
9095904001
main90959-04001
91621J0614
main91621-J0614
91626B0614
main91626-B0614
91626B0818
main91626-B0818
9613251100
main96132-51100
63 parts on this diagram · 4 diagrams in section
