EPC Data

REAR SEAT & SEAT TRACK

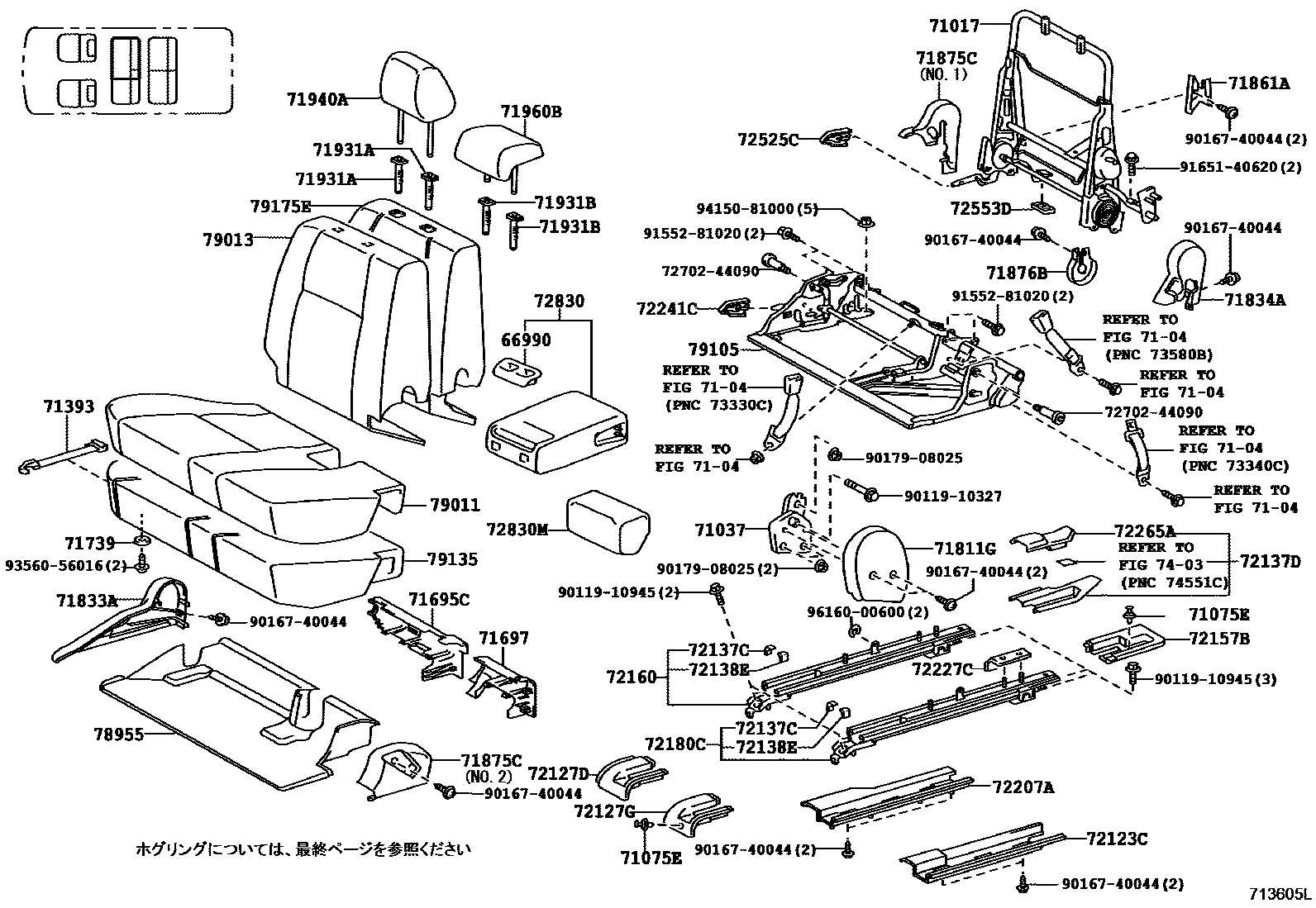

Parts diagram
66990HOLDER ASSY, CUP
main66991-28040-E1i200409-200705
GREGE,TRIM4#
main66991-28040-E3i200909-201801
GREGE,TRIM4#
main66991-28040-B5i201310-201801
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-44050i200409-200705
main71017-44060i200409-200705
main71017-44070i200705-200909
main71017-44080i200909-201206
main71017-44100i201206
main71017-44110i201206
71037HINGE SUB-ASSY, CENTER SEATBACK, RH
main71037-68010i200909
7104
71075ECLIP(FOR REAR SEAT)
main90467-07191-B2×4supersedes 90467-07191-B2i200909-201801
DK.GRAY,TRIM1#
main90467-07191-E1×4i200409-200705
main90467-07191-E2×4i200705-200909
71393BAND, REAR SEAT CUSHION
main71393-44010-C0×2i200409-200909
BLACK,TRIM1#
main71393-44010-E0×2i200409-200705
FAWN,TRIM4#
main71393-44010-E1×2i200705-200909
GREGE,TRIM4#
71695CPROTECTOR, REAR SEAT, NO.1
main71695-44020-B0i200909-201801
DK.GRAY,TRIM1#
main71695-44020-E0i200409-200705
FAWN,TRIM4#
main71695-44020-E1i200909-201106
GREGE,TRIM4#
71697PROTECTOR, REAR SEATBACK EDGE
main71697-44080-B0i200909-201801
DK.GRAY,TRIM1#
main71697-44080-E0i200409-200705
FAWN,TRIM4#
main71697-44080-E1i200909-201106
GREGE,TRIM4#
71739CUSHION, SEAT SUPPORT
main71739-12020×4i200909
main71739-44010×4i200409-200805
71811GSHIELD, REAR SEAT CUSHION, RH
main71861-68030-E0i200409-200705
FAWN,TRIM4#
main71861-68030-B0i200512-200705
71833ACOVER, REAR SEAT RECLINING, NO.1 RH
main71833-44040-B0i200409-200909
DK.GRAY,TRIM1#
main71833-44040-E0i200409-200705
FAWN,TRIM4#
main71833-44040-E1i200909-201801
GREGE,TRIM4#
71834ACOVER, REAR SEAT RECLINING, NO.1 LH
main71834-44040-B0i200409-200709
DK.GRAY,TRIM1#
main71834-44040-E0i200409-200705
FAWN,TRIM4#
main71834-44040-E1i200705-200709
GREGE,TRIM4#
main71834-44041-B0i200710-200909
DK.GRAY,TRIM1#
main71834-44041-E1i200710-200909
GREGE,TRIM4#
71861ASHIELD, REAR SEAT CUSHION, INNER RH
main71861-44080-B0i200409-200909
DK.GRAY,TRIM1#
main71861-44080-E0i200409-200705
FAWN,TRIM4#
main71861-44080-E1i200909-201801
GREGE,TRIM4#
71875CCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-44050-B0i200909-201801
main71875-44050-E0i200409-200705
main71875-44050-E1i200909-201106
main71875-44060-B0i200409-200909
main71875-44060-E0i200409-200705
main71875-44060-E1i200705-200909
71876BCOVER, RECLINING ADJUSTER INSIDE, LH
main71876-44060-B0i200409-200709
DK.GRAY,TRIM1#
main71876-44060-E0i200409-200705
FAWN,TRIM4#
main71876-44060-E1i200705-200709
GREGE,TRIM4#
main71876-44061-B0i200909-201801
DK.GRAY,TRIM1#
main71876-44061-E1i200710-200909
GREGE,TRIM4#
71931ASUPPORT, REAR SEAT HEADREST
main71930-44020-B0×2i200705-200909
main71930-44020-E0×2i200804-200909
main71930-47010-B2×2i200409-200704
main71930-47010-E0×2i200409-200704
main71931-47010-B2×2i200409-200909
sub71931-42020
main71931-47010-E0×2i200409-200705
sub71931-42020
main71931-47010-E4×2i200909-201106
sub71931-42020
71931BSUPPORT ASSY, REAR NO.1 SEAT HEADREST
main71930-44020-B0i200705-200909
main71930-44020-E0i200804-200909
main71930-47010-B2i200409-200704
main71930-47010-E0i200510-200704
main71931-47010-B2i200909-201801
sub71931-42020
main71931-47010-E0i200409-200705
sub71931-42020
main71931-47010-E4i200705-200909
sub71931-42020
71940AHEADREST ASSY, REAR SEAT
main71910-44460-B0×2i200409-200705
DK.GRAY,TRIM1#
sub71910-44461
main71910-44460-B1×2i200705-200909
DK.GRAY,TRIM1#
sub71910-44461
main71910-44460-E0×2i200510-200705
BEIGE,TRIM4#
sub71910-44461
main71910-44460-E1×2i200804-200909
GREGE,TRIM4#
sub71910-44461
main71910-44470-E0×2i200409-200705
BEIGE,TRIM4#
main71910-44520-E0×2i200705-200909
GREGE,TRIM4#
main71910-44540-E0×2supersedes 71910-44520-E0i200909-201106
sub71910-44541
main71910-44570-E2×2i201106-201206
GREGE,TRIM4#
main71910-44610-E1×2i201106-201206
GREGE,TRIM4#
main71910-44650-E0×2i201206-201801
GREGE,TRIM4#
main71910-44660-B0×2supersedes 71910-44650-B0i201604-201801
DK.GRAY,TRIM1#
main71910-44670-E0×2i201206-201801
GREGE,TRIM4#
main71910-44510-E0×2supersedes 71910-44450-E0i200608-200705
sub71910-44700
main71910-44560-B0×2supersedes 71910-44460-B1i201010-201106
sub71910-44561
main71910-44600-B1×2supersedes 71910-44570-B0i201106-201206
main71910-44680-C0×2i201112-201206
main71910-44690-C0×2i201310-201801
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-44020-B0i200409-200508
DK.GRAY,TRIM1#
sub71960-44021
main71960-44030-E0i200409-200705
BEIGE,TRIM4#
main71960-44060-E0i200705-200909
GREGE,TRIM4#
sub71960-44110
main71960-44070-E0i200705-200909
GREGE,TRIM4#
main71960-44080-B0i200705-200909
DK.GRAY,TRIM1#
main71960-44100-E0supersedes 71960-44110-E0i200909-201106
sub71960-44101
main71960-44130-E3i201106-201801
GREGE,TRIM4#
main71960-44140-B3i201106-201801
DK.GRAY,TRIM1#
main71960-44150-E2i201106-201801
GREGE,TRIM4#
main71960-44040-B0supersedes 71960-44021-B1i200512-200705
main71960-44040-E0i200512-200705
main71960-44050-E1supersedes 71960-44010-E0i200608-200705
sub71960-44051
main71960-44080-E0supersedes 71960-44021-E0i200804-200909
main71960-44090-E1i200909-201106
sub71960-44091
main71960-44120-B0supersedes 71960-44090-B1i201010-201106
sub71960-44121
main71960-44160-B0i201310-201801
72123CCOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72123-44050-B0i201206-201801
DK.GRAY,TRIM1#
main72123-44050-E0i201206-201801
GREGE,TRIM4#
main72123-44070-B0i200909-201206
DK.GRAY,TRIM1#
main72123-44070-E0i200409-200705
FAWN,TRIM4#
main72123-44070-E1i200909-201206
GREGE,TRIM4#
72127DCOVER, SEAT TRACK BRACKET, FRONT, RH
main72123-44060-B0supersedes 72123-44060-B0i200909-201801
DK.GRAY,TRIM1#
main72123-44060-E0i200409-200705
main72123-44060-E1i200705-200909
72127GCOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72127-44060-B0supersedes 72127-44060-B0i200909-201801
DK.GRAY,TRIM1#
main72127-44060-E0i200409-200705
main72127-44060-E1i200705-200909
72137CCOVER, SEAT TRACK INNER, RH
main72137-44080×4i200509-200909
72137DCOVER, REAR SEAT TRACK, RH
main72137-44090-B0supersedes 72137-44090-B0i200909-201801
DK.GRAY,TRIM1#
main72137-44090-E0i200409-200705
main72137-44090-E1i200909-201801
GREGE,TRIM4#
72138ECOVER, SEAT TRACK, INNER LH
main72138-44060×4i200509-200909
72157BCOVER, REAR SEAT TRACK BRACKET, INNER RH
main72157-44060-B0supersedes 72157-44060-B0i200909-201801
DK.GRAY,TRIM1#
main72157-44060-E0i200409-200705
main72157-44060-E1i200705-200909
72160TRACK ASSY, REAR SEAT, OUTER RH
main72160-44080i200409-200909
72180CTRACK ASSY, REAR SEAT, INNER RH
main72180-44040i200409-200909
main72180-44050i201206
72207APLATE, SEAT TRACK STOP RH
main72121-44010-B0i200409-200502
DK.GRAY,TRIM1#
main72121-44010-E0i200409-200502
FAWN,TRIM4#
main72121-44011-B0i200502-200909
DK.GRAY,TRIM1#
main72121-44011-E0i200502-200705
FAWN,TRIM4#
main72121-44011-E1i200909-201106
GREGE,TRIM4#
72227CBRACKET, SEAT TRACK, UPPER RR
main72227-44010i200806-200909
main72227-44020i201206
72241CLEVER, OUTER SEAT TRACK LOCK, RH
main72241-44020-B0i200909-201801
DK.GRAY,TRIM1#
main72241-44020-E0i200409-200705
FAWN,TRIM4#
main72241-44020-E1i200909-201801
GREGE,TRIM4#
72265ACOVER, SEAT TRACK UPPER RAIL, RH
main72265-44080-B0supersedes 72265-44080-B0i200909-201801
DK.GRAY,TRIM1#
main72265-44080-E0i200409-200705
main72265-44080-E1i200705-200909
72525CHANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH
main72525-44020-B0i200409-200909
DK.GRAY,TRIM1#
main72525-44020-E0i200409-200705
FAWN,TRIM4#
main72525-44020-E1i200804-200909
GREGE,TRIM4#
72553DCOVER, RECLINING PEDAL, RH
main72553-12040i200409-200909
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-44380-E0i200409-200705
BEIGE,TRIM4#
main72830-44410-B0i200512-200705
sub72830-44411
main72830-44410-E0i200512-200705
sub72830-44411
main72830-44430-E0i200608-200705
sub72830-44431
72830MARMREST ASSY, SEAT CENTER, RH
main72830-44390-E0i200409-200705
BEIGE,TRIM4#
main72830-44450-E0i200705-200909
GREGE,TRIM4#
main72830-44460-E0i200909-201106
sub72830-44461
main72830-44490-E1i201106-201309
GREGE,TRIM4#
main72830-44520-E0i201310-201604
GREGE,TRIM4#
main72830-44520-E1i201604-201801
GREGE,TRIM4#
main72830-44420-B0i200512-200705
main72830-44420-E0i200512-200705
main72830-44440-E0i200608-200705
sub72830-44441
main72830-44470-B0i200705-200909
main72830-44470-E0i200804-200909
main72830-44480-B0i201010-201106
sub72830-44481
main72830-44480-B1i201010-201106
sub72830-44481
main72830-44480-E0i200909-201106
sub72830-44481
main72830-44500-B0i201106-201604
main72830-44500-B2i201604-201801
main72830-44510-C0i201310-201801
7403
78955COVER, REAR SEAT UNDER TRAY RH
main78955-44010-B0i200909-201801
main78955-44010-E0i200409-200705
main78955-44010-E1i200909-201106
main78955-44020-B0i200409-200909
main78955-44020-E0i200409-200705
main78955-44020-E1i200705-200909
79011COVER SUB-ASSY, NO.1 SEAT CUSHION, RH
main79011-44700-B0i200409-200705
DK.GRAY,TRIM1#
sub79011-44701
main79011-44700-B1i200705-200909
DK.GRAY,TRIM1#
sub79011-44701
main79011-44700-E0i200510-200705
BEIGE,TRIM4#
sub79011-44701
main79011-44700-E1i200804-200909
GREGE,TRIM4#
sub79011-44701
main79011-44710-E0i200409-200705
BEIGE,TRIM4#
main79011-44740-E1i200705-200909
GREGE,TRIM4#
sub79011-44780
main79011-44750-E0i200705-200909
GREGE,TRIM4#
main79011-44760-E1i200909-201106
GREGE,TRIM4#
sub79011-44761
main79011-44770-E1supersedes 79011-44780-E0i200909-201106
sub79011-44771
main79011-44800-E2i201106-201801
GREGE,TRIM4#
main79011-44810-B3i201106-201310
DK.GRAY,TRIM1#
main79011-44810-B4i201310-201604
DK.GRAY,TRIM1#
main79011-44820-E2i201106-201801
GREGE,TRIM4#
main79011-44860-C0i201604-201801
BLACK,TRIM1#
main79011-44730-E1supersedes 79011-44690-E1i200608-200705
sub79011-44840
main79011-44790-B0supersedes 79011-44760-B1i201010-201106
sub79011-44791
main79011-44830-C0i201310-201801
79013COVER SUB-ASSY, NO.1 SEATBACK, RH
main79013-44770-B0i200409-200705
DK.GRAY,TRIM1#
main79013-44780-E0i200409-200705
BEIGE,TRIM4#
main79013-44820-E1i200705-200909
GREGE,TRIM4#
main79013-44830-B0i200705-200909
DK.GRAY,TRIM1#
sub79013-44831
main79013-44840-E0i200705-200909
GREGE,TRIM4#
sub79013-44841
main79013-44A00-E1supersedes 79013-44A20-E0i200909-201106
sub79013-44A01
main79013-44A40-E2i201106-201801
GREGE,TRIM4#
main79013-44A60-E2i201106-201801
GREGE,TRIM4#
main79013-44800-B0i200512-200705
sub79013-44801
main79013-44800-E0i200512-200705
sub79013-44801
main79013-44810-E1supersedes 79013-44760-E1i200608-200705
sub79013-44811
main79013-44850-B0i200804-200909
sub79013-44851
main79013-44850-E0i200804-200909
sub79013-44851
main79013-44A10-B1i200909-201106
sub79013-44A11
main79013-44A10-E1i200909-201106
sub79013-44A11
main79013-44A30-B0supersedes 79013-44890-B1i201010-201106
sub79013-44A31
main79013-44A70-B2supersedes 79013-44A50-B3i201106-201310
main79013-44A70-B3supersedes 79013-44A50-B4i201310-201604
main79013-44A80-C0i201310-201801
main79013-44B10-C0supersedes 79013-44B00-C0i201604-201801
79105LEG SUB-ASSY, NO.1 SEAT, RH
main79105-44030i200409-200705
main79105-44040i200909
79135PAD, NO.1 SEAT CUSHION
main79015-44010i200409-200909
79175EPAD, NO.1 SEATBACK, RH
main79175-44130i200409-200705
main79175-44140i200409-200705
main79175-44150i200909
main79175-44160i200705-200909
7270244090BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-44090
9011910327
main90119-10327
9011910945
main90119-10945
9016740044
main90167-40044
9017908025
main90179-08025
9155281020
main91552-81020
9165140620
main91651-40620
9356056016
main93560-56016
9415081000
main94150-81000
9616000600
main96160-00600

53 parts on this diagram · 6 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
