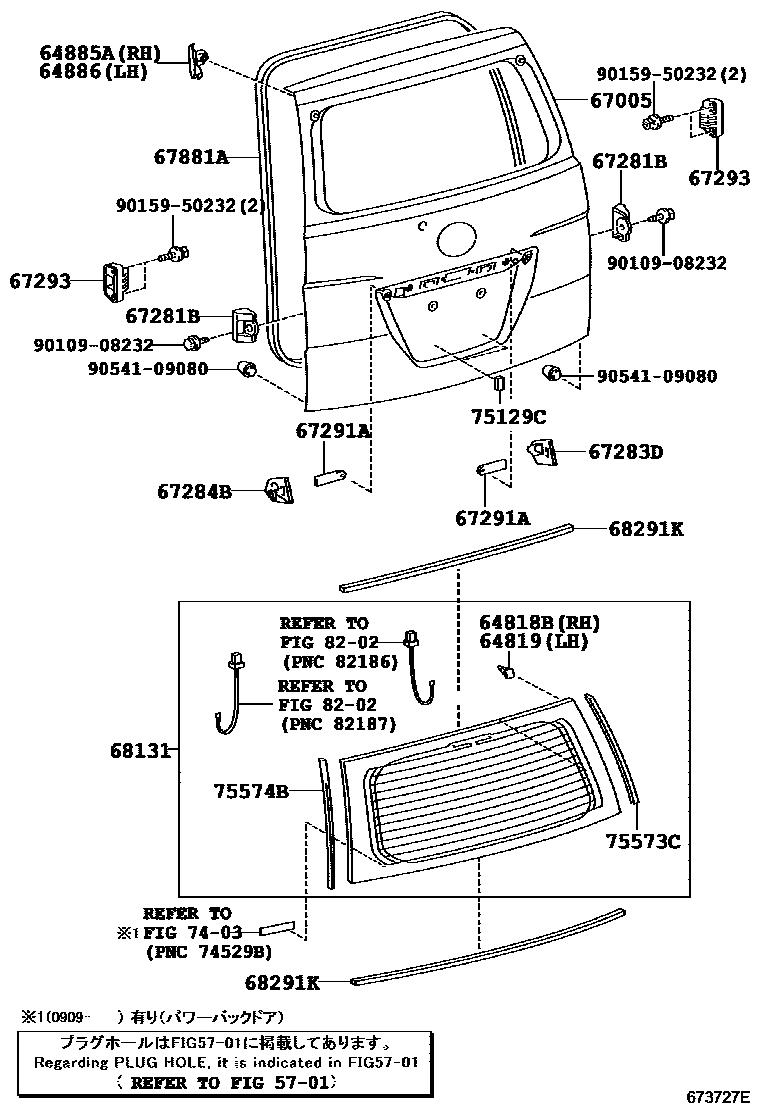

BACK DOOR PANEL & GLASS
5701
64818BSPACER, BACK DOOR GLASS, NO.1
64819SPACER, BACK WINDOW GLASS, NO.2
64885ACHANNEL, BACK WINDOW GLASS, RH
64886CHANNEL, BACK WINDOW GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
67281BSTOPPER, BACK DOOR, LOWER
67283DPLATE, BACK DOOR LOWER STOPPER, RH
67284BPLATE, BACK DOOR LOWER STOPPER, LH
67291ABRACKET, BACK DOOR STOPPER
67293CUSHION, BACK DOOR LOWER STOPPER
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
7403
75129CCUSHION, REAR LICENCE PLATE
75573CMOULDING, BACK WINDOW, OUTSIDE
8202
9010908232
main90109-08232
9015950232
main90159-50232
9054109080
main90541-09080
22 parts on this diagram · 2 diagrams in section
