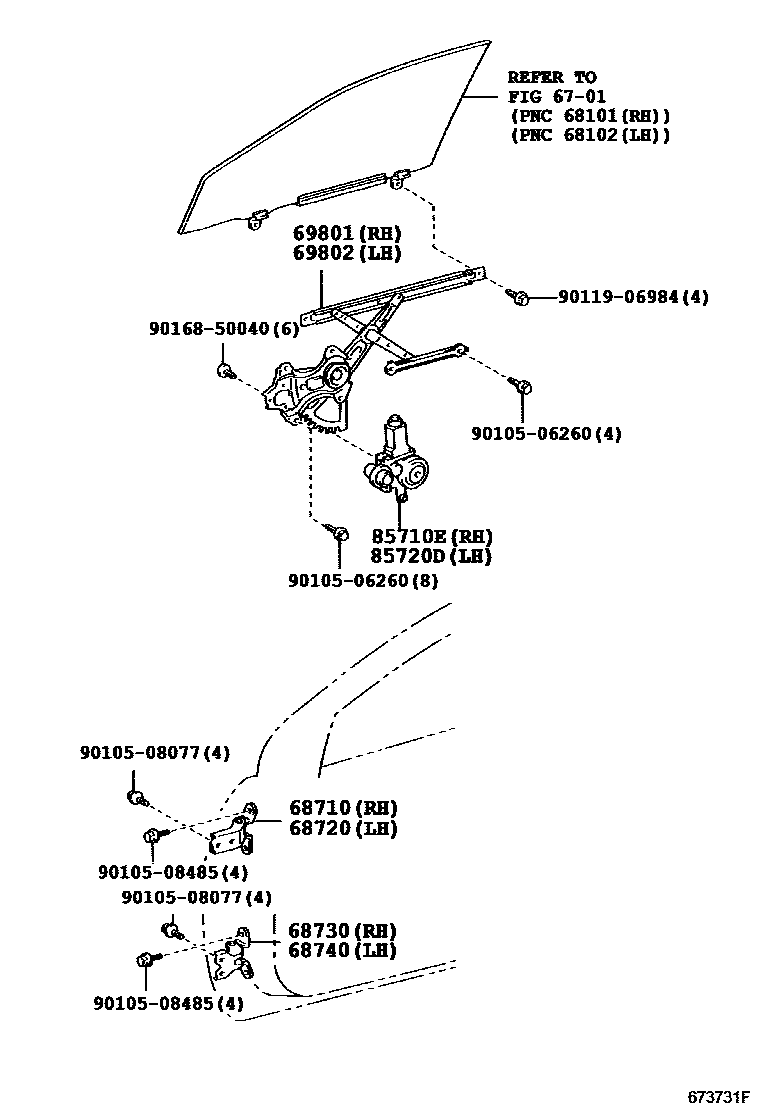

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iANM1#,ZNM10200409-200610

main68710-12151iANM1#,ZNM10200610-201801

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150iANM1#,ZNM10200409-200610

main68720-12151iANM1#,ZNM10200610-201801

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-33020iANM1#,ZNM10200409-200610

main68730-33021iANM1#,ZNM10200610-201801

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-33020iANM1#,ZNM10200409-200610

main68740-33021iANM1#,ZNM10200610-201801

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-44030iANM1#,ZNM10200409-200909

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-44030iANM1#,ZNM10200409-200909

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-58010iANM1#,ZNM10200409-200909

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-58010iANM1#,ZNM10200409-200909

9010506260

main90105-06260

9010508077

main90105-08077

9010508485

main90105-08485

9011906984

main90119-06984

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
